RB-473-C02G
2

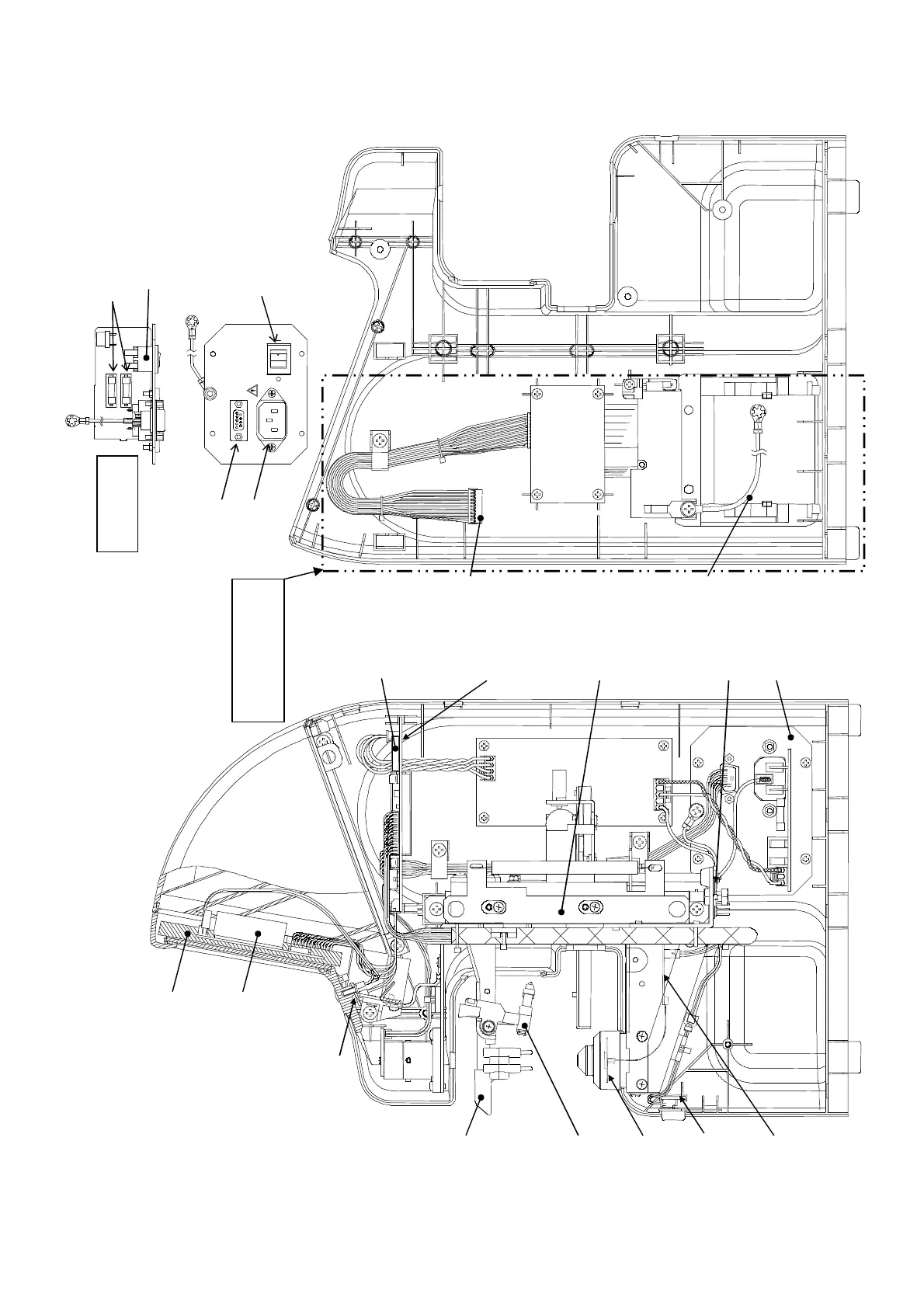

2. Exploded View
250V 3A (UL/CSA)
T2A L 250V ( EUROPE)
250V 3A (UL/CSA)
T2A L 250V ( EUROPE)
Terminal Assy
To FG attachment
To FG attachment
Power switch
Power switch
Fuse x 2
EUROPE:T2A L 250V
UL/CSA:250V 3A
Printer I/F board
Printer
Connected to *
FG harness
(green
/yellow)
*
Memory/Add
switch board
Terminal Assy
FG attachment
Control
board
Inverter board
Operation
switch board
Lens hold
er
Marking
CMOS
camera board
E
2
PROM
board
Optical
unit Assy
Printer related parts
*SLM
-
5000 Only
