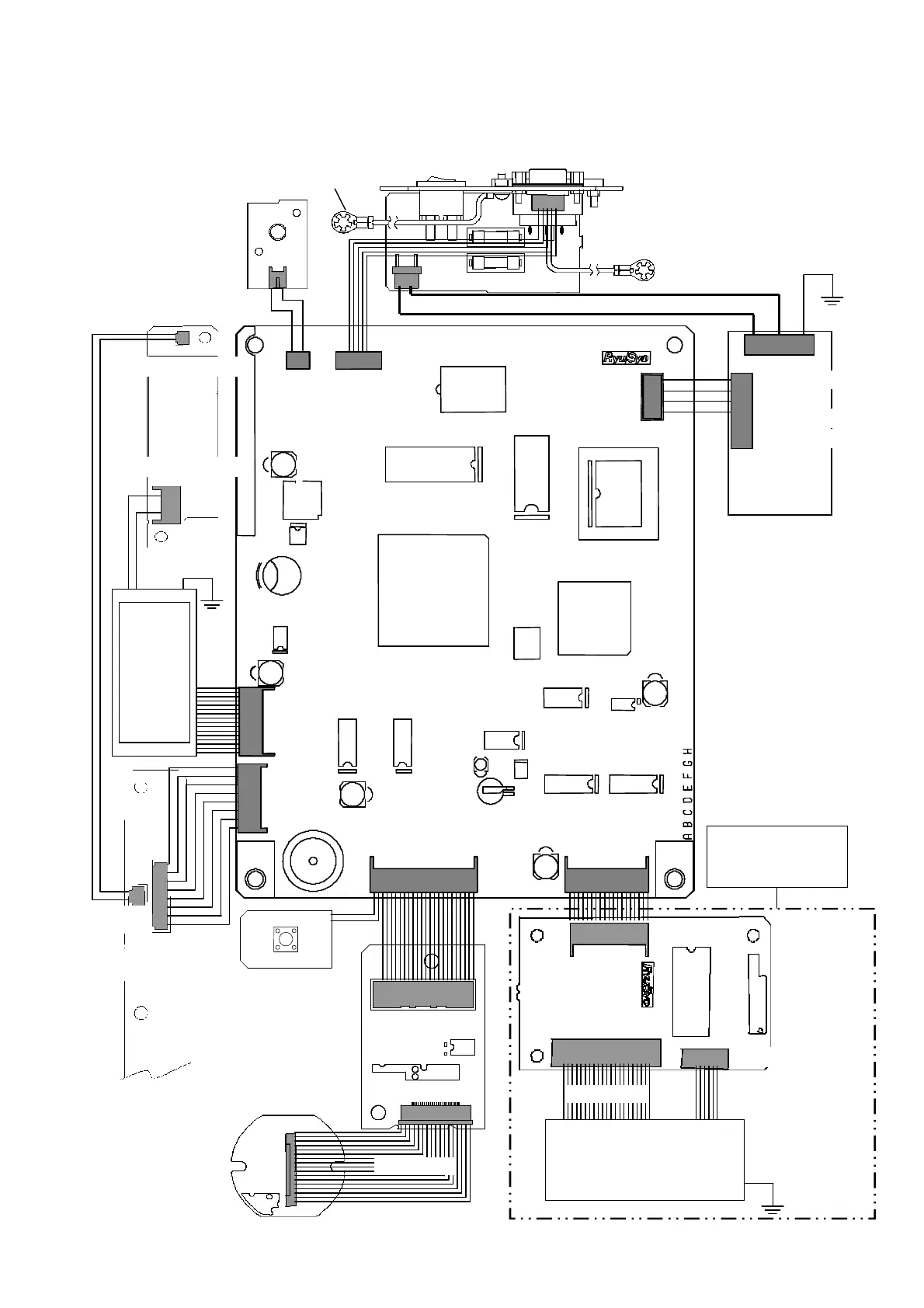

3. Wiring Diagram
FG
(green/yellow)
CN402, 20 pins
CN404, 26 pins
CN403, 8 pins
CN501, 16 pins
CN405, 2 pins
CN301, 5 pins
CN401, 4 pins
Illmination circuit
board ASSY
E
2
PROM board
CN202, 24 pins
CN201, 24 pins
Memory switch
board
CMOS camera board
LCD
CN201, 8 pins
CN202, 2 pins
Operation switch board
Inverter
board
CN301, 2 pins
CN302, 2 pins
Control board
Terminal board
RS-232C
Switching
power supply
CN2, 4 pins
CN1, 5pin
1 3 5
L (brown)
N (light blue)
1,3
FG (green/yellow)
1
2
3
4
GND (brown)
GND (red)
+5V (orange)
+5V (yellow)
Printer I/F board
CN101, 20pins
CN103, 20 pins
CN102, 9 pins
Flat
cable
Flat c
able
Printer
FG
(green/yellow)
FG
(green/yellow)
FG(green/yellow)
Printer related parts
*SLM-5000 Only
【SLM-5000: To SN/Y74763N】
【SLM-4000: To SN/Y74040A】
