Shin-Nippon SLM-5000 Maintenance Manual


RB-473-C02G
4
FG
(green/yellow)

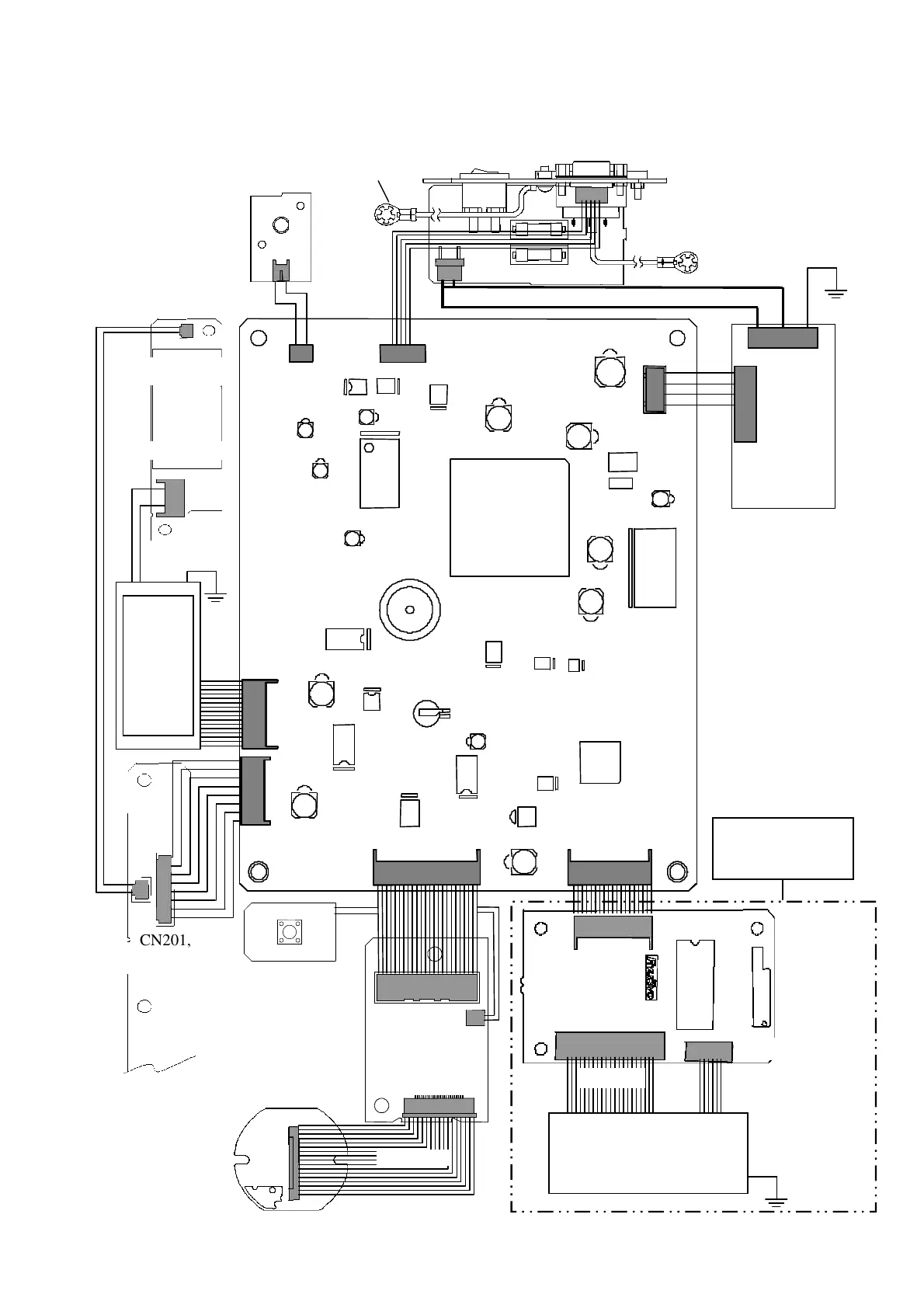

CN806,20pin
CN701,30pin
CN703,8pin
CN903,16pin
CN804,2pin
CN601,5pin
CN501,4pin
Illmination circuit
board ASSY
E
2
PROM board
CN2,30pin
CN3,20pin
Memory switch
board
CMOS camera board
LCD
CN201,8pin
CN202,2pin
Operation switch board
Inverter
board
Control board
Terminal board
RS-232C
ｽｲｯﾁﾝｸﾞ電源
CN2,4pin
CN1,5pi
n
1 3 5
L (brown)
N (light blu
e)
1,3
FG (green/yellow)
１
２
３
４
GND(茶)
GND(赤)
+5V(橙)
+5V(黄)
Printer I/F board
CN101,20pin
CN103,20pin
CN102,9pin
プリンター
FG
(green/yellow)
FG (green/yellow)
LCD
CN301,2pin
CN2,4 pin
CN1,5pin
1 3 5
1,3
1
2
3
4
GND (brown)
GND (red)
+5V (orange)
)
+5V (yellow)
CN102,9pin
Printer
FG
(green/yellow)
Switching
power supply
CN302,2pin
Flat
cable
Flat cable
CN4,2pin
Printer related parts
*SLM-5000 Only
【SLM-5000: From SN/Z74764N】
【SLM-4000: From SN/Z74041A】
