Shin-Nippon SLM-5000 Maintenance Manual


RB-473-C02G
5

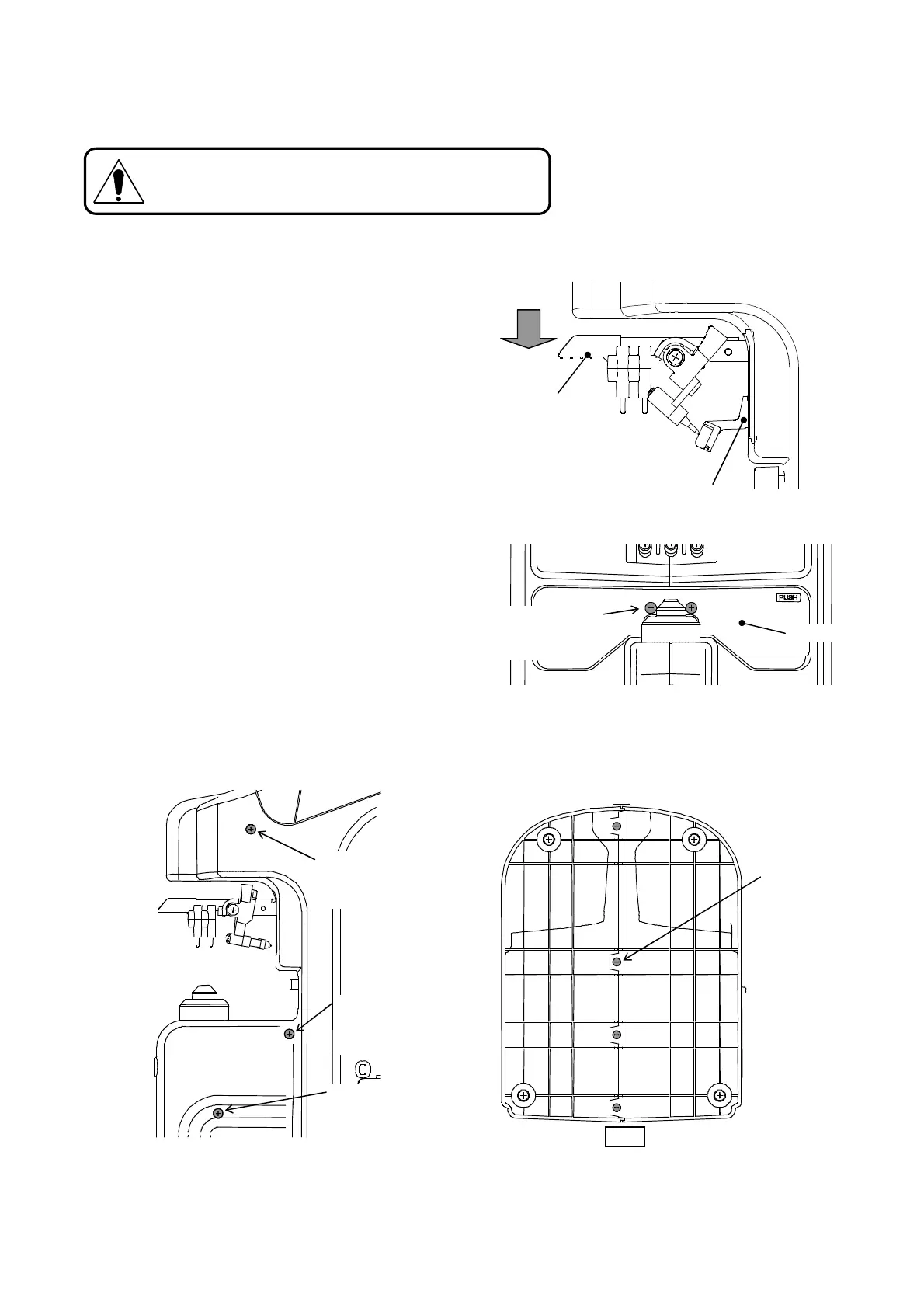

4. Assembly/disassembly of exterior features
4.1. Ink tank holder（※Inkwell specification only）
・Lower the lens holder. Unscrew the screw securing
the ink tank holder from the front, and remove the
  ink tank holder.
4.2. Lens plate
・Unscrew two screws securing the lens plate. (M3 x
L10 binding screws, black)
4.3. Cases
・Remove eight (7) screws securing right and left cases.
Always cut the power and disconnect the power cord
before disassembling the instrument.
Lens plate
Two screws
(Binding
screws,
black, M3 x L10)
Screw:
tapping screw (white),
a nominal dia.: 3, L10
Screw
: tapping screw
(white)
a nominal dia.: 3, L10
Screw:
M3  L8 (white),
in both sides
Four screws,
SUS304
M3  L8
Base
Lens holder
Ink tank holder
