1. 請依本機配件盒內電件圖所附之正
確桌板尺寸裁製圖、裁製桌板。
2. 桌板厚度約 50mm。
3. 直驅微型小馬達之機頭與桌板之安
裝固定方式，請參照(圖1)之安裝注
意事項1、2點。
4. 直驅微型小馬達機器之桌板、腳
架、電腦控制策及其他相關配件之
安裝位置示意圖，請參考(圖2)。
A 安裝：
1. Before installing machine, please
refer to Table Cut-Out Drawing.
To cut the table out in correctly.
2. The table thickness is 50mm.
3. Please refer to (Fig. 1) and the Remark
1 & 2 for installing the "Directly
Driving Type Mini-Servo Motor "
machine head and table.

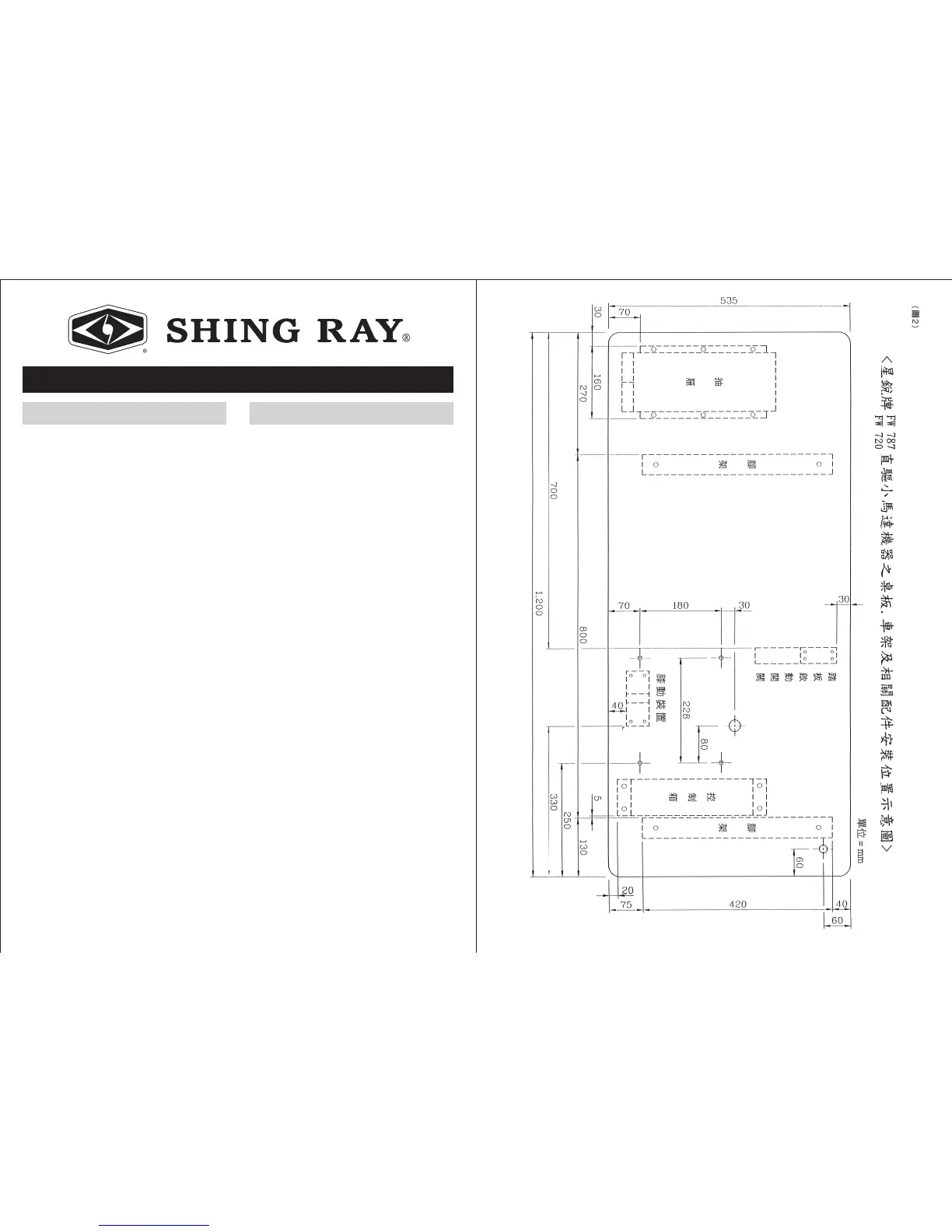

4. Please refer to the Installation Schematic
Drawing (Fig.2) for installing the
"Directly Driving Type Mini-Servo
Motor" machine head, foot stand,
control box and accessories.
Remark :
For security reason, We are warning
all of users that please always
install the grounding wire to avoid
the Static Electricity﹒
A. INSTALLATION :
