23(83)

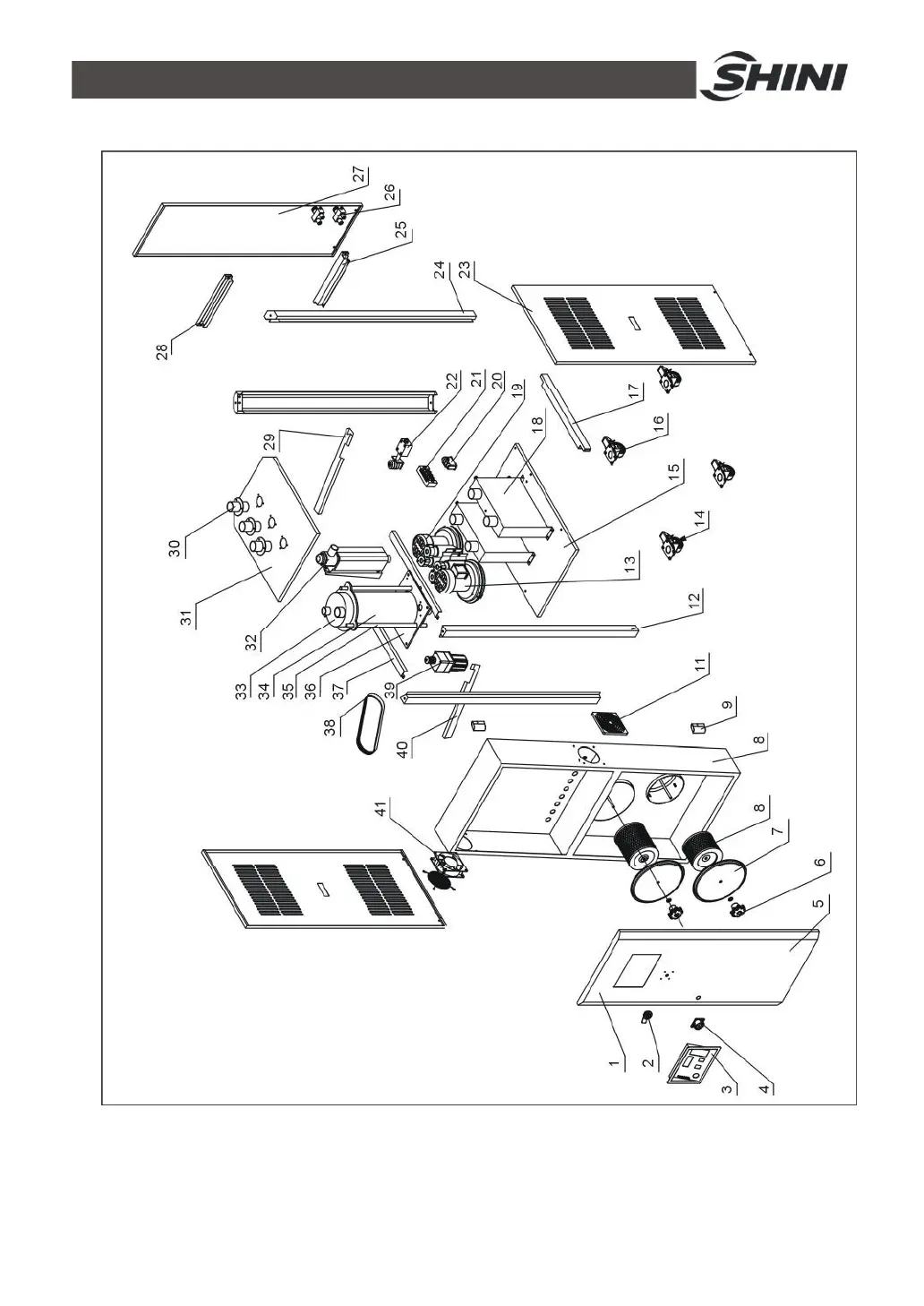

2.6.2 Assembly Drawing (SD-40H~700H)
Remarks: Please refer to material list 2.6.3 for specific explanation of the Arabic numbers in
parts drawing.
Picture 2-5：Assembly Drawing (SD-40H~700H)
