76(83)
7) Connect signal wires of the transmitter and power lines of dew-point monitor
with the according terminals.
Connet contact No.1 and No.2 with power, supply is 220VAC.
Contact No.3, No.4 and No.5 are idle.
Connect contact No.6, No.7 and No.8 with the signal of transmitter. (C-
Connects contact No.6, C+ connects contact No.7 and wire No.9 connects
contact No.8.
Transmitter conection (White and blue wire connect wire No9, black wire
connect C- and gray wire connect C+)

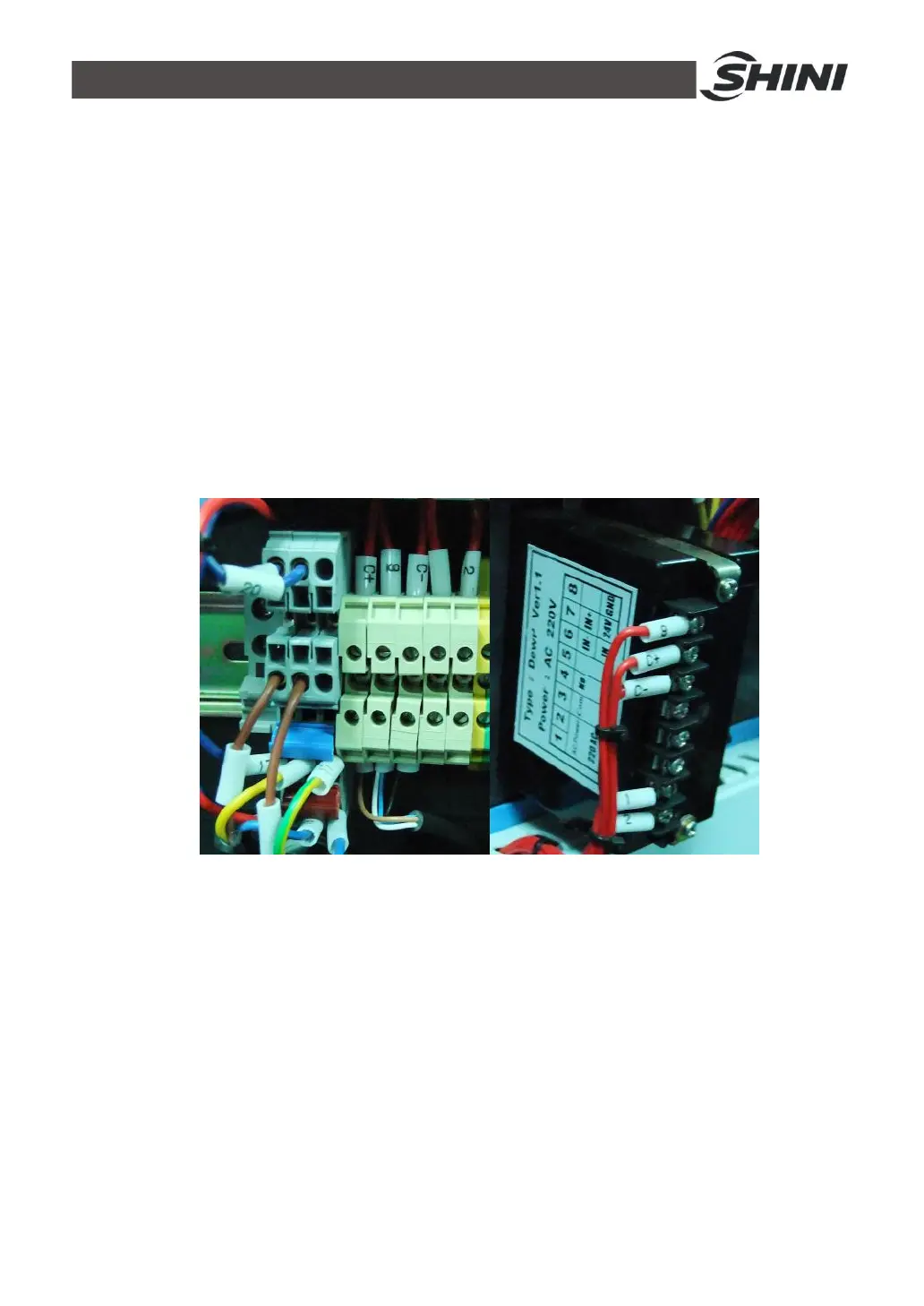

Picture 4-17Connection of Dew-point Monitor
