67(111)

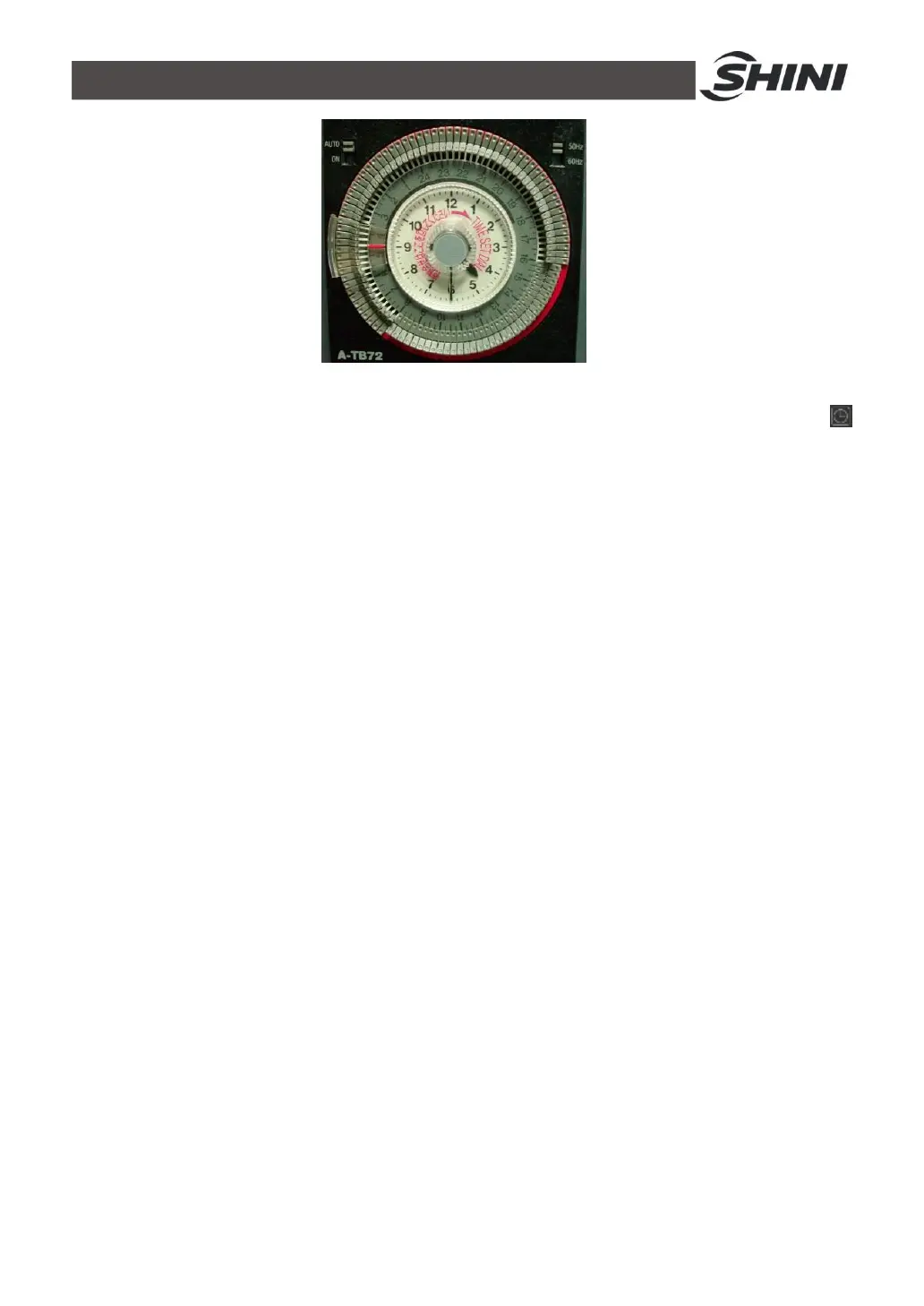

Pic. 18-6：Timer
1. Under the condition that all the switches turned on, turn on the timer switch .
2. Take down the transparent cover of the timer, push the little gray switch at left
conner on top of the timer to “Auto” status. Set the pressure electrical
frequency at top right conner of timer to current customer’s frequency.
3. Current time setting. As the picture 6-6, rotate the “TIME SET DIAL” knob at
middle of the timer clockwise to set current time. In the middle is 12-hour
white circle dial, the outside is 24-hour gray circle dial. Please pay special
attention to distinguish them. As above picture, it set time is half past four in
the morning, just the 4:30 am.
4. Requirement drying hour setting. Press timer’s outer teech down to the inner
circle. The pressing range is the drying hour from beginning to the ending. As
above picture, when it reaches 8 o’clock, the machine starts work; till 4
o’clock in the afternoon, the machine stops. Everyday repeat the circulation.
18.3 Installation of Air-Exhaust Cyclone Dust
Collector/Air-Exhaust Filter
If the materials contain dust or to avoid the dust-contain air exhausted by dryer
polluting the workshop’s environment. Option with air-exhaust cyclone dust collector
HCF or air-exhaust filter ADC can filter the exhausted air from the dryer. HCF can
reach filter efficiency of 80% and ADC can reach filter efficiency of 99%.
Both HCF/ADC are installed on air-exhaust elbow of the dryer. Point it to the installed
holes then tighten up the screws, use rubber ring to seal the combined place.
