68(111)

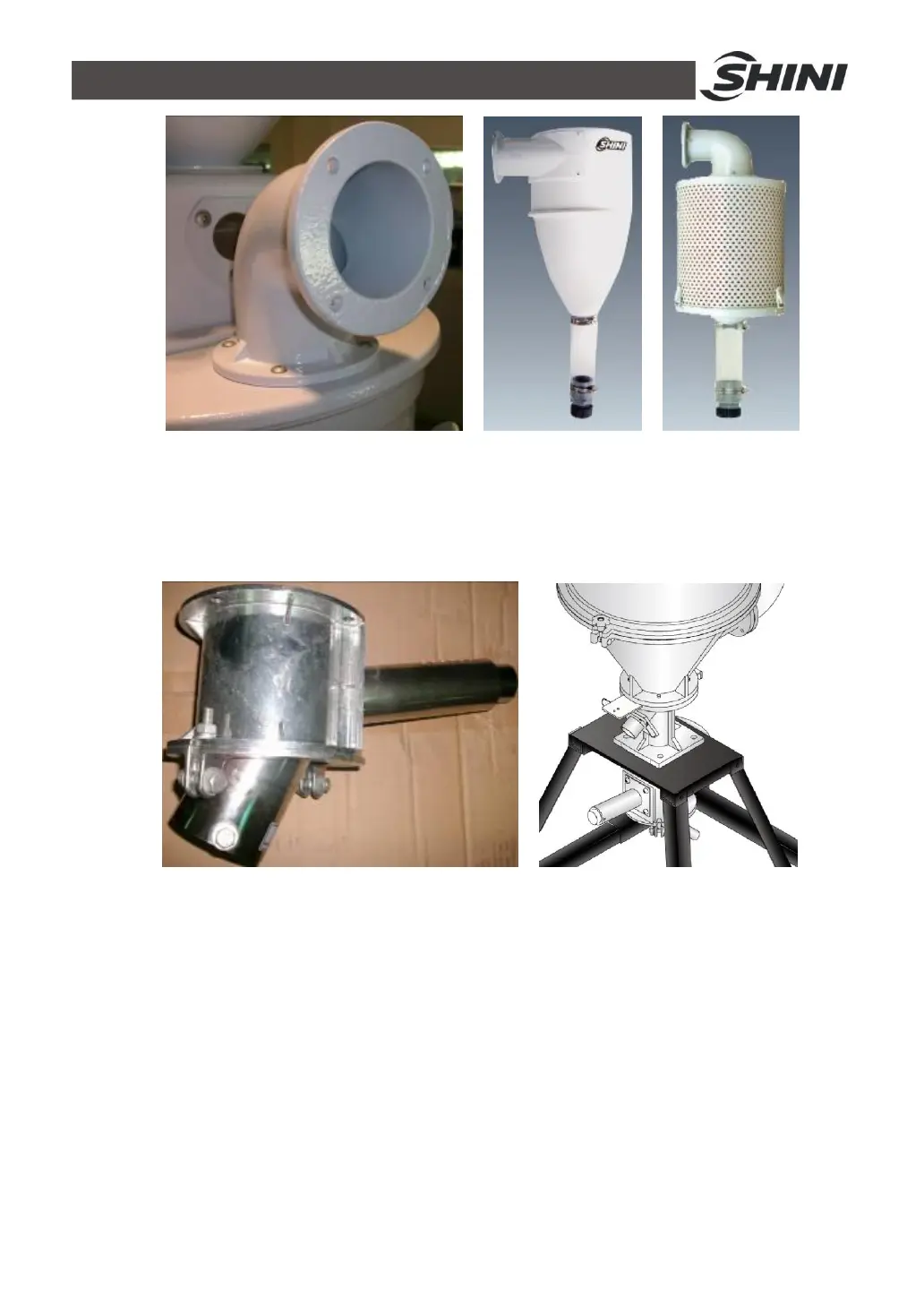

Pic. 18-7： Left : Air-exhaust elbow of dryer
Middle : Air-exhaust cyclone dust collector
Right: Air-exhaust filter
18.4 Suction Box Installation
Pic. 18-8：European suction box
When SHD is mounted on the floor stand suction box should be equipped. To convey
the dried plastic material conveniently. The installation of suction box is simple. Install
them at bottom of the hopper, point to the holes and tighten up the screws.
