4. INTERCONNECTION VM-5S
-9-
4-2 NON-INTRINSIC SAFETY EXPLOSION-PROOF CONSTRUCTION

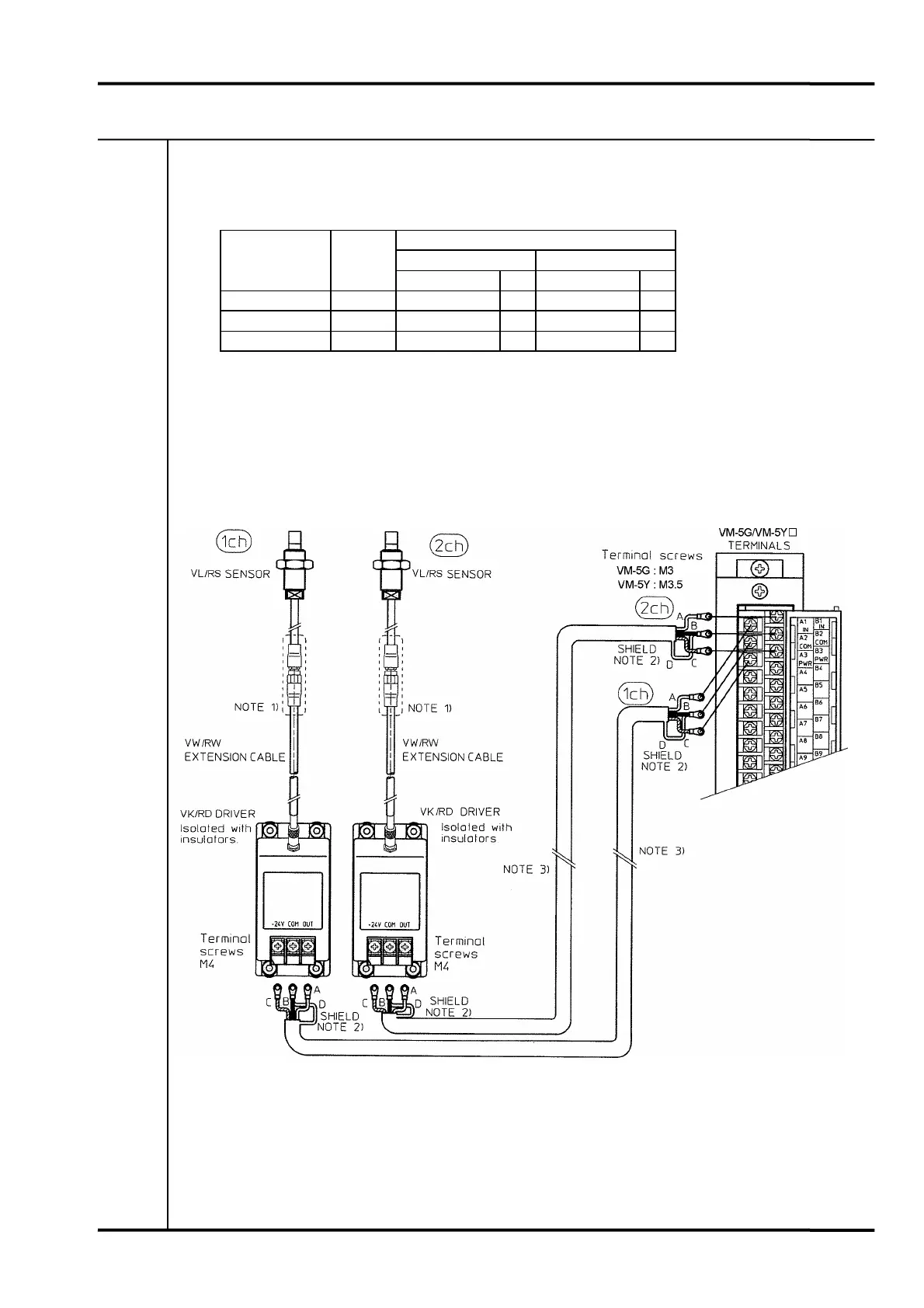

4-2-1 MODEL VK, MODEL RD AND VM-5G OR VM-5Y1,2,3
Connected terminals
CH1 CH2
Signal name Wire no.
Terminal name No. Terminal name No.
Output A IN A1 IN B1
Common, Shield B, D COM A2 COM B2
Power C PWR A3 PWR B3
To Next Page
