6. DESCRIPTION OF PARTS VM-5S
-23-

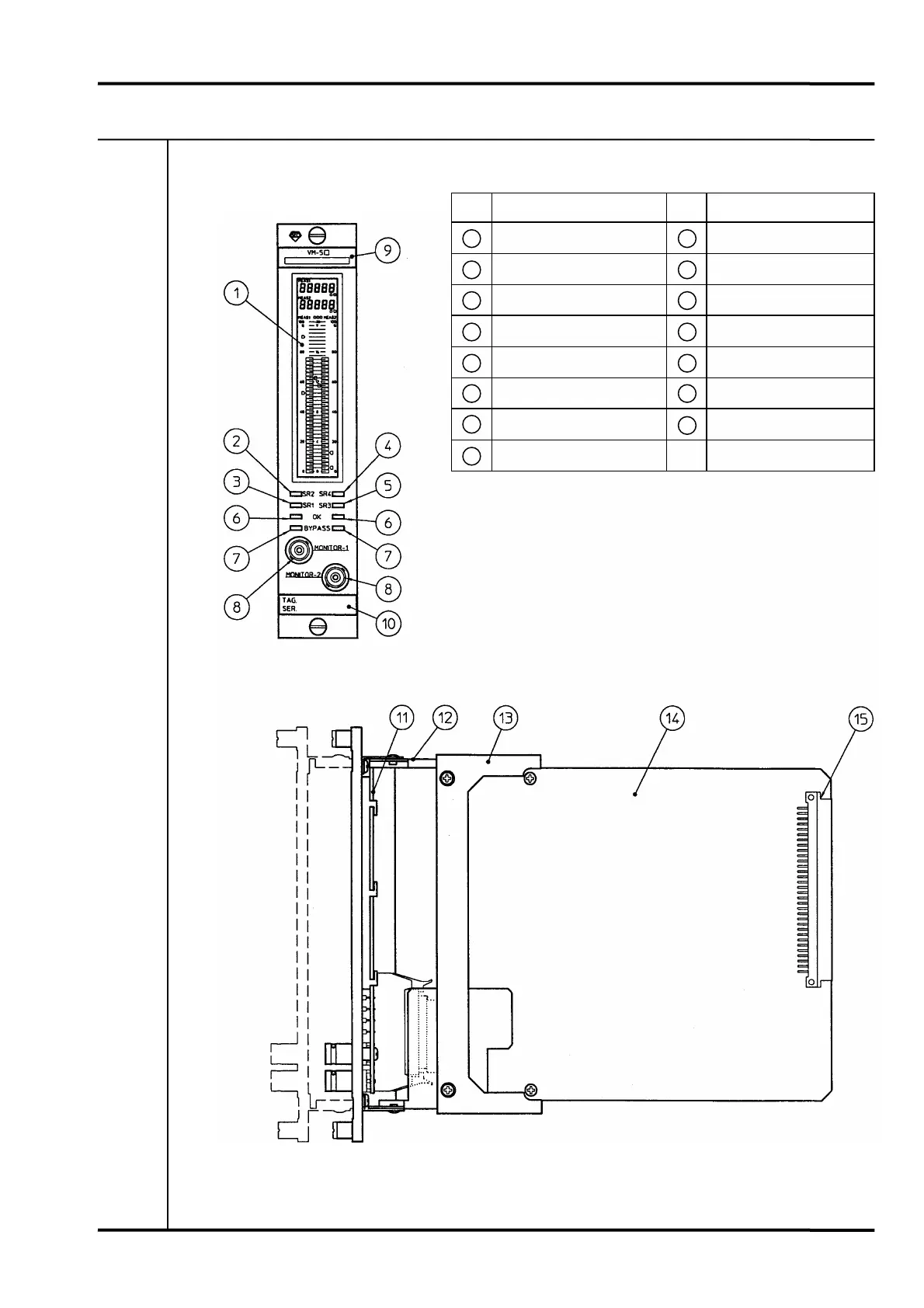

6-1 DESCRIPTION OF FRONT PANEL/SIDE VIEW
No. Name No. Name
1 LCD display 9 Name plate
2 Speed relay (2) lamp 10 Tag, Ser.No. plate
3 Speed relay (1) lamp 11 LCD board
4 Speed relay (4) lamp 12 Slide frame
5 Speed relay (3) lamp 13 Main board frame
6 OK lamp 14 Main board
7 BYPASS lamp 15 DIN connector (64pin)
8 Monitor output connector --- ---------------
