Shire Command post - Roof, Fascia, and Vent Installation

13

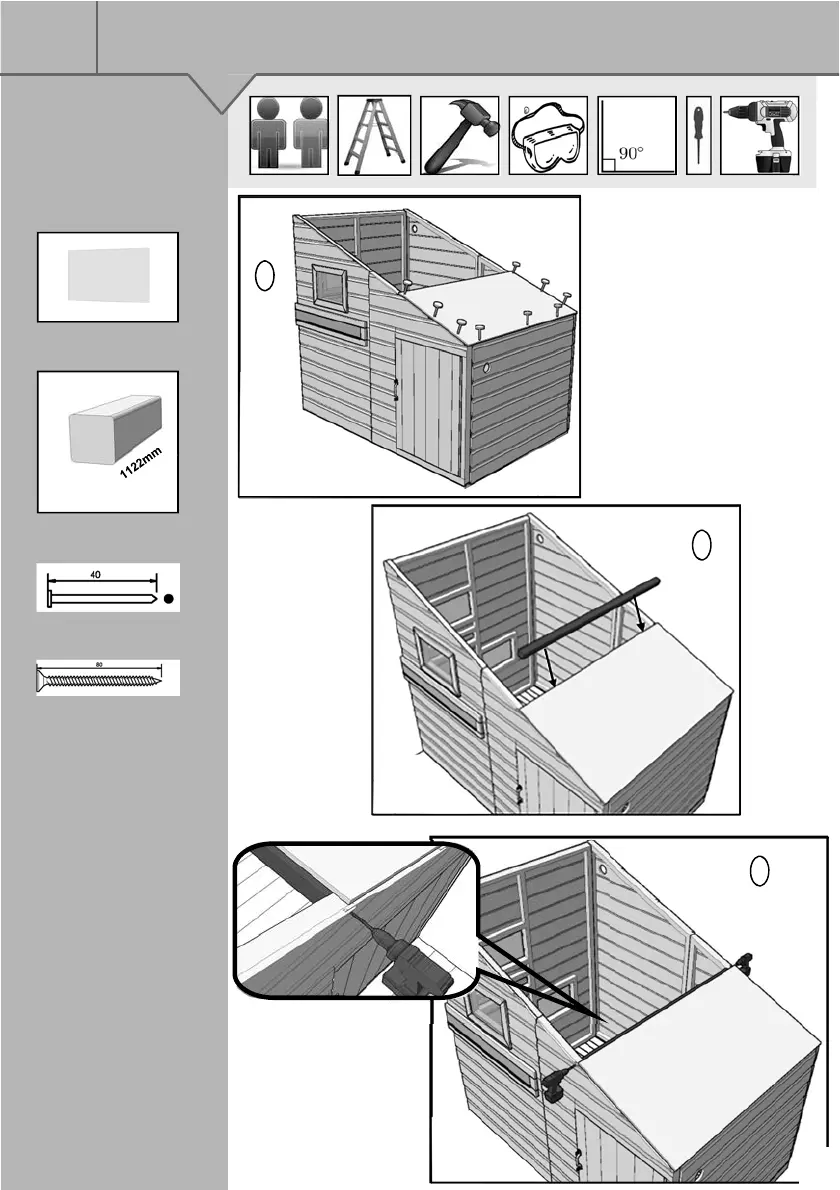

Align the roof panel “A0567” with the lower edge and the cladding and fix with 3 nails into each wall.
Position the roof bearer “A0568” half way under the edge of the roof panel that you have fitted ,
Drill a hole through the side panels at either end of the roof bearer and fix with 2x 80mm screws.
GB-IE
1
3
2
Roof panels
(A0567) x01
Roof bearers
(A0568)x01
34mm
34mm
40mm Nails
(A0025)x09
80mmScrew
(A0036) x02
5mm
27
