Shire Pixie - Step 05: Securing Window Inserts

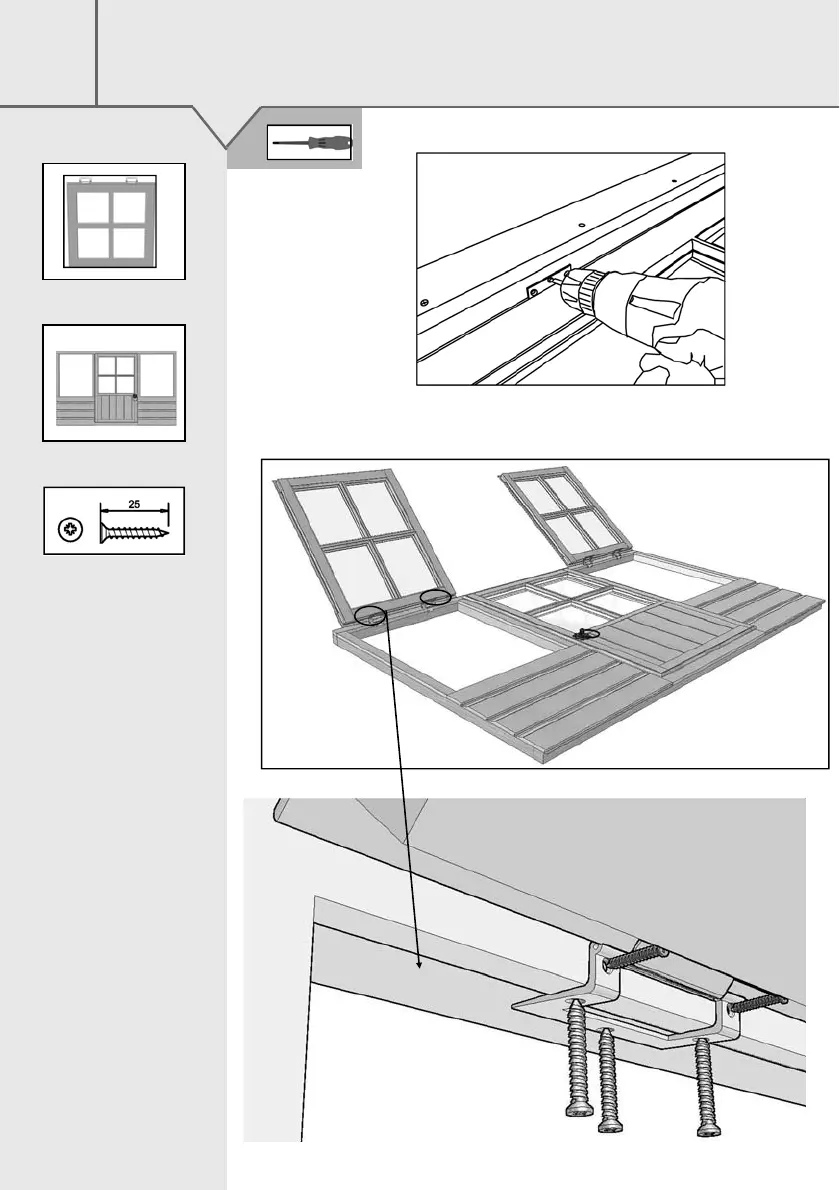

GB-IE Position the “B0017” window insert in the aperture and screw the inner screw holes that are just
visible on the inside first.
Turn over , open the window and insert the remaining screws.
05
25mmScrew
(A0032)x20
Door panel
(A3309)x01
Window insert
(B0017)x02
17
