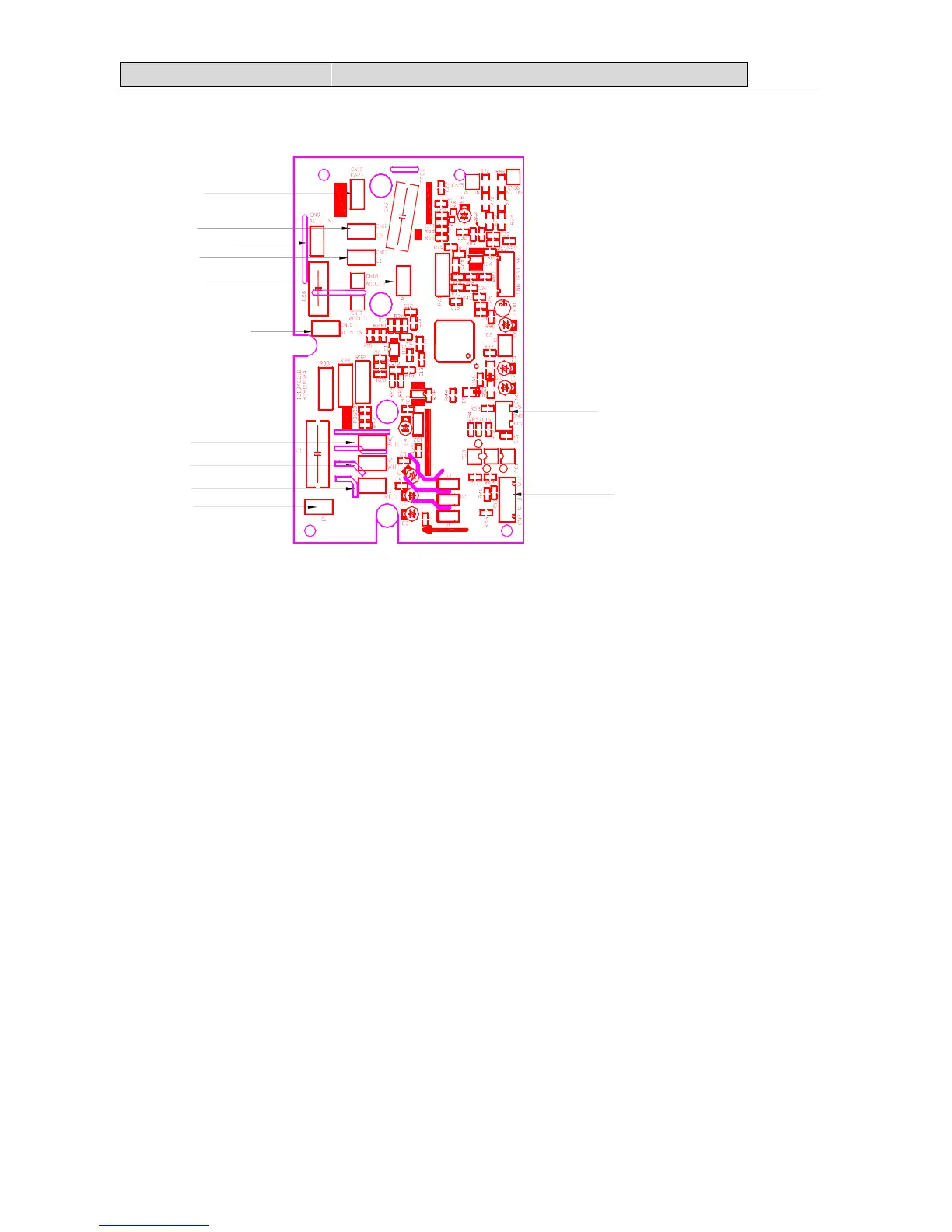

IPM Board（AMW2-16U4SGC1 AMW2-20U4SNC1）
To Compressor U
To Compressor V
To Compressor W
To Electrolytic
Capacitor +
To Electrolytic
Capacitor +
To Main Control
Board
IPM Power
To Electrolytic
Capacitor -
To PFC Inductor-2
To PFC Inductor-1
AC N IN
AC L IN
