Shop fox M1049 - Setup

-14-
D('+09\eZ_kfgCXk_\D]^%J`eZ\/&'0
J<KLG

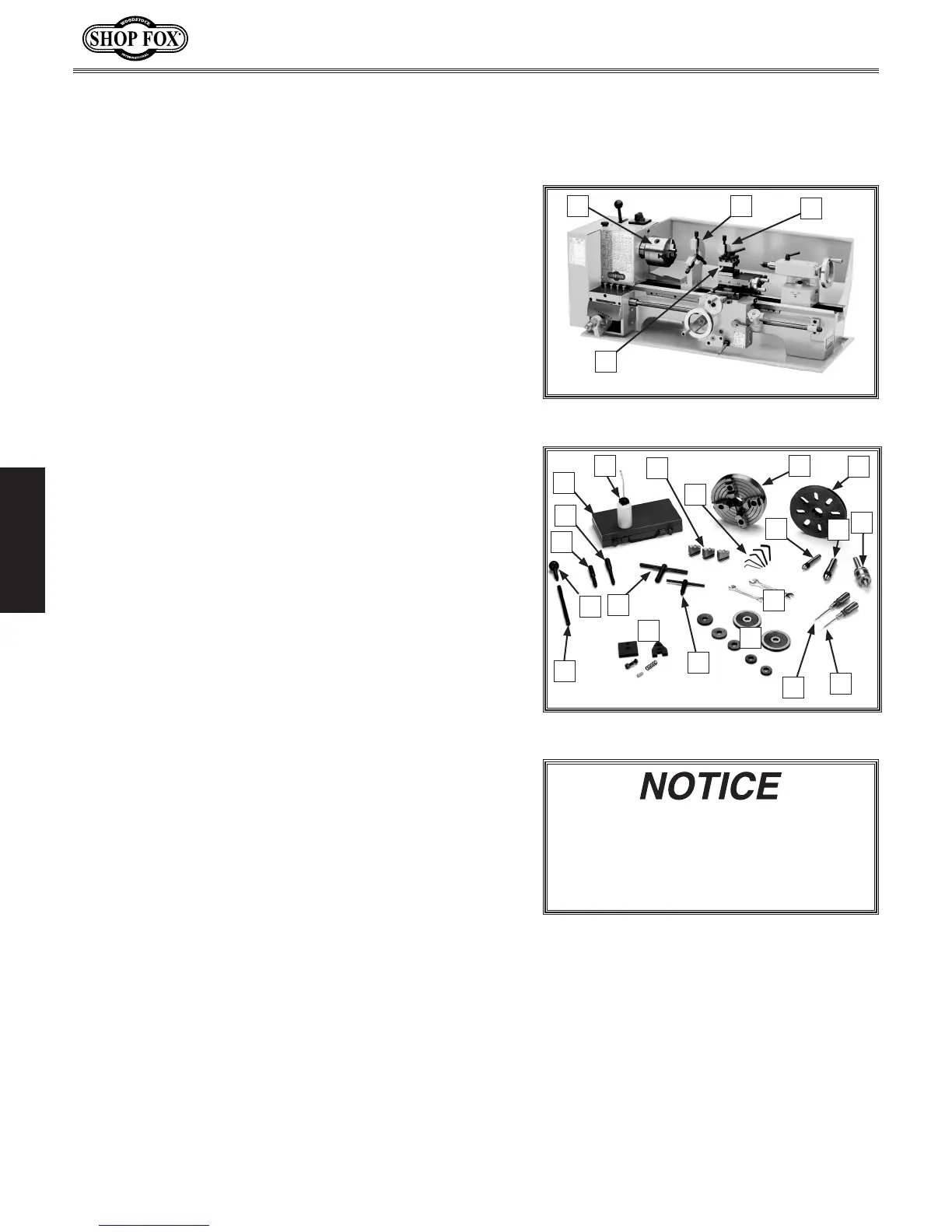

The following is an inventory of the accessories shipped
with your
E:AB8AJ
®
Model M1049 Benchtop lathe.
Installed Accessories (Figure 7) Qty
A. 4" Three-Jaw Chuck .......................................1
B. 4-Way Tool Post ............................................1
C. Compound Rest ............................................1
D. Follow Rest .................................................1
Packaged Accessories (Figure 8)
E. Toolbox ......................................................1
F. Oil Bottle ...................................................1
G. Three-Jaw Chuck Internal Jaws .........................3
H. Hex Wrench Set (6, 5, 4, 3, 2 mm) .................1 EA
I. 7" Four-Jaw Universal Chuck ............................1
J. 7.5" Faceplate..............................................1
K. Live Center MT#2 ..........................................1
L. Dead Center MT#3 .........................................1
M. Dead Center MT#2 .........................................1
N. Wrench Set (8/10, 12/14 mm) ......................1 EA
O. Spindle Lever ...............................................1
P. Chuck Lever ................................................1
Q. Male Knob M8-1.25 ........................................1
R. Four-Jaw Chuck Key .......................................1
S. Universal Tool Post Kit ....................................1
— Tool Clamp ...............................................1
— Base Plate ...............................................1
— Compression Spring.....................................1
— Hex Bolt M8-1.25 x 30 .................................1
— Special Hex Nut M8-1.25 ..............................1
— Flat Washer 8mm ......................................1
— Dowel Pin 8 x 20mm ...................................1
T. Three-Jaw Chuck Key .....................................1
U. #2 Phillips Screwdriver ...................................1
V. #2 Standard Screwdriver .................................1
W. Change Gear Set ...........................................1
— Change Gear (127-Tooth, Installed) .................1
— Change Gear (120-Tooth, Installed) .................1
— Change Gear (80-Tooth, One Installed) .............2
— Change Gear (60-Tooth, Installed) ...................1
— Change Gear (45-Tooth) ...............................1
— Change Gear (42-Tooth) ...............................1
— Change Gear (40-Tooth, Installed) ...................1
— Change Gear (36-Tooth) ...............................1
— Change Gear (30-Tooth) ...............................2
— Change Gear (28-Tooth, Installed) ...................1
Inventory
SETUP
=`^li\7% Installed accessories.
D
A
B
C
=`^li\8% Packaged accessories.
G
H
F
K
O
Q
P
P
U
R
E
V
M
L
N
W
S
I
J
T
@]XepgXikjXi\d`jj`e^#]`e[k_\gXik
eldY\i`ek_\YXZbf]k_`jdXelXcXe[
ZfekXZk Nff[jkfZb @ek\ieXk`feXc# @eZ%
Xk*-' .*+$*+/)fiXkk\Z_$jlggfik7
j_fg]fo%Y`q%
