-45-
D('+09\eZ_kfgCXk_\D]^%J`eZ\/&'0
G8IKJ

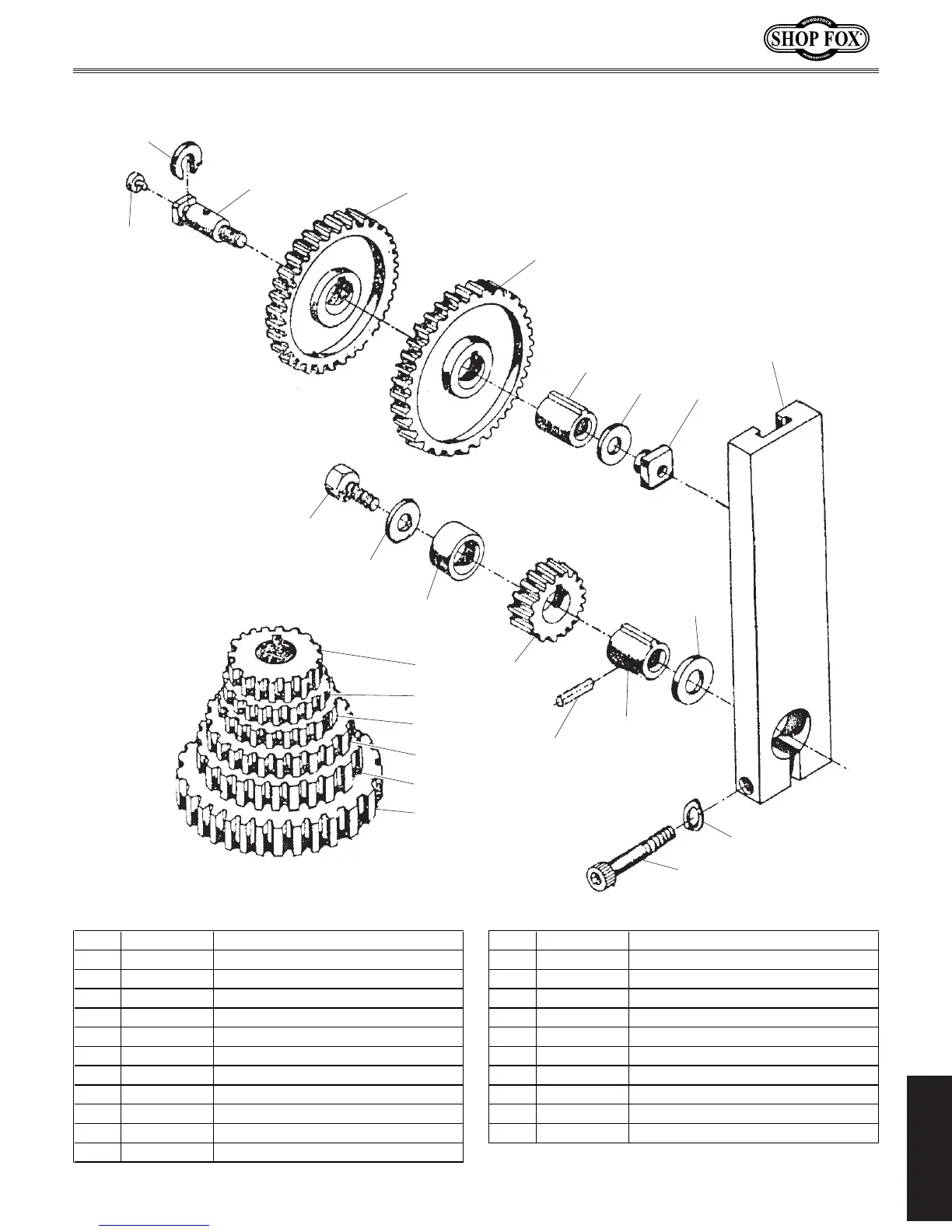

Change Gears
101
102
103
104
105
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 XM1049101 BRACKET 113 XM1049113 SPACER
102 XM1049102 T-NUT M6-1 114 XPW03M FLAT WASHER 6MM
103 XPW03M FLAT WASHER 6MM 115 XPCAP04M CAP SCREW M6-1 X 10
104 XM1049104 SHAFT 116 XPLW03M LOCK WASHER 6MM
105 XM1049105 KEYED BUSHING 117 XPCAP48M CAP SCREW M6-1 X 35
106 XM1049106 GEAR 127T 118 XM1049118 GEAR 28T
107 XM1049107 GEAR 120T 119 XM1049119 GEAR 36T
108 XM1049108 SHAFT RETAINING CLIP 120 XM1049120 GEAR 42T
109 XPLUBE001M TAP-IN BALL OILER 6MM 121 XM1049121 GEAR 45T
110 XPW04M FLAT WASHER 10MM 122 XM1049122 GEAR 60T
111 XPRP19M ROLL PIN 4 X 14 123 XM1049123 GEAR 80T
112 XM1049112 GEAR 30T
