Shop fox M1049 - Page 46

-44-
D('+09\eZ_kfgCXk_\D]^%J`eZ\/&'0
G8IKJ

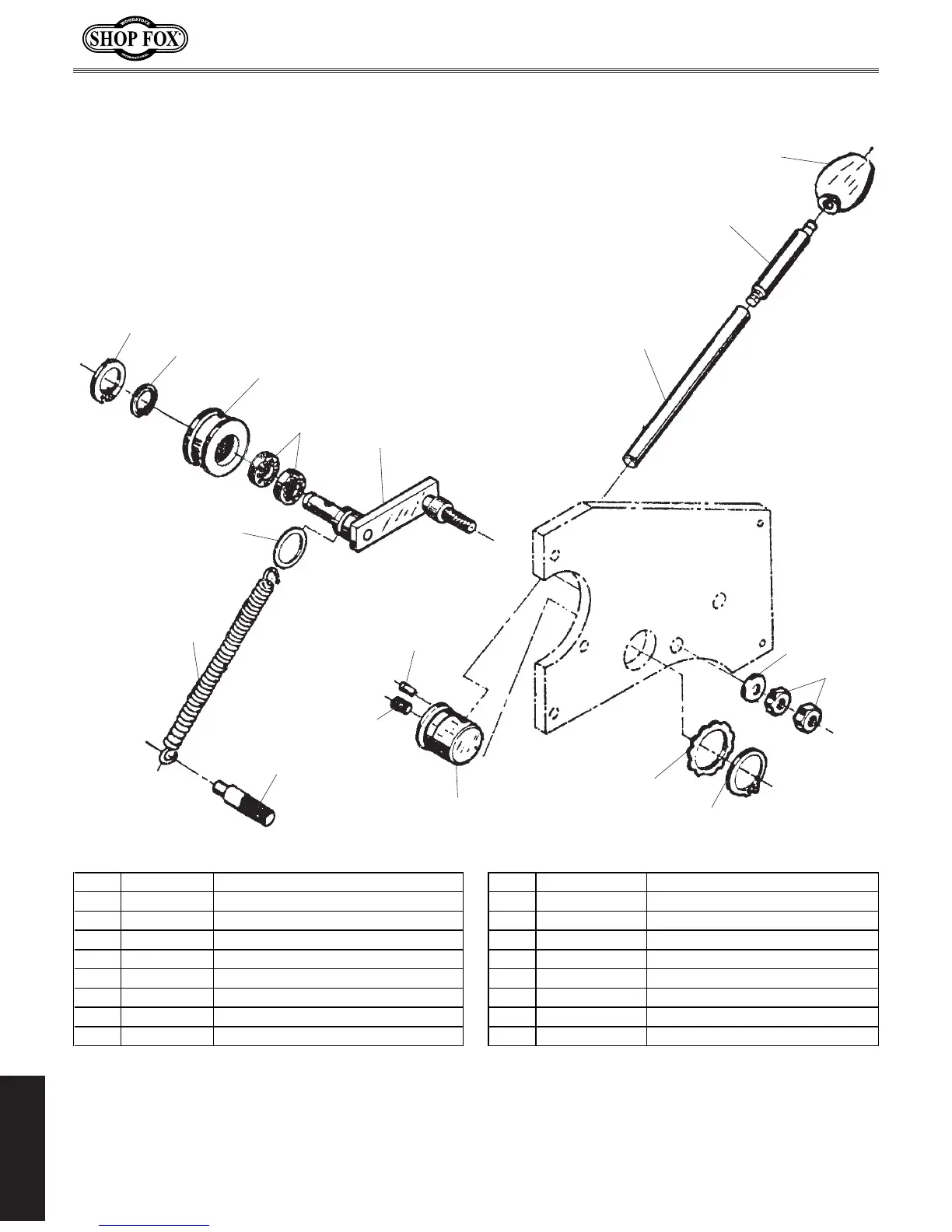

Belt Tensioner
53
55
56
58
59
60
61
62
63
64
65V2
66V2
69
70
71
72
73
74
REF PART # DESCRIPTION REF PART # DESCRIPTION
53 XM1049053 AXLE BRACKET 64 XM1049064 STEPPED SPRING BOLT
55 XP6001ZZ BALL BEARING 6001ZZ 65V2 XM1049065V2 TENSIONING CAM V2.08.07
56 XM1049056 ROLLER 66V2 XM1049066V2 CAP SCREW M6-1 X 25
58 XPR03M EXT RETAINING RING 12MM 69 XPSS20M SET SCREW M8-1.25 X 8
59 XPR20M INT RETAINING RING 28MM 70 XM1049070 WAVY WASHER 34MM
60 XPW04M FLAT WASHER 10MM 71 XPR84M EXT RETAINING RING 34MM
61 XPN02M HEX NUT M10-1.5 72 XM1049072 BELT TENSION LEVER
62 XM1049062 SPRING RING 73 XM1049073 EXTENSION ROD
63 XM1049063 EXTENSION SPRING D12 X 142 74 XM1049074 KNOB M10-1.5 X 32
