-43-
D('+09\eZ_kfgCXk_\D]^%J`eZ\/&'0
G8IKJ
PARTS

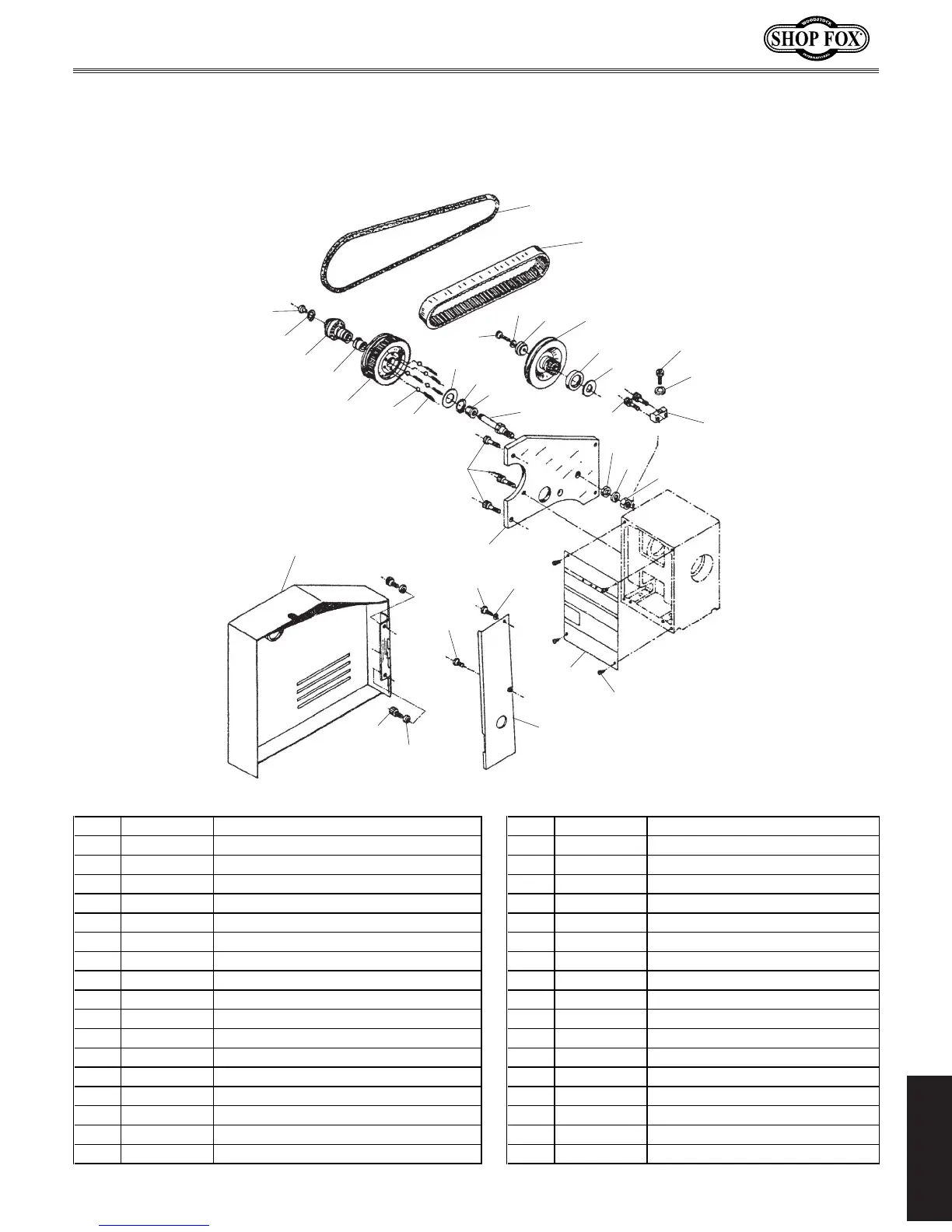

Drive Belt
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
33
34
36
37
38
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 XM1049001 BRACKET PLATE 19 XM1049019 MOTOR PULLEY WASHER
2 XPCAP15M CAP SCREW M5-.8 X 20 20 XPLW03M LOCK WASHER 6MM
3 XM1049003 IDLER PULLEY SHAFT 21 XPCAP06M CAP SCREW M6-1 X 25
4 XPW04M FLAT WASHER 10MM 22 XM1049022 COVER PLATE
5 XPLW06M LOCK WASHER 10MM 23 XPCAP33M CAP SCREW M5-.8 X 12
6 XPN02M HEX NUT M10-1.5 24 XPW02M FLAT WASHER 5MM
7 XM1049007 BUSHING 25 XPCAP03M CAP SCREW M5-.8 X 8
8 XPR11M EXT RETAINING RING 25MM 26 XM1049026 END GEAR COVER W/HINGE
9 XM1049009 IDLER PULLEY WASHER 27 XPCAP17M CAP SCREW M4-.7 X 10
10 XM1049010 COMPRESSION SPRING D4.5-1.75 X 24 28 XPW03M FLAT WASHER 6MM
11 XPSTB004M STEEL BALL 5MM 29 XPCAP04M CAP SCREW M6-1 X 10
12 XM1049012 IDLER PULLEY 30 XPCAP06M CAP SCREW M6-1 X 25
13 XM1049013 CLUTCH HUB 31 XPW03M FLAT WASHER 6MM
14 XPR03M EXT RETAINING RING 12MM 33 XPCAP02M CAP SCREW M6-1 X 20
15 XPLUBE001M TAP-IN BALL OILER 6MM 34 XM1049034 CLAMP BLOCK
16 XM1049016 SPACER 36 XM1049036 V-BELT M5 X 710
17 XM1049017 COLLAR 37 XM1049037 COGGED BELT 170 X L 050
18 XM1049018 MOTOR PULLEY 38 XM1049038 CONFIGURATION PLATE
