Shop fox M1049 - Page 56

-54-
D('+09\eZ_kfgCXk_\D]^%J`eZ\/&'0
G8IKJ
Bed
601
602
603
604
605
606
607
608
609
610
611
612
613
614
617
618
619
619
620
620
621
622
622

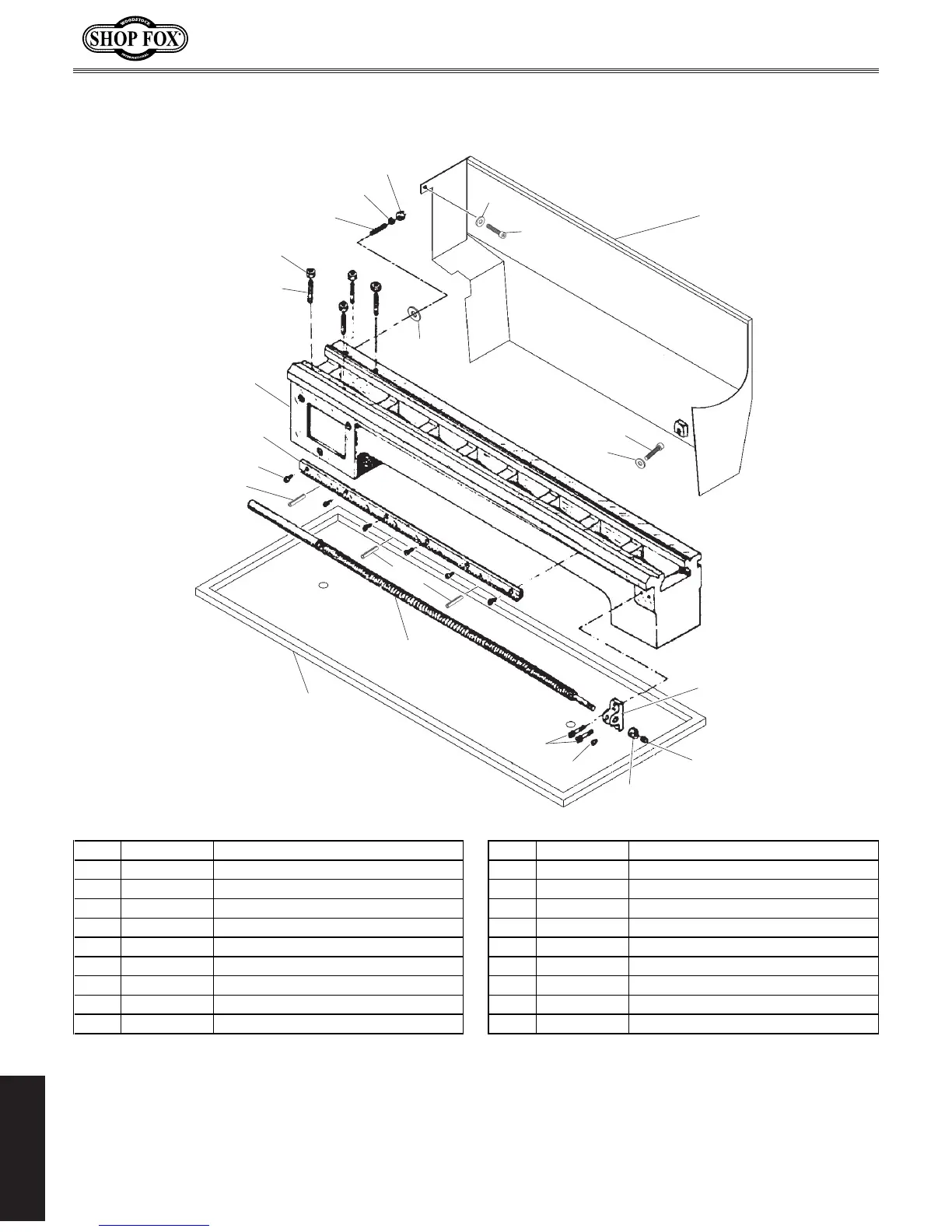

REF PART # DESCRIPTION REF PART # DESCRIPTION
601 XM1049601 BED 611 XPN03M HEX NUT M8-1.25
602 XM1049602 RACK 612 XPSS12M SET SCREW M6-1 X 25
603 XPCAP18M CAP SCREW M4-.7 X 8 613 XPW03M FLAT WASHER 6MM
604 XM1049604 LONGITUDINAL LEADSCREW 614 XPN01M HEX NUT M6-1
605 XM1049605 BRACKET 617 XM1049617 SPLASH PAN
606 XPLUBE001M TAP-IN BALL OILER 6MM 618 XM1049618 CHIP TRAY
607 XPCAP02M CAP SCREW M6-1 X 20 619 XPW02M FLAT WASHER 5MM
608 XPN03M HEX NUT M8-1.25 620 XPCAP50M CAP SCREW M5-.8 X 10
609 XPSS17M SET SCREW M8-1.25 X 6 621 XPWF06M FENDER WASHER 6MM
610 XM1049610 GAP STUD-DE M8-1.25 X 28 622 XPRP76M ROLL PIN 4 X 16
