Shopsmith MARK V - Page 10

SHOPSMITH MARK V 845180
Page 10

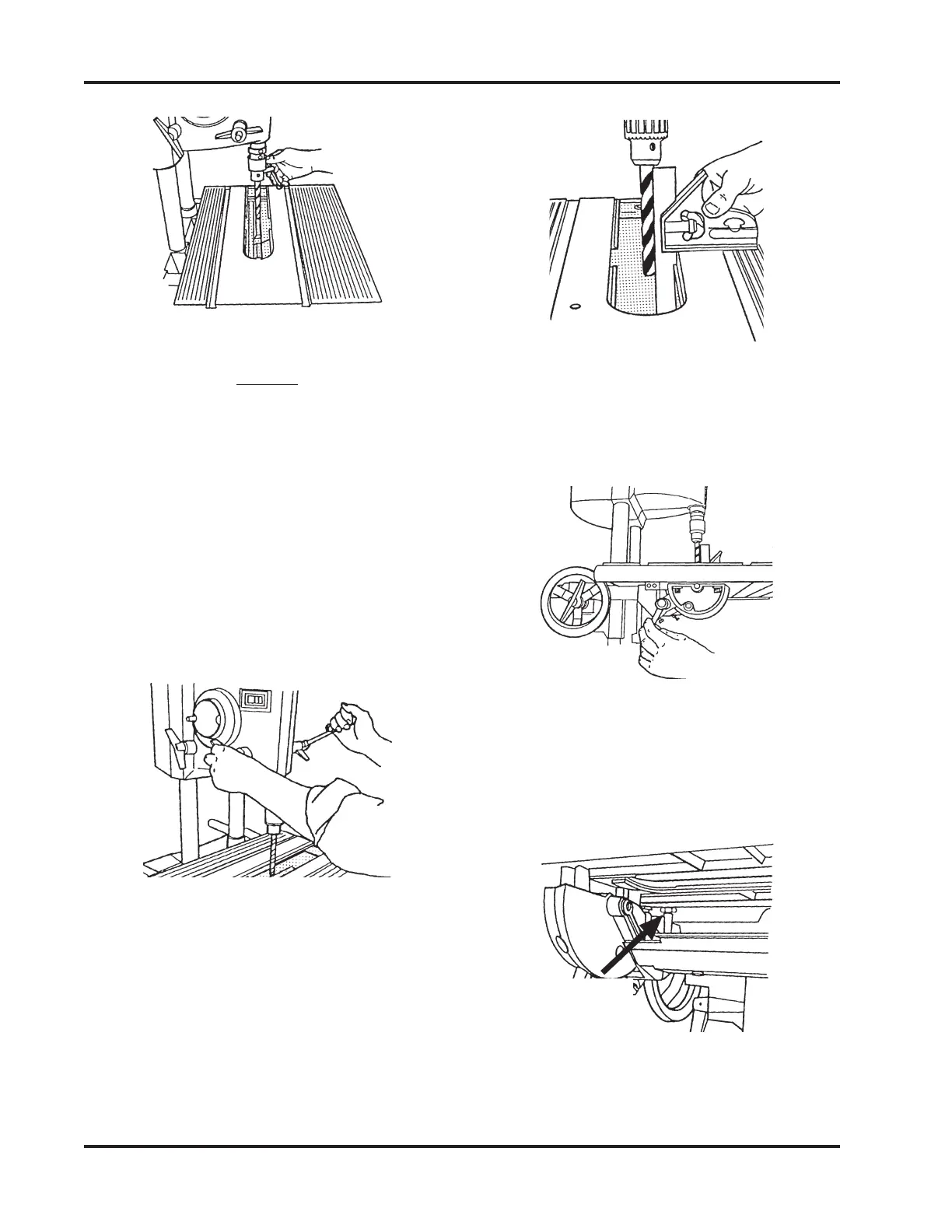

Figure 20
10. When the Table is exactly perpendicular
to the Drill Bit, lock the Table, as seen in
Figure 21.
Figure 21
11. Both 90° Stops (shown in Figures. 22 and
23) should contact the underside of the
Table. If they don't, use a 1/2" Wrench to
adjust the Stops.
Figure 22
90° Stop
(Front)
Figure 18
NOTE
Check the straitness of the Drill Bit by rolling it on
a flat surface or you can also hand-rotate the Drill
Chuck while holding the Combination Square
against the Drill Bit and the Table. If the bit is not
straight DO NOT use it for these alignment instruc-
tions.
8. With the Drill Bit above the Table Open-
ing, use the Quill Feed Handel to extend
the Bit 1/2" into the Table Opening, as
shown in Figure 19.
Figure 19
9. Set the Combination Square against the
Drill Bit and Table, as shown in Figure
20. The Square should contact the Drill
Bit along its entire length.
