Page 9
845180 SHOPSMITH MARK V
WARNING
Always make sure the MARK V Head-
stock and Carriage are locked and all
Casters are raised off the floor before
lifting the MARK V into the vertical
Drill Press position.
3. Use your fingers to tighten the Base Lock.

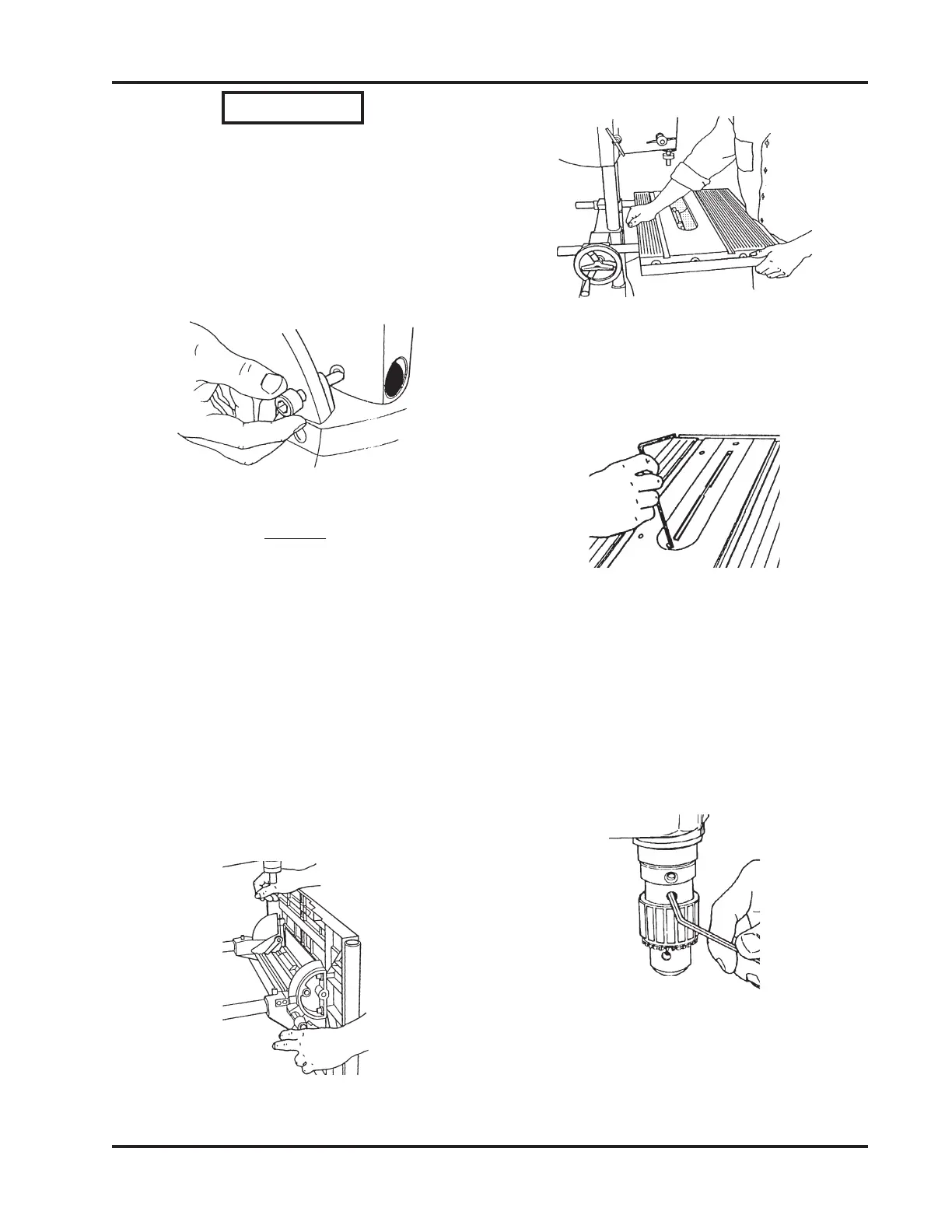

Figure 13
NOTE
The Base Lock is slightly off center to the counter-
sink found in the Base, as shown in Figure 13. This
offset allows the Base Lock to more firmly hold the
Base Arm in place.
4. Move the Worktable into the 90° posi-
tion by loosening the Table Tilt Lock, as
shown in Figure 14, then putting the
Worktable in the horizontal 90° position,
as shown in Figure 15. Retighten the
Table Tilt Lock only enough to allow
movement with firm pressure.
Figure 14
Figure 15
5. Use a 5/32" Allen Wrench to remove the
Table Insert, as demonstrated in Figure
16.
Figure 16
6. To install the Drill Chuck, mount the
Chuck on the Spindle and align the
Chuck's Set Screw with the Spindle
Knob's Set Screw, as shown in Figure 17.
This allows the Chuck's Set Screw to set
on the flat part of the Spindle. Use a 5/
32" Allen Wrench to securely tighten the
Drill Chuck's Set Screw.
Figure 17
7. Install a 1/2" Straight Drill Bit in the
Drill Chuck and use the Chuck Key to
lock it in place. See Figure 18.
To Next Page
