Shopsmith MARK V - Set Worktable 90° Left Stop (Models 510 & 520)

SHOPSMITH MARK V 845180
Page 8

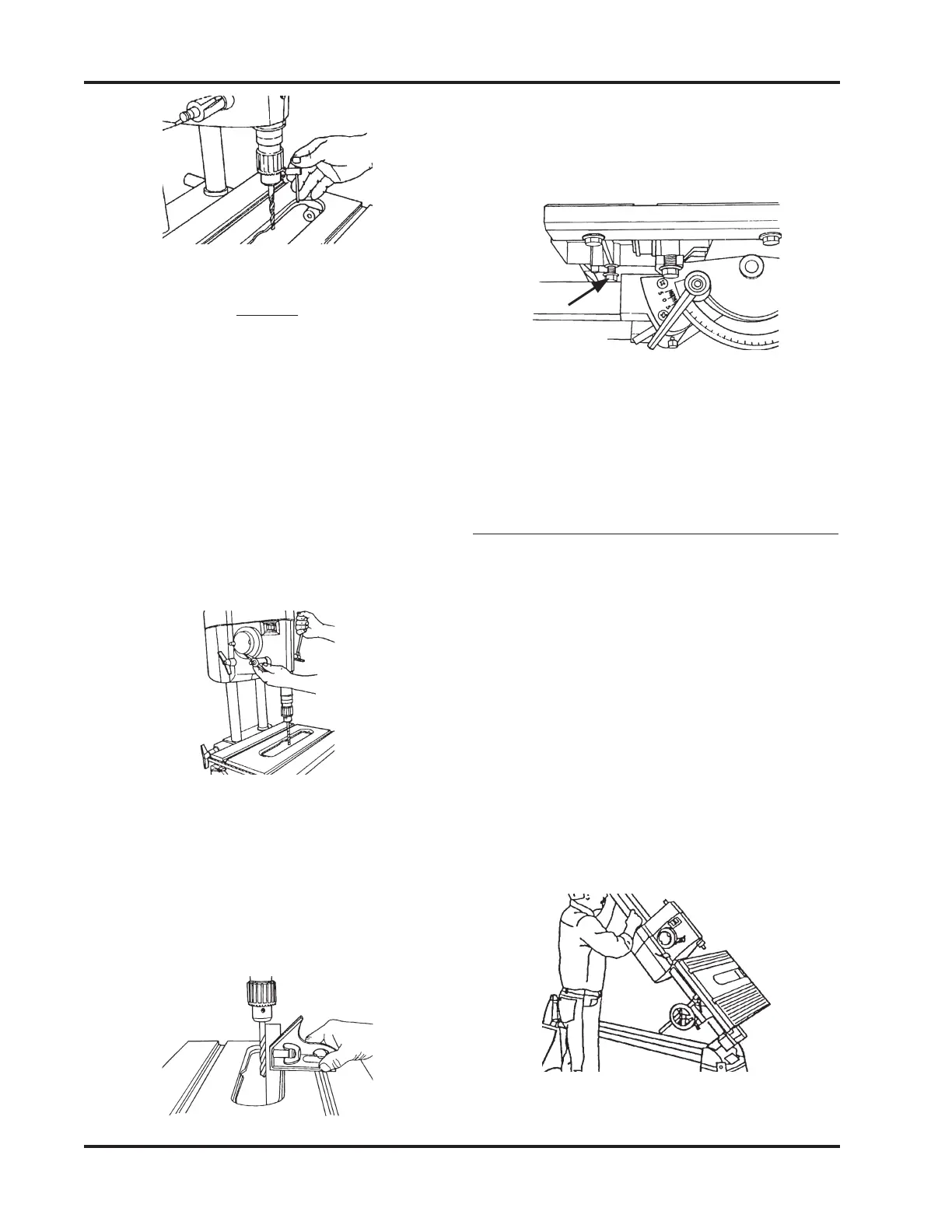

10. Both 90° Stops should contact the top of
the Table Support Tubes, as in Figure 11.
If they don't, use a 1/2" Wrench to adjust
the Stops.
Figure 11
11. Recheck the setting by loosening the Tilt
Lock, moving the Table, and then re-
peating Steps 9 and 10. (Rechecking the
setting is very important!)
SET WORKTABLE'S 90° LEFT STOP
(MARK V MODELS 510 & 520)
1. Unlock the Carriage and Headstock.
Move the Headstock to the middle of the
Way Tubes. Then move the Carriage
between the Headstock and Base Mount
(right side).
2. Tighten the Headstock and Carriage
Locks. Place the MARK V in the vertical
position by loosening the Headrest
Handle, firmly grasping the Way Tubes
near the Headrest end, and lifting the
Tubes into the 90° position, as demon-
strated in Figure 12.
Figure 12
Figure 8
NOTE
Check the straightens of the Drill Bit by rolling it
on a flat surface or you can also hand-rotate the
Drill Chuck while holding the Combination Square
against the Drill Bit and the Table. If the Bit is not
straight DO NOT use it for these alignment instruc-
tions.
8. With the Drill Bit above the Table open-
ing, use the Quill Feed to extend the Drill
Bit 1/2" into the Table opening, as in
Figure 9.
Figure 9
9. Set the Combination Square against the
Drill Bit and Table, as shown in Figure
10. The Square should contact the Drill
Bit along its entire length. When the
Table is exactly perpendicular to the Drill
Bit, lock the Table.
Figure 10
90° STOP
(Front)
