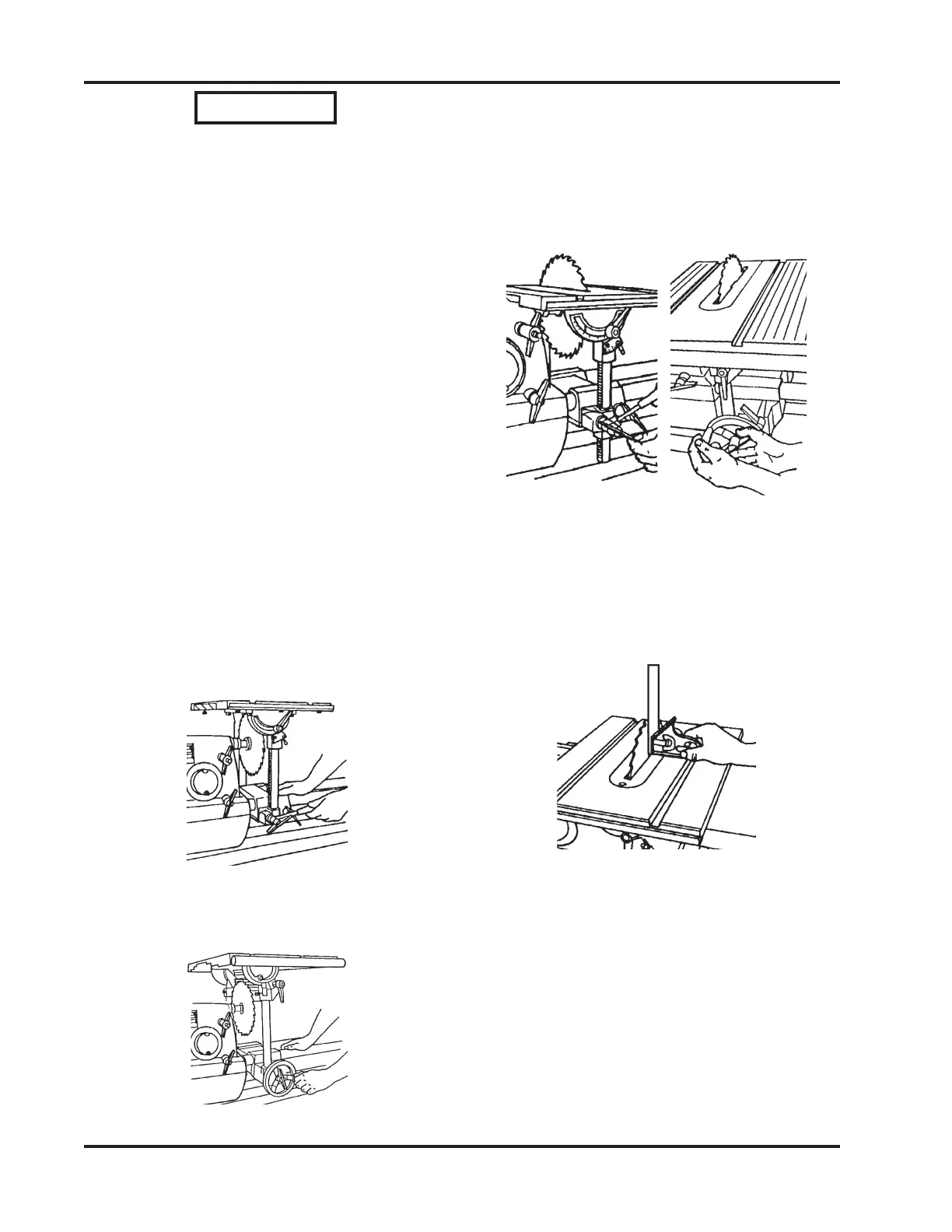

10. Place the Combination Square against
both the Saw Blade and Worktable, as
seen in Figure 32. Make sure the square's
blade does not touch a saw tooth and
does rest in a gullet between teeth.
Figure 32
11. If the Worktable is not exactly perpen-
dicular to the Saw Blade, adjust the
Worktable so it is perpendicular to the
Saw Blade, then tighten the Tilt Lock.
(MARK V MODEL 500)
12. Use a Small Screwdriver to back out the
0° stop 2-3 turns. Depress the Plunger
WARNING
The only time the Saw Blade is used
without the Upper or Lower Saw
Guards is during alignment and ONLY
after the MARK V is turned off and
unplugged.
5. Mount the Saw Blade on the Spindle and
align the Arbor Set Screw with the
Spindle Knob's Set Screw, then use a 5/
32" Allen Wrench to tighten the Arbor
Set Screw.
6. Reinstall the Table Insert in the Work-
table.
7. Raise the Worktable so that it clears the
top of the Saw Blade.
8. Loosen the Carriage Lock and slide the
Carriage so the Saw Blade is directly
beneath the slot in the Table Insert. See
Figure 28 or 29. Tighten the Carriage
Lock.
MARK V Model 500
Figure 28
MARK V Models 510 & 520
Figure 29
9. Lower the Worktable (nearly all the way
down) so the Saw Blade comes through
the slot. Lock the Table Height, as seen in
Figure 30 or 31.
Figure 31
MARK V
Models 510 & 520
Figure 30
MARK V
Model 500
