845180 SHOPSMITH MARK V
ADJUST THE WORKTABLE'S 45° STOP
(MARK V Model 500)
1. Loosen the Table Height Lock and raise
the Table until it clears the Saw Blade.
Tighten the Height Lock.
2. Loosen the Tilt Lock and tilt the Work-
table to the right.
3. Tighten the Tilt Lock only enough to
allow movement with firm pressure.
4. Loosen the Quill Feed (shown in Figure
37) and extend the Quill so the Saw
under the Table Tilt Indicator up toward
the Front Trunnion, and hole it there
with your finger. Slowly turn the 0° stop
in until you feel it just touch the Plunger.
See Figure 33.

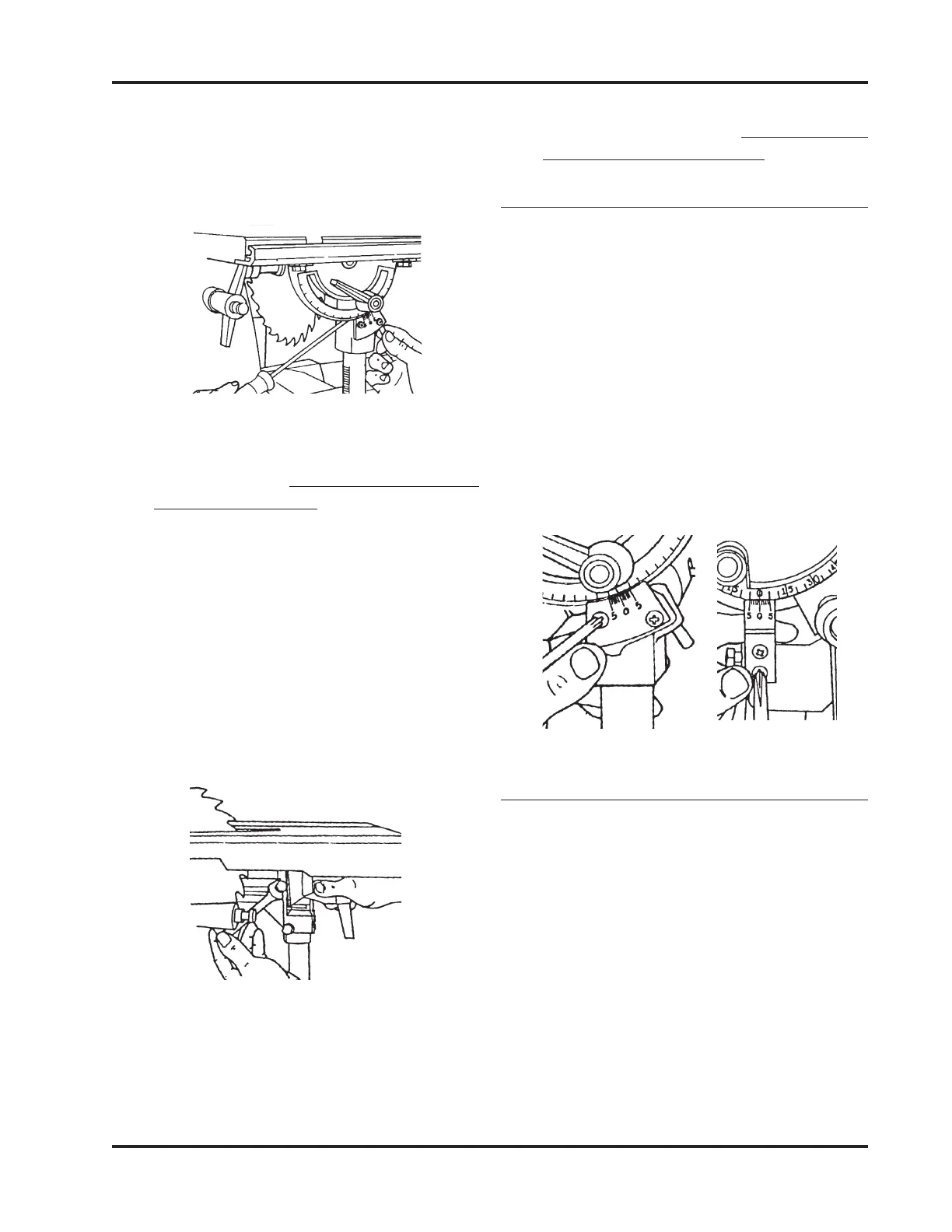

Figure 33
13. Recheck the setting by repeating Steps
10 through 12. (It is very important to
recheck this setting!)
(MARK V MODELS 510 & 520)
12. To adjust the 0° Stop, simultaneously
depress the Table Stop Pin and use a 1/
2" Wrench to adjust the Stop Bolt. The
Stop Bolt should just contact the side of
the Stop Pin. Once the Stop Bolt is ad-
justed, the Stop Pin will "snap" back
when the Tilt Lock is tightened. See Fig-
ure 34.
Figure 34
13. Loosen the Tilt Lock, tilt the Worktable,
then depress the 0° Stop Pin until the
Stop Bolt contacts it. Tighten the Tilt
Lock, and recheck the setting by repeat-
ing Steps 10 through 12. (It is very impor-
tant to recheck this setting!)
ADJUST THE TABLE TILT INDICATOR
1. Tighten the Table Tilt Lock and check
that the 0° mark on the Indicator aligns
with the 0° mark on the Trunnion.
2. To adjust the scale, use a Medium Phillips
Screwdriver to loosen the two Screws
which hold the Indicator to the Tie Bar.
See Figure 35 or 36. Then while holding
the Indicator in position so the 0's are
aligned, retighten the Screws.
MARK V
Model 500
Figure 35
MARK V
Models 510 & 520
Figure 36
