Shopsmith MARK V - Page 16

SHOPSMITH MARK V 845180
Page 16

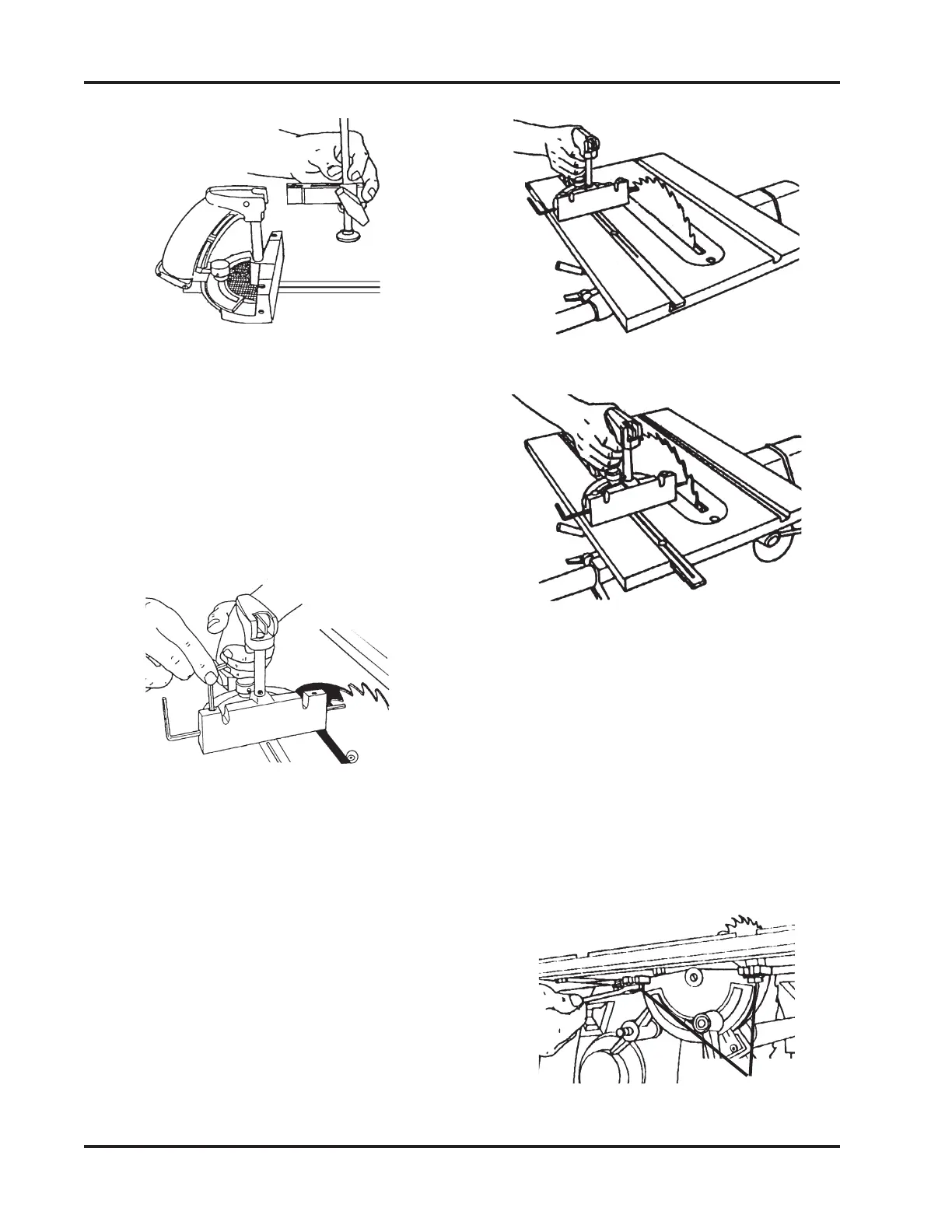

Figure 48
Figure 49
5. If the Miter Slots need to be aligned, do
the following:
(MARK V MODEL 500)
Figure 50
a. Use a 9/16" Wrench to loosen the
Bolts which hold the Worktable to
the Trunnions, (Front Trunnion
Bolts shown in Figure 50) and the
Table Base. Loosen these four Bolts
only enough to allow movement
with firm pressure.
Figure 46
3. Insert the Long 5/32" Allen Wrench
through the Miter Gauge. Borrow a Set
Screw from the Lathe Tool Rest and use
the Short 5/32" Allen Wrench to install it
in either top Miter Gauge hole, as seen in
Figure 47. Place the tip of the Long
Wrench against the front side of the Saw
Blade and tighten the Set Screw.
Figure 47
4. Move the Miter Gauge from front to back
along the Saw Blade, as shown in Figs. 48
and 49. If it hangs up on the Blade or a
gap develops, the Miter Gauge Slots need
to be aligned. Make sure the Allen
Wrench does not contact a Saw Blade
tooth, because the tooth "set" will cause
misalignment.
Trunnion Bolts
(Front)
