8. Hold a Straightedge on the outfeed top
surface of both the Worktable and the
Extension Table, as shown in Figure 93.
As needed, adjust the Top Nuts located
on the outfeed side of the Extension Table,
in order for the Straightedge to be level
across both the Worktable and the Ex-
tension Table outfeed sides.
Figure 93
9. Double check the levelness at the infeed
and outfeed sides of the Table surfaces.
All four Top Nuts (those nearest the
Table) used in leveling the Extension
Table should be touching the Base.
10. When the Tables are aligned on three
sides - infeed side edge (along the Table
Bars, as in Figure 90), infeed top surface
(as in Figure 91), and outfeed top surface
(as in Figure 93) - securely tighten the
Bottom Nut on each of the four Studs.
WARNING
DO NOT overtighten the nuts. Tighten
the nuts until they bottom out, then
no more than 1/8 additional turn. Over-
tightening the nuts will stretch and
damage the threads.
NOTE
If you move the MARK V to another location -
especially one with an uneven floor - remember to
recheck the Extension Table alignment.

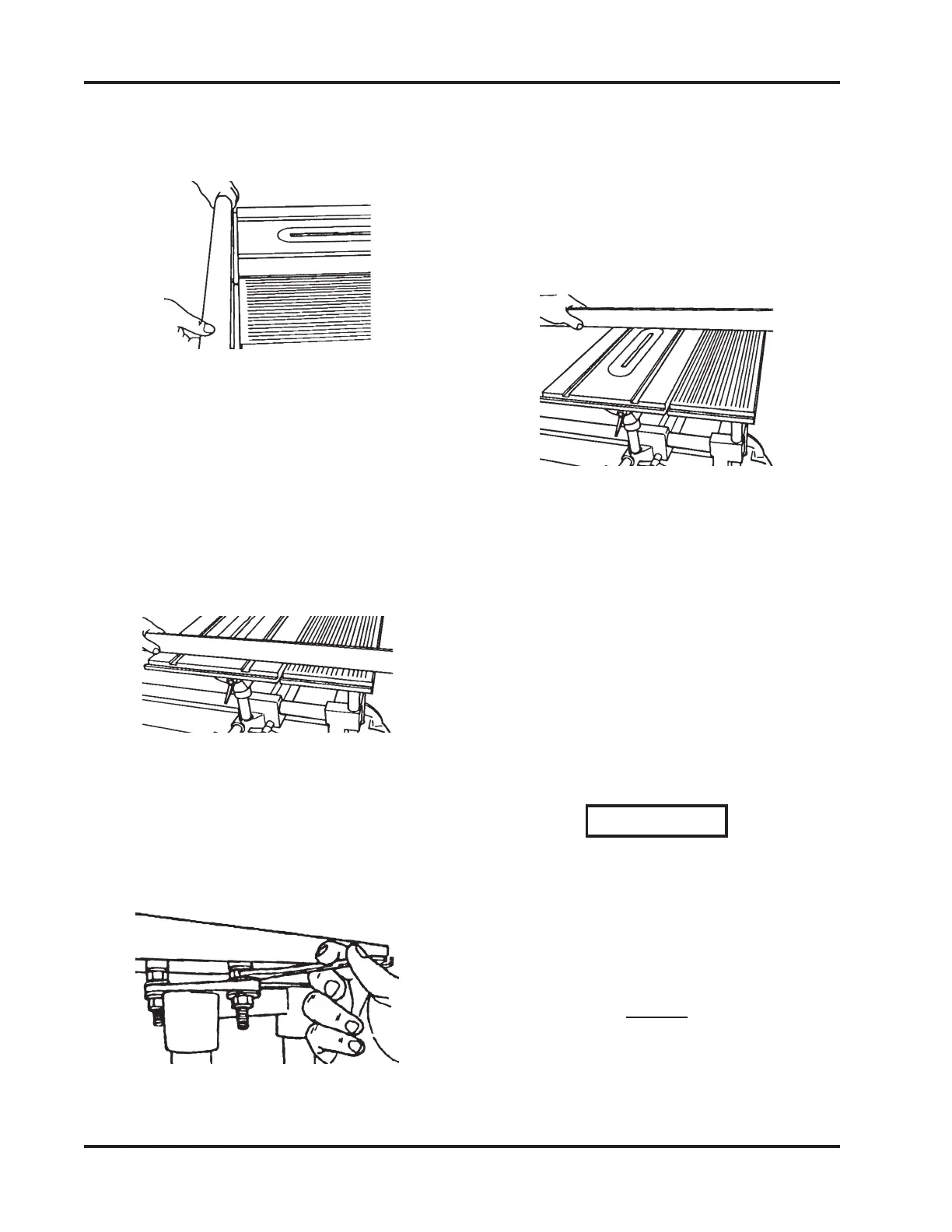

4. Hold a Straightedge against the infeed
edge of both the Worktable and Exten-
sion Table, as in Figure 90.
Figure 90
5. Line up the Extension Tables infeed edge
with the Worktables infeed edge. The
elongated holes in the Extension Table
Base permit you to slide the Extension
Table forward and backward.
6. Hold a Straightedge on the infeed top
surface of both the Worktable and the
Extension Table, as shown in Figure 91.
Figure 91
7. As needed, adjust the Top Nuts located
on the infeed side of the Extension Table,
in order for the Straightedge to be level
across both the Worktable and the Ex-
tension Table infeed sides. See Figure 92.
Figure 92
