845180 SHOPSMITH MARK V
ALIGN THE EXTENSION TABLE TUBES
(MARK V MODEL 510)

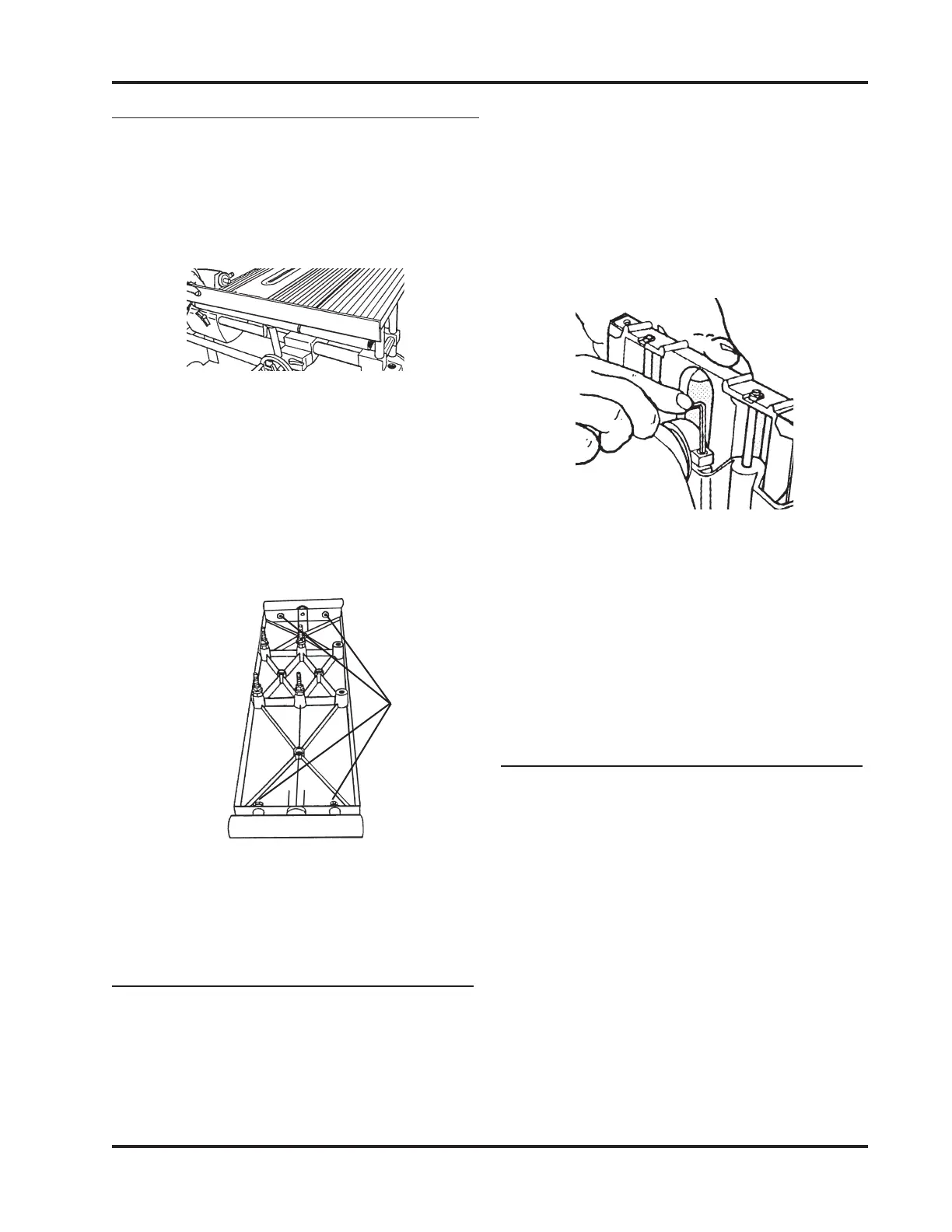

1. Place the Straightedge along the infeed
side tops of both the Worktable and Ex-
tension Table Tubes, as shown in Figure
94.
Figure 94
2. If the Extension Table's Tube is not
aligned with the Worktable's Tube, use a
7/16" Wrench to slightly loosen both
Keps Nuts attaching the Tube to the
Extension Table. Make the needed ad-
justments, then retighten the Nuts. See
Figure 95.
Figure 95
3. Repeat Steps 1 and 2 for the Extension
Table's Tube located on the outfeed side.
MOUNT THE LOWER SAW GUARD
(MARK V MODEL 500)
1. Loosen the Accessory Mount Lock and
remove the Extension Table. Loosen the
Table Height Lock and remove the Work-
table.
2. Fit the Lower Saw Guard's Clamp on the
Spindle Quill, so that the collar on the
Saw Guard butts against the Stop Collar
on the Quill.
3. Use a 5/32" Allen Wrench to tighten the
Socket Head Screws on the Saw Guard
Retainer, as seen in Figure 96.
Figure 96
4. Place the Saw Blade in the Saw Guard
and mount the Arbor on the Main
Spindle. Line up the flat on the Spindle
with the Arbor Set Screw. Use a 5/32"
Allen Wrench to securely tightened the
Arbor Set Screw. Readjust the Saw Guard
close to the Blade.
MOUNT THE LOWER SAW GUARD
(MARK V MODELS 510 & 520)
1. Loosen the Accessory Mount Lock and
remove the Extension Table. Loosen the
Table Height Lock and remove the Work-
table. Place the Saw Blade and Arbor in
the Lower Saw Guard Cover.
2. Fit the Lower Saw Guard's Clamp on the
Spindle Quill. Line up the Arbor Set
Screw with the Spindle Knob's Set Screw
(where the Spindle Flat is located). Use a
5/32" Allen Wrench to tighten the Arbor
Set Screw, as in Figure 97.
Keps
Nuts
