8.3.1. The Patch Table

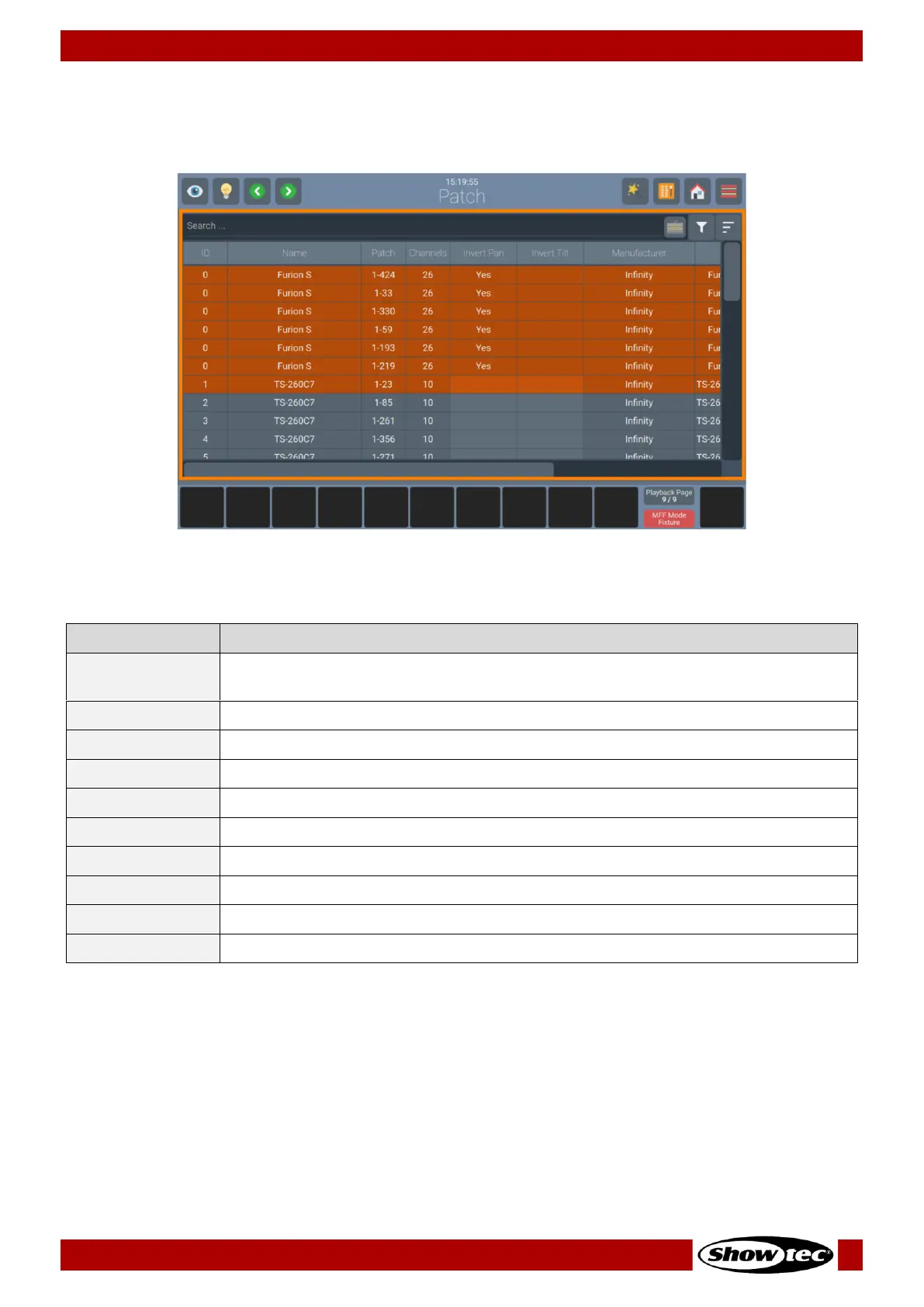

The Patch table gives you important overview about used fixtures, the addresses they use, fixture type
and so on. Let’s have a closer look at the table, pictured below.
The following columns are shown (in the order from left to right):
This column shows the ID of the fixture. This is a unique number which may be used
for indicating which fixture is which.
User given Name of the Fixture within the show file
Indicates the fixtures DMX Address (Universe – Channel)
Amount of DMX channels this fixture occupies
Indicates if Pan is inverted
Indicates if Tilt Inverted
This is the Manufacturer of the Fixture Type
This column displays the Fixture Type
Displays the number of instances
