2. Use a 3-p XLR cable to connect the MiniMax’s and other devices.
The pins:
1. Earth
2. Signal -
3. Signal +
3. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
4. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the other
end of the mains power cord into proper electric power supply sockets, starting with the first unit. Do not
supply power before the whole system is set up and connected properly.
5) On the first device, go to MODE and set M-SO (Sound-controlled Master). Remember only one fixture
can be the master.
6) On the slave devices you must select M-SL (Sound-controlled Slave). The DMX light on the slave devices
will start blinking. The slave devices must have address 001.
Multiple MiniMax’s Set Up
DMX-Set up
Master/Slave Set up

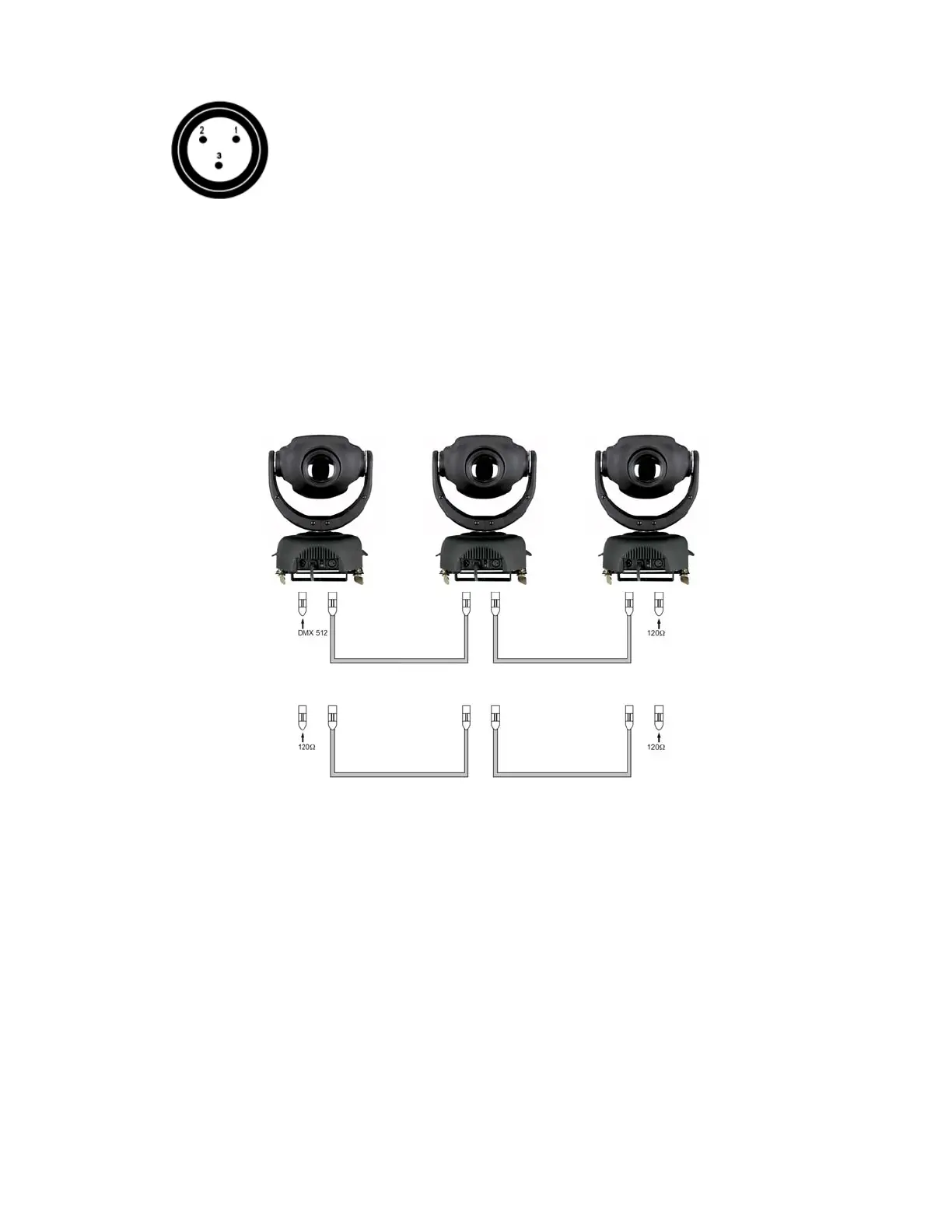

Fig. 4
Note : Link all cables before connecting electric power
