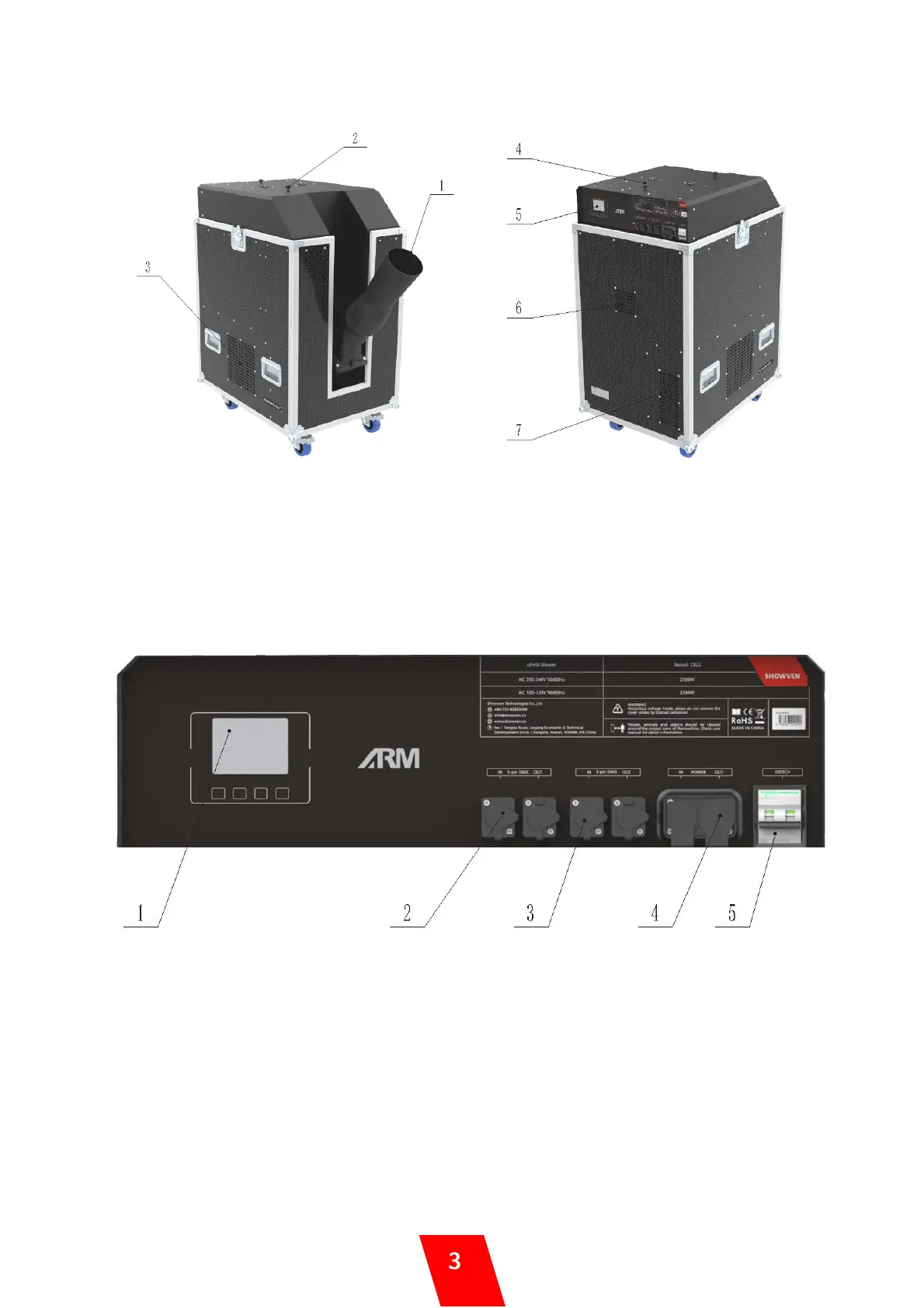

Δ Structure
1. Venturi Output Tube
2. Output Tube Angle Adjuster
3. Air Inlet
4. Confetti Hopper
5. Control Panel
6. Service Port
7. Air Inlet
Δ Rear Panel
1. LCD Screen
2. 5-pin XLR IN/OUT (5-PIN XLR IN can charge for wireless DMX pen through pin1 and 4, pin4 with
DC5V power supply)
3. 3-pin XLR IN/OUT
4. Power IN/OUT
5. Power Switch
Δ Display and setting
1. Main Interface
uFetti Blower can be controlled by DMX or manually. Manual control disabled when there is DMX
signal in.
Click “MENU” in main interface, press and hold “RUN” to start the machine manually, press “STOP”
to stop the machine, click “MONI” enter monitoring interface.
