Shure Microflex MXWANI8 - Shure ANI Technical Specifications; Audio Performance Specifications; Analog;Digital I;O and Impedance; Network Interface and Addressing Details

9
Signal Select
and Control
+
-
+
-
-18 dBFS =
+4 dBu
+
-
A
D
+4 dBu =
-18 dBFS
D
A
D
A
Class 0 PoEuplink
Audio Network Interface (ANI)
Audio Frequency Response
20Hzto20kHz(+1,−1.5dB)
Dynamic Range
20 Hz to 20 kHz, A-weighted, typical
Analog-to-Dante 113 dB
Dante-to-Analog 110 dB
Output Noise
20 Hz to 20 kHz, A-Weighted, typical
Line Aux Mic
−84.5dBV −95.2dBV −106.5dBV
THD+N
20 Hz to 20 kHz+4dBu analog input, −10 dBFS digital input
<0.05%
Polarity
Non-inverting, any input to any output
Dimensions
44 mm x 483 mm x 366 mm (1.7 in. x 19.0 in. x 14.4 in.), H x W x D
Weight
MXWANI4 3.1 kg (6.9 lbs)
MXWANI8 3.2 kg (7.1 lbs)
Housing
Steel; Extruded aluminum
Power Requirements
100 to 240 V AC, 50-60 Hz, 1 A
Operating Temperature Range
−18°C(0°F)to63°C(145°F)
Storage Temperature Range
−29°C(-20°F)to74°C(165°F)
Analog Connections
Outputs
Configuration Impedance Clipping Level (minimum)
Line Aux Mic
Active Balanced 310Ω +26.2 dBV +16.2 dBV −3.8dBV
Input(s)
Configuration Impedance Clipping Level (minimum)
Line Aux
Active Balanced 10.6kΩ +23.8 dBV +10.8 dBV
Headphone Output
6.35mm(1/4")TRS,100mW,350Ω,dualmono(willdrivestereophones)
0 dBV=1 V RMS
0 dBu=0.775 V RMS
0 dBV=2.2 dBu
Digital Signal Processing
AD/DA Converter
24-bit, 48 kHz
Latency
Estimated Nominal, ±0.1 ms
Analog-to-Dante 0.21 ms
Dante-to-Analog 0.24 ms
+ TN
TN = Network latency in milliseconds, as set in Dante Controller.
Note: Dante network latency is typically associated with the receiving device.
Networking
Network Interface
Four-Port Gigabit Ethernet Switch, Dante digital audio
Uplink Port (Port 4)
Selectable, blocks multicast traffic
Power over Ethernet (PoE)
Provided on Port 1 to power MXWAPT
Cable Requirements
Cat 5e or higher, shielded, 100 m maximum between network devices
Network Addressing Capability
DHCP, link-local, static

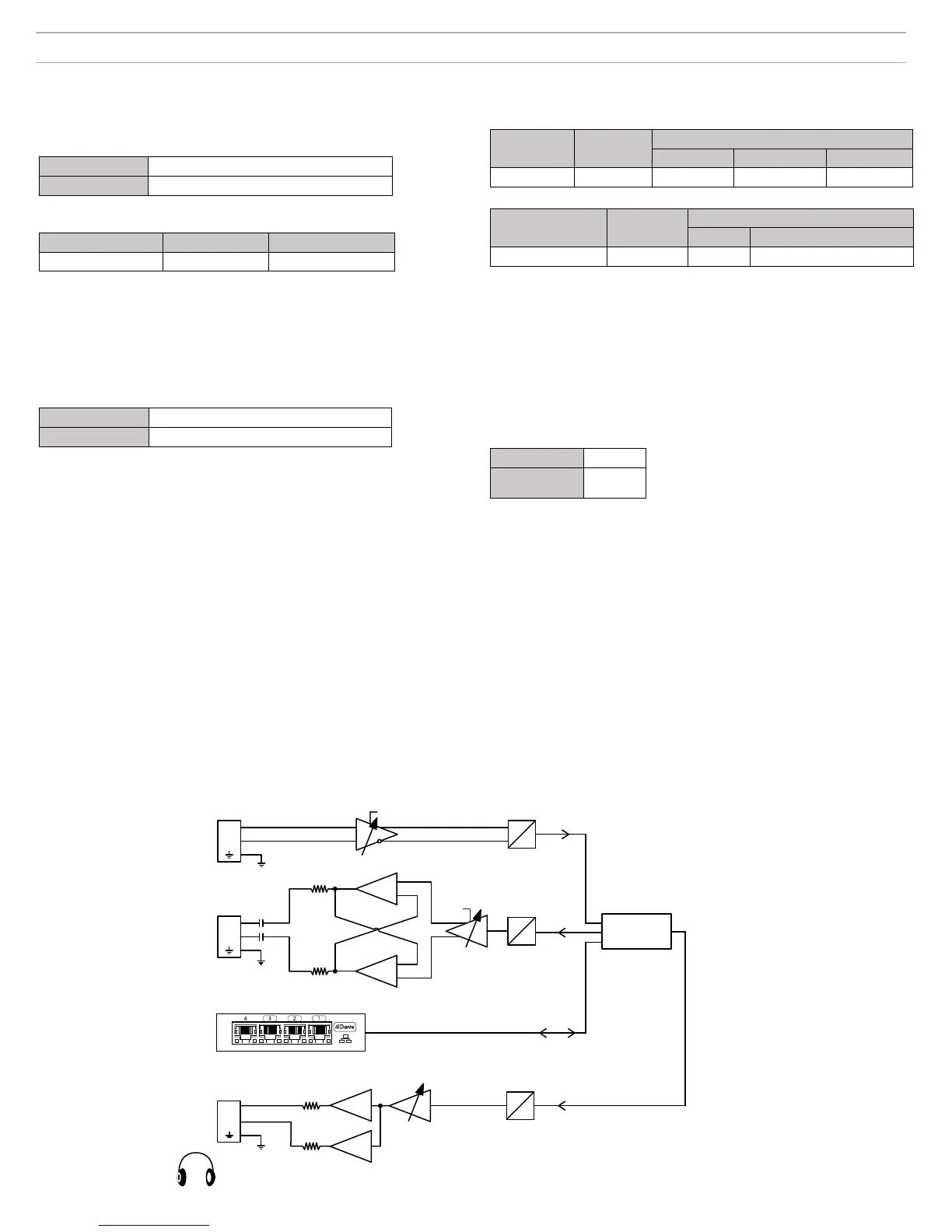

Wiring Diagram
Audio Input
Line
Aux
Audio Output
Line
Aux
Mic
Four-Port Gigabit
Ethernet Switch
Headphone Output
