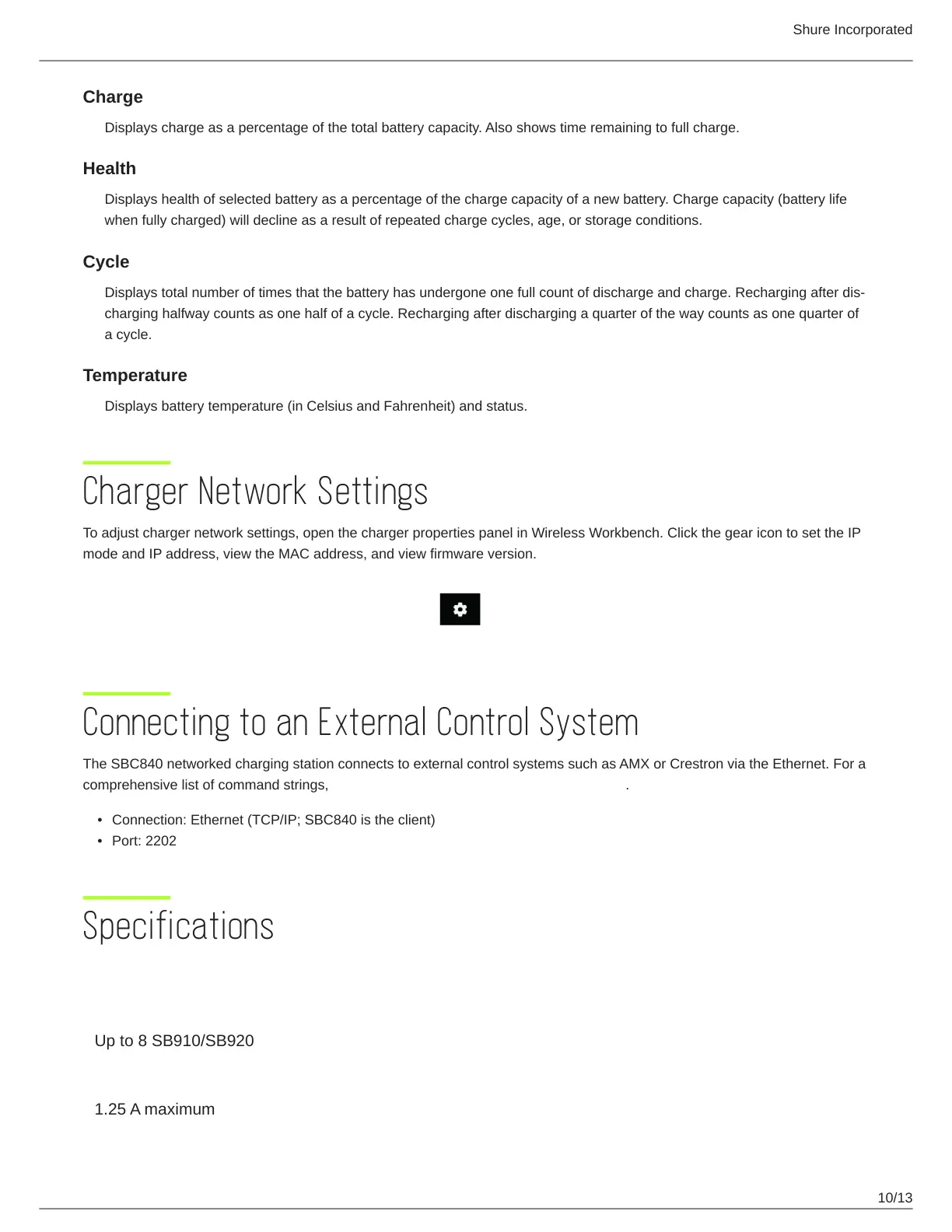

Charge
Displays charge as a percentage of the total battery capacity. Also shows time remaining to full charge.
Health
Displays health of selected battery as a percentage of the charge capacity of a new battery. Charge capacity (battery life
when fully charged) will decline as a result of repeated charge cycles, age, or storage conditions.
Cycle
Displaystotalnumberoftimesthatthebatteryhasundergoneonefullcountofdischargeandcharge.Rechargingafterdis
charging halfway counts as one half of a cycle. Recharging after discharging a quarter of the way counts as one quarter of
a cycle.
Temperature
Displays battery temperature (in Celsius and Fahrenheit) and status.
Charger Network Settings
To adjust charger network settings, open the charger properties panel in Wireless Workbench. Click the gear icon to set the IP
mode and IP address, view the MAC address, and view firmware version.
Connecting to an External Control System
The SBC840 networked charging station connects to external control systems such as AMX or Crestron via the Ethernet. For a
comprehensive list of command strings, visit the product page at https://www.shure.com.
Connection: Ethernet (TCP/IP; SBC840 is the client)
Port: 2202
Specifications
SBC840
Battery Type
Up to 8 SB910/SB920
Charge Current
1.25 A maximum
