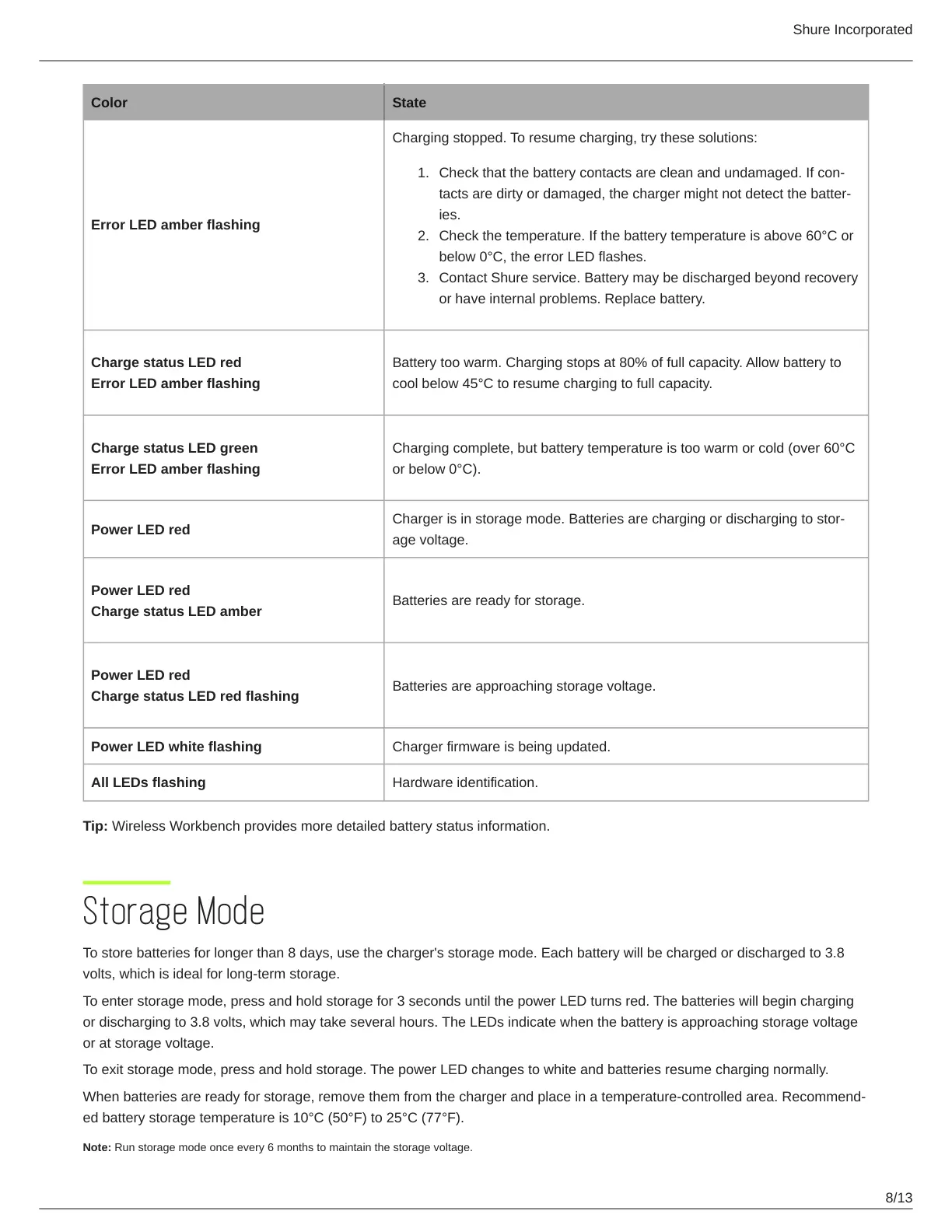

Color State
Error LED amber flashing
Charging stopped. To resume charging, try these solutions:
Checkthatthebatterycontactsarecleanandundamaged.Ifcon
tactsaredirtyordamaged,thechargermightnotdetectthebatter
ies.
Check the temperature. If the battery temperature is above 60°C or
below 0°C, the error LED flashes.
Contact Shure service. Battery may be discharged beyond recovery
or have internal problems. Replace battery.
Charge status LED red
Error LED amber flashing
Battery too warm. Charging stops at 80% of full capacity. Allow battery to
cool below 45°C to resume charging to full capacity.
Charge status LED green
Error LED amber flashing
Charging complete, but battery temperature is too warm or cold (over 60°C
or below 0°C).
Power LED red
Chargerisinstoragemode.Batteriesarechargingordischargingtostor
age voltage.
Power LED red
Charge status LED amber
Batteries are ready for storage.
Power LED red
Charge status LED red flashing
Batteries are approaching storage voltage.
Power LED white flashing Charger firmware is being updated.
All LEDs flashing Hardware identification.
Tip: Wireless Workbench provides more detailed battery status information.
Storage Mode
To store batteries for longer than 8 days, use the charger's storage mode. Each battery will be charged or discharged to 3.8
volts, which is ideal for long-term storage.
To enter storage mode, press and hold storage for 3 seconds until the power LED turns red. The batteries will begin charging
or discharging to 3.8 volts, which may take several hours. The LEDs indicate when the battery is approaching storage voltage
or at storage voltage.
To exit storage mode, press and hold storage. The power LED changes to white and batteries resume charging normally.
Whenbatteriesarereadyforstorage,removethemfromthechargerandplaceinatemperaturecontrolledarea.Recommend
ed battery storage temperature is 10°C (50°F) to 25°C (77°F).
Note: Run storage mode once every 6 months to maintain the storage voltage.
