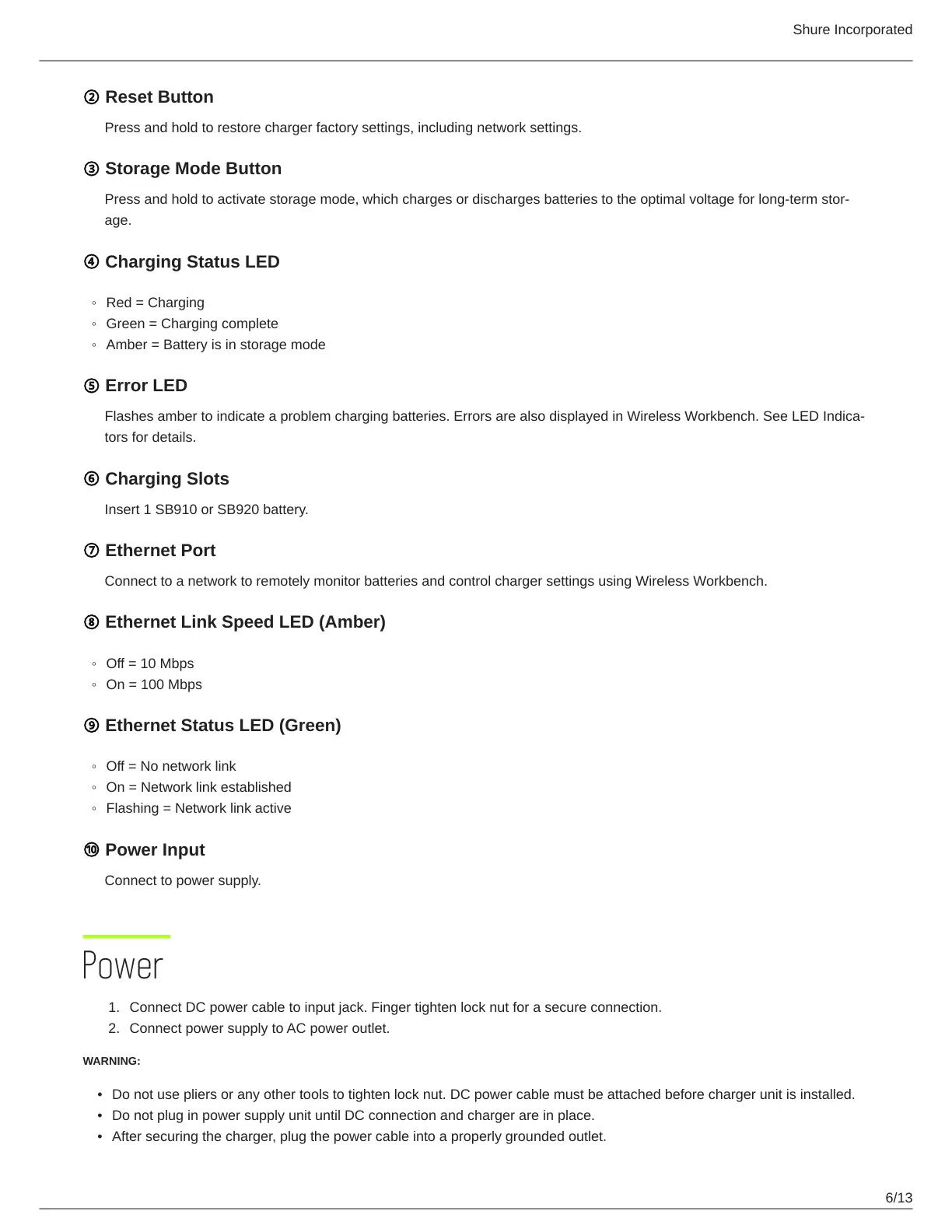

② Reset Button
Press and hold to restore charger factory settings, including network settings.
③ Storage Mode Button
Pressandholdtoactivatestoragemode,whichchargesordischargesbatteriestotheoptimalvoltageforlongtermstor
age.
④ Charging Status LED
Red = Charging
Green = Charging complete
Amber = Battery is in storage mode
⑤ Error LED
Flashesambertoindicateaproblemchargingbatteries.ErrorsarealsodisplayedinWirelessWorkbench.SeeLEDIndica
tors for details.
⑥ Charging Slots
Insert 1 SB910 or SB920 battery.
⑦ Ethernet Port
Connect to a network to remotely monitor batteries and control charger settings using Wireless Workbench.
⑧ Ethernet Link Speed LED (Amber)
Off = 10 Mbps
On = 100 Mbps
⑨ Ethernet Status LED (Green)
Off = No network link
On = Network link established
Flashing = Network link active
⑩ Power Input
Connect to power supply.
Power
Connect DC power cable to input jack. Finger tighten lock nut for a secure connection.
Connect power supply to AC power outlet.
WARNING:
Do not use pliers or any other tools to tighten lock nut. DC power cable must be attached before charger unit is installed.
Do not plug in power supply unit until DC connection and charger are in place.
After securing the charger, plug the power cable into a properly grounded outlet.
