10
ENGLISH
INSTALLATION
SUPPLIED HARDWARE
•
4 rubber feet.
For stand-alone installation.
•
1 rackmount bracket, long.
For half-rack (single unit) instal-
lations.
•
1 rackmount bracket, short.
For half-rack (single) or du-
al-mount installations.
•
2 straddle brackets.
For dual-mount or fixed installations.
•
12 bracket screws, 1/4 in. (6 mm).
For securing the brackets
to the chassis.
•
4 rackmount screws, 1 in. (2.5 cm).
For mounting the unit in
a rack.
•
4 plastic washers.
For use with the supplied rackmount
screws.
•
4 wood screws, 1/2 in. (1.25 cm).
For fixed installations.

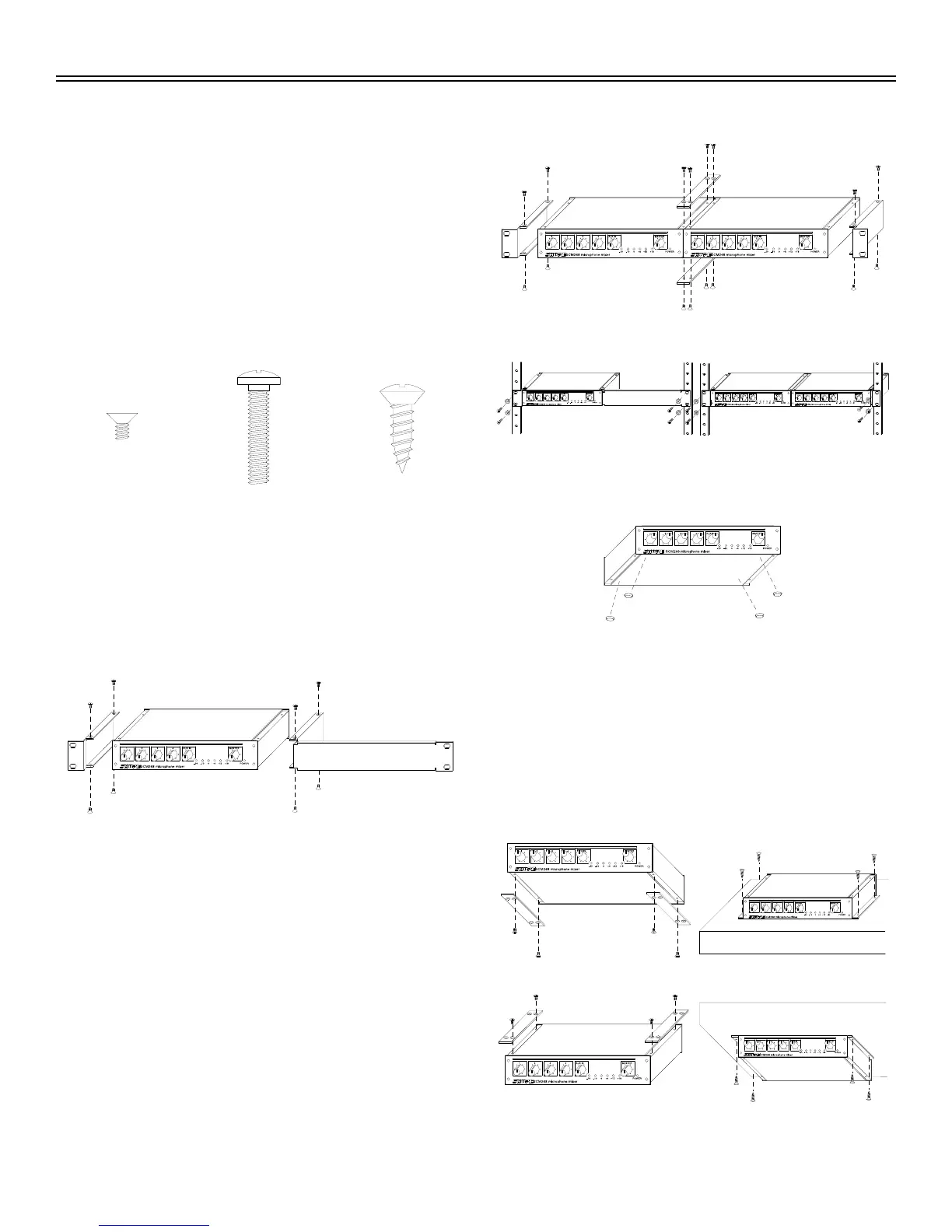

RACKMOUNT INSTALLATION
The SCM268 can be mounted as a single unit or dual-mounted with ei-
ther another SCM268 or another Shure half-rack unit such as the
SCM262 or DFR11EQ.
Attach the rackmount brackets using one of the
following methods:
Single unit (half-rack) installation:
1. Attach the short and long rackmount brackets to the SCM268
with eight (8) of the supplied bracket screws.
Dual-mounted installation:
1.
Connect the two units together side-by-side using two (2)
straddle brackets. The brackets should straddle the recessed
edges on on the top and bottom of each chassis. Fasten
them using eight (8) bracket screws.
NOTE: Be sure to use both straddle brackets-one on the top and
one on the bottom.
2. Attach the short rackmount brackets to the outsides of the com-
bined units with eight (8) of the bracket screws.
3. After attaching the brackets, mount the unit in an equipment rack
using the supplied rackmount screws and plastic washers.
STAND-ALONE INSTALLATION
Adhere the four (4) supplied rubber feet to the bottom of the unit at
each corner. This will keep it from sliding and protect the table surface.
FIXED INSTALLATION
To permanently affix the SCM262 above or below a table, shelf, or
counter top, use the following steps:
1.
Fasten the straddle brackets to the recessed edges of the chassis
using four (4) bracket screws.
Top mount: Fasten the straddle brackets to on the bottom of the
unit
Hanging mount: Fasten the straddle brackets to the top of the unit.
2. Fasten the straddle brackets to the surface using the four (4) sup-
plied wood screws.
TOP MOUNT
HANGING MOUNT
Wood Screw
Rackmount Screw
Bracket Screw
