Shure SM4 - Replace Bands on the Shock Mount

Shure Incorporated
10/12
1.
2.
3.
4.
-38dBV/Pa[1](17.8mV)
Signal-to-Noise Ratio
77 dB
S/N ratio is the difference between 94 dB SPL and equivalent SPL of self noise, A-weighted
Maximum SPL
1 kHz at 1% THD, 1 kΩ load
140dBSPL
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Connector
Three-pin professional audio (XLR), male
Weight
463g(1.02lbs)
Housing
Die Cast Zinc
Power Requirements
48VDCphantompower(5.3mA)
[1] 1 Pa=94 dB SPL

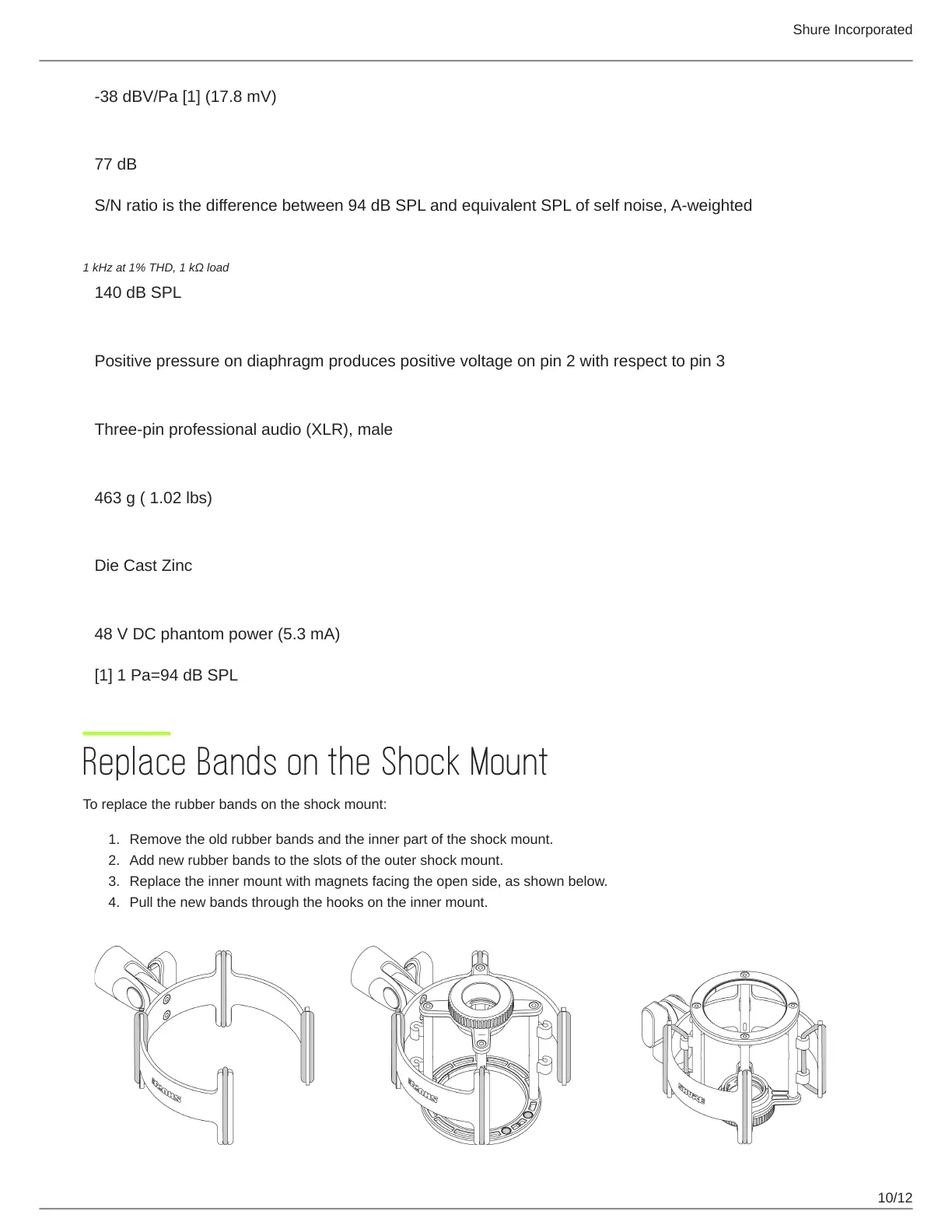

Replace Bands on the Shock Mount
To replace the rubber bands on the shock mount:
Remove the old rubber bands and the inner part of the shock mount.
Add new rubber bands to the slots of the outer shock mount.
Replace the inner mount with magnets facing the open side, as shown below.
Pull the new bands through the hooks on the inner mount.
