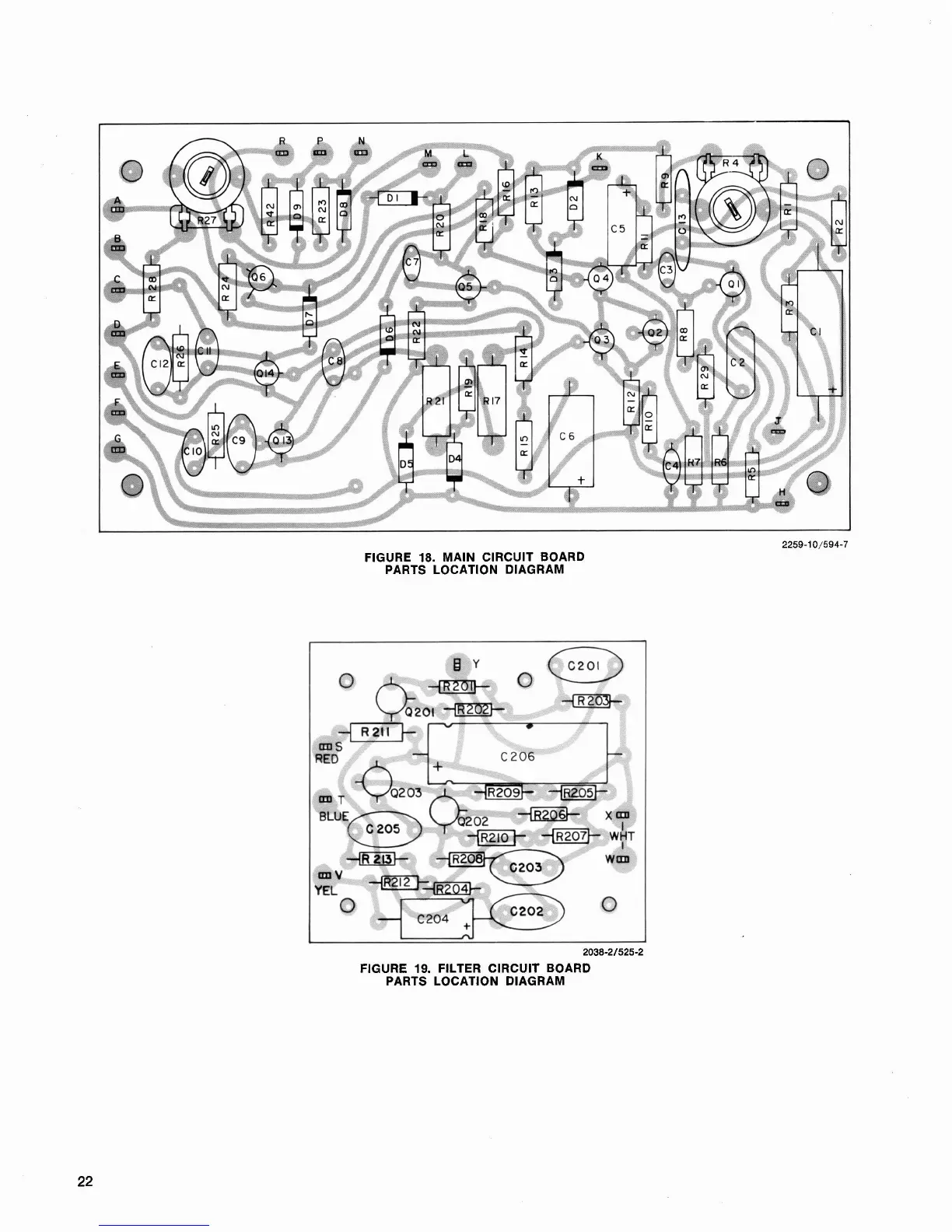

FIGURE
18.
MAIN CIRCUIT BOARD
PARTS LOCATION DIAGRAM
2038-21525-2
FIGURE
19.
FILTER CIRCUIT BOARD
PARTS LOCATION DIAGRAM
