Shure VP88 - Technical Specifications; Specifications Overview

Shure Incorporated
8/13
An external matrix can be useful when recording, because decisions on stereo imaging are deferred to the post-production stage.

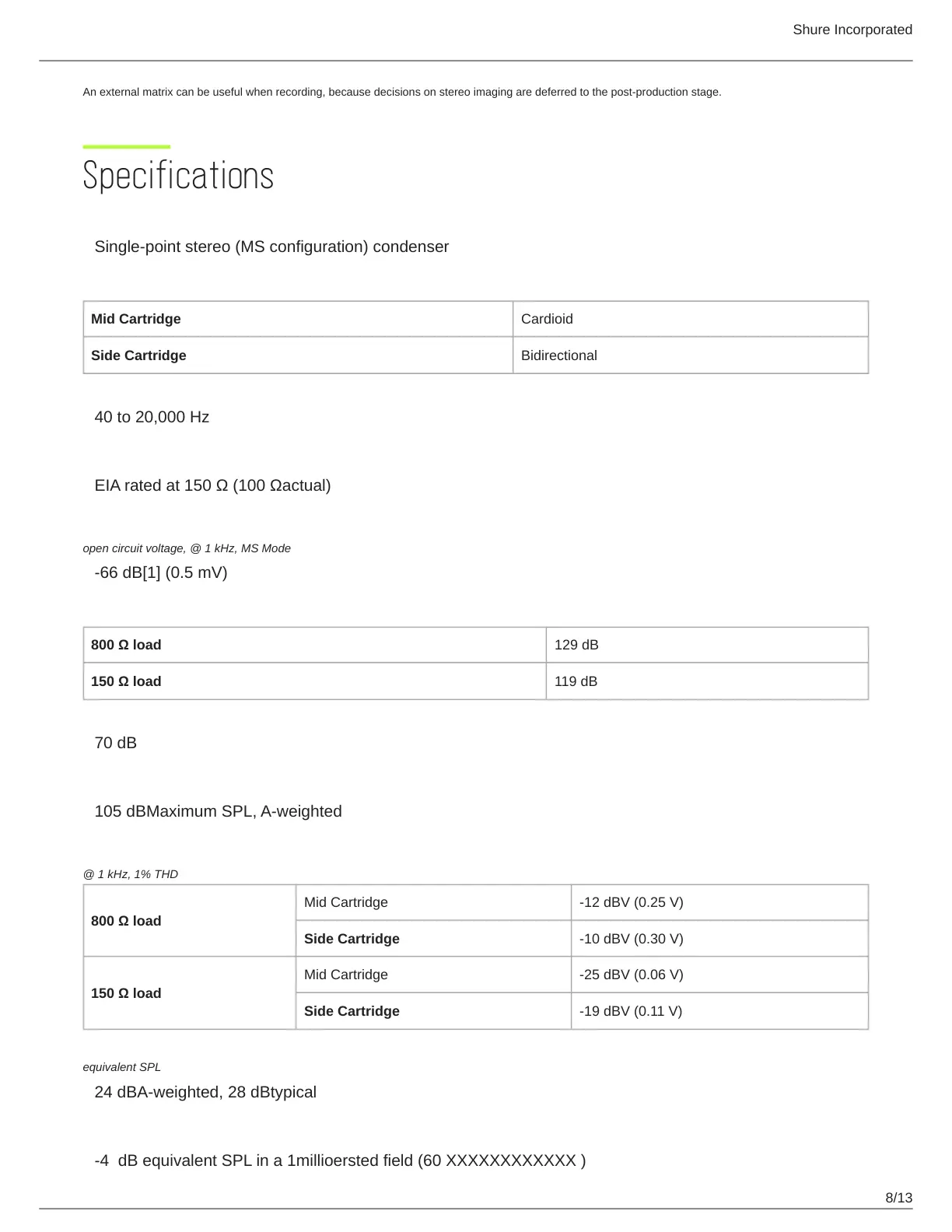

Specifications
Type
Single-point stereo (MS configuration) condenser
Polar Pattern
Mid Cartridge Cardioid
Side Cartridge Bidirectional
Frequency Response
40to20,000Hz
Output Impedance
EIAratedat150Ω(100Ωactual)
Sensitivity
open circuit voltage, @ 1 kHz, MS Mode
-66dB[1](0.5mV)
Maximum SPL
800 Ω load 129dB
150 Ω load 119dB
Signal-to-Noise Ratio[3]
70dB
Dynamic Range
105dBMaximumSPL,A-weighted
Clipping Level
@ 1 kHz, 1% THD
800 Ω load
Mid Cartridge -12dBV(0.25V)
Side Cartridge -10dBV(0.30V)
150 Ω load
Mid Cartridge -25dBV(0.06V)
Side Cartridge -19dBV(0.11V)
Self Noise
equivalent SPL
24dBA-weighted,28dBtypical
Hum Pickup
-4dBequivalentSPLina1millioerstedfield(60XXXXXXXXXXXX)
