www.Si
argo.com
MF57
00 User Man
ual
9
|
P
a
g
e
3.3
Power
and data cable
descrip
tion
Ta
b
le 3.2: MF5700 wire assi
gnment.
Figure 3.4: MF5700 cab
le (USB-C-100)
3.4

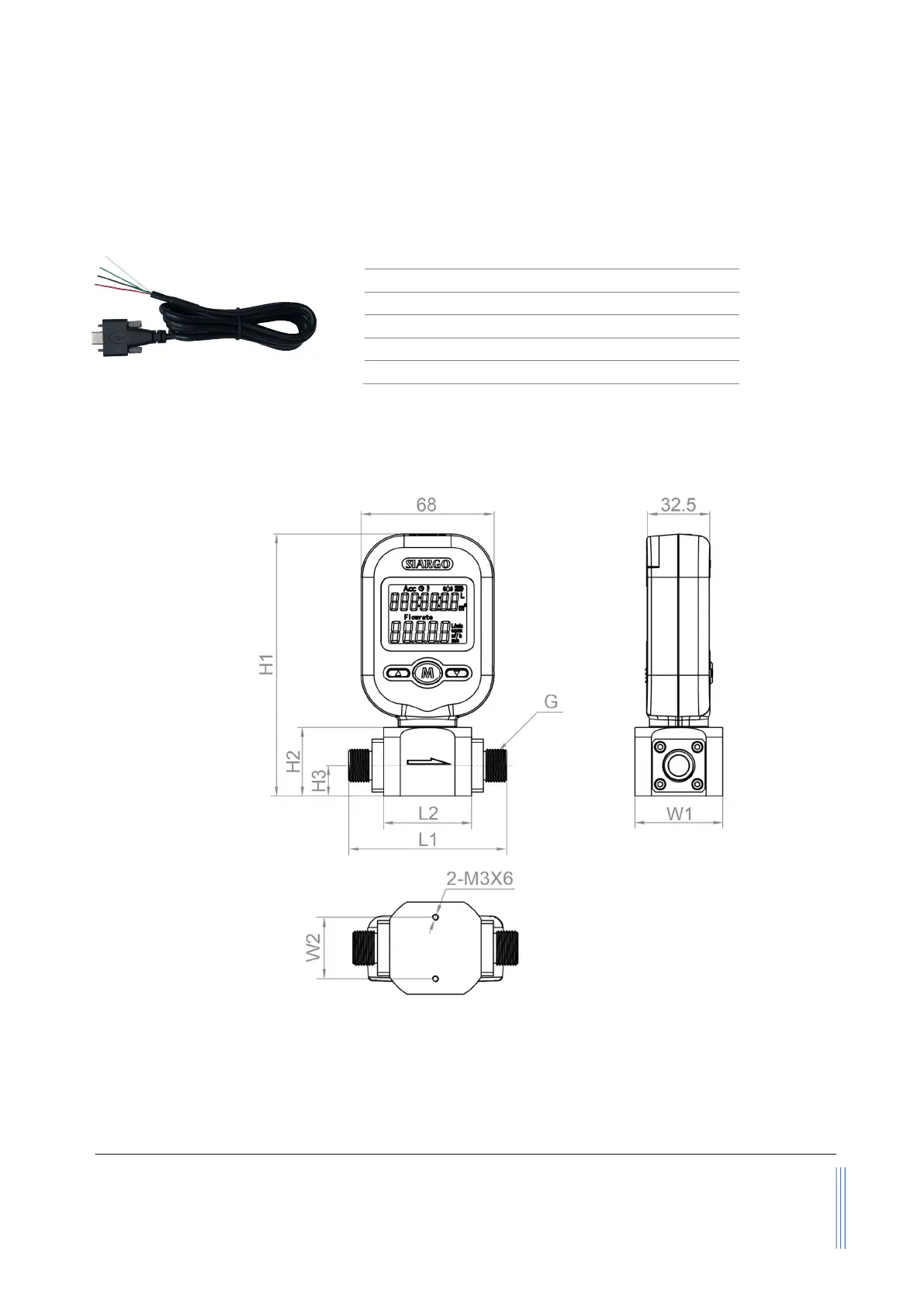

Mechanical d
imensions
Figure 3.5: MF5700 mete
r dimensions
Wire
Color
Definition
1
Red
Power supply (5~24 Vdc)
2
Black
GND,
gr
ound
3
Green
RS485A
4
White
RS485B
9
11
Table of Contents
Table of Contents
4
Overview
6
Receipt / Unpack of the Products
7
Knowing the Products
8
Product Description
8
LCD Description
9
Power and Data Cable Description
10
Mechanical Dimensions
10
Installation
12
Operation and MENU Description
15
Check the Product Specifications
15
Check the Leakage
15
Power the Meter and Digital Data Connection
15
Wireless Data Communication
16
Meter MENU Description
16
Starting the Measurement
17
MENU Entry with a Verified Password
17
Set the RS485 Modbus Address
18
Set the RS485 Communication Baud Rate
18
Reset or Calibrate the Offset
18
Gas Conversion Factor (GCF) for Different Gas Measurement
19
Select the Display Mode
19
Select the Display Language
20
Open/Close the Valve
20
Set an Alarm: Upper Instant Flow Rate Limit
20
Set an Alarm: Lower Instant Flow Rate Limit
21
Set an Alarm: Accumulated Flow Rate or Totalizer Limit
21
Change the Default Password
22
Reset the Accumulated or Totalized Flow Rate
22
Exit the MENU
22
Sleeping Mode
23
Wake up the Meter
23
MENU Key Sequence for the Settings
24
RS485 Modbus Communication Protocol
25
Hardware Connection
25
Communication Parameters
25
Frame
26
Function Codes
26
Registers
26
Product Selection and Order Information
30
Product Selection
30
Order Contact and Customer Support
30
Technical Specifications
31
Technical Notes for the Product Performance
32
Measurement Principle
32
Precautions for the Best Performance of the Product
32
Comparison with a Third Party Reference Meter
32
Particle Contamination and Fluidic Cleanness
33
Apply to a Different Gas Medium
33
Troubleshooting
34
Warranty and Liability
35
Service Contact
37
Appendix I: Product Evaluation Kit
38
Appendix II: Document History
39
4
