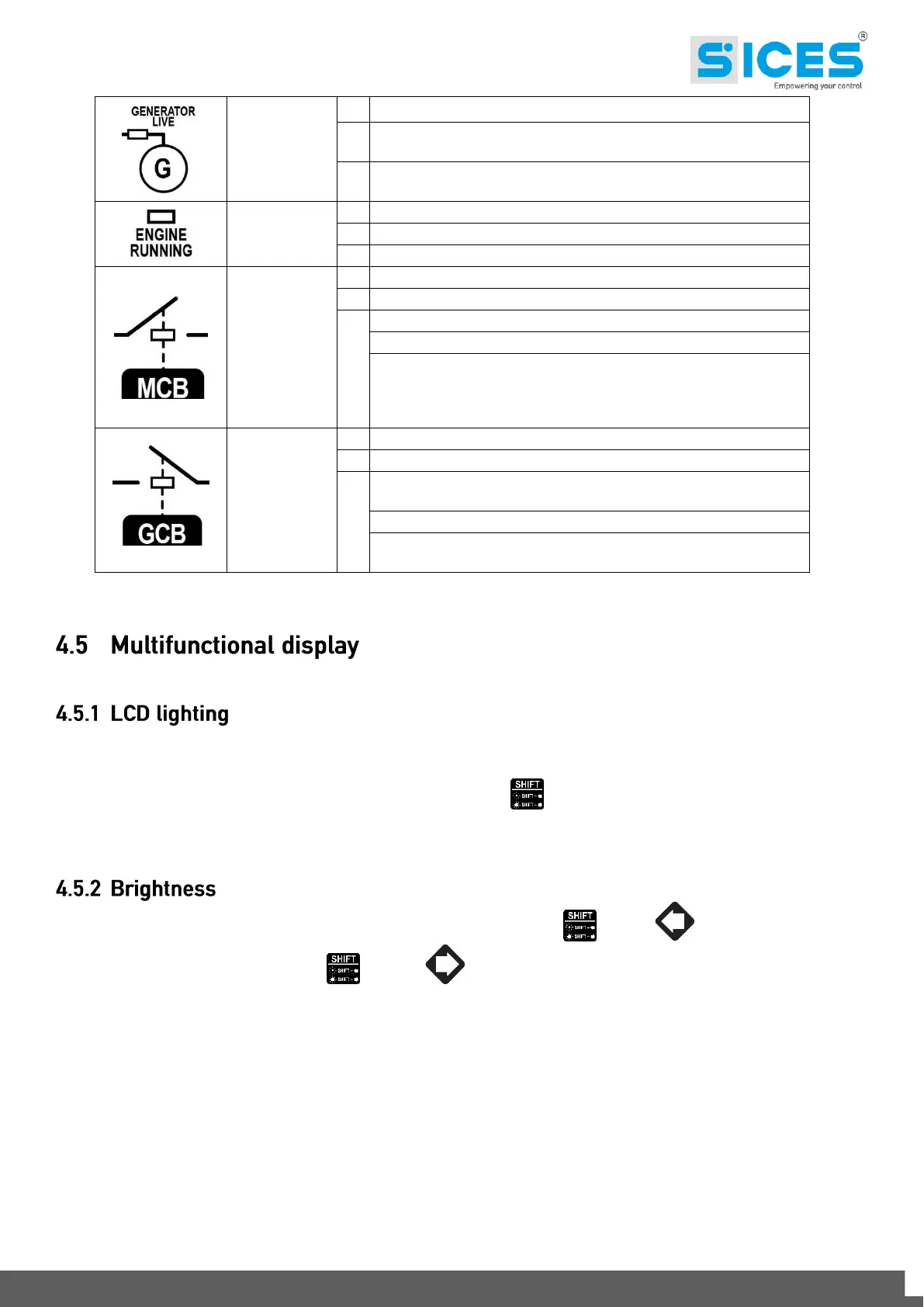

Sices DST4602 Evolution - 4.5 Multifunctional display; 4.5.1 LCD lighting; 4.5.2 Brightness

DST4602 User’s Manual 9
GENERATOR
LIVE

Generator voltage and frequency are not present.

Generator voltage and frequency are present and stead within
the tolerance range.

Flashes at 50% during transition between the previous two
states.
ENGINE
RUNNING

The engine is OFF.

The engine is running

Cooling phase
MCB

The MCB is open.

The MCB is closed

Flashes at 25% ON if open after a closing command.
Flashing at 75% ON if closed after an opening command.
Flashing at 50% in synchronization phase with BUS LIVE
indicator.
GCB

The GCB is open.

The GCB is closed

Flashing at 25% ON if the GCB is open after a closing
command.
Flashing at 75% ON if closed after an opening command.
Flashing at 50% in synchronization phase with BUS LIVE
indicator.
The backlight lamp is managed by the Gen-set control module, which switches off the backlight after a
programmable time (P.492) if no buttons are pressed in the meantime. Press any button to switch the
lamp ON again, (we recommend using the SHIFT button as it has no function when used alone).
This function can be disabled by setting parameter P.492 to 0.
The Brightness can be adjusted by pressing the SHIFT + LEFT buttons to decrease the
Backlight or the SHIFT +RIGHT buttons to increase it.
