Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350
The Genset Automatic Control Panel is a device which allows to manage the load supply from two
separate and independent sources of energy that are: the Mains and the Genset.
According to the nominal current, the switch Mains/Genset is carried oud by means of:
- Up to 125A (35 ÷ 80kVA): 2 4-pole contactors mechanically and electrically interlocked
- From 160A (100 ÷ 1580kVA): 1 4-pole motorized switch TECHNOELECTRIC

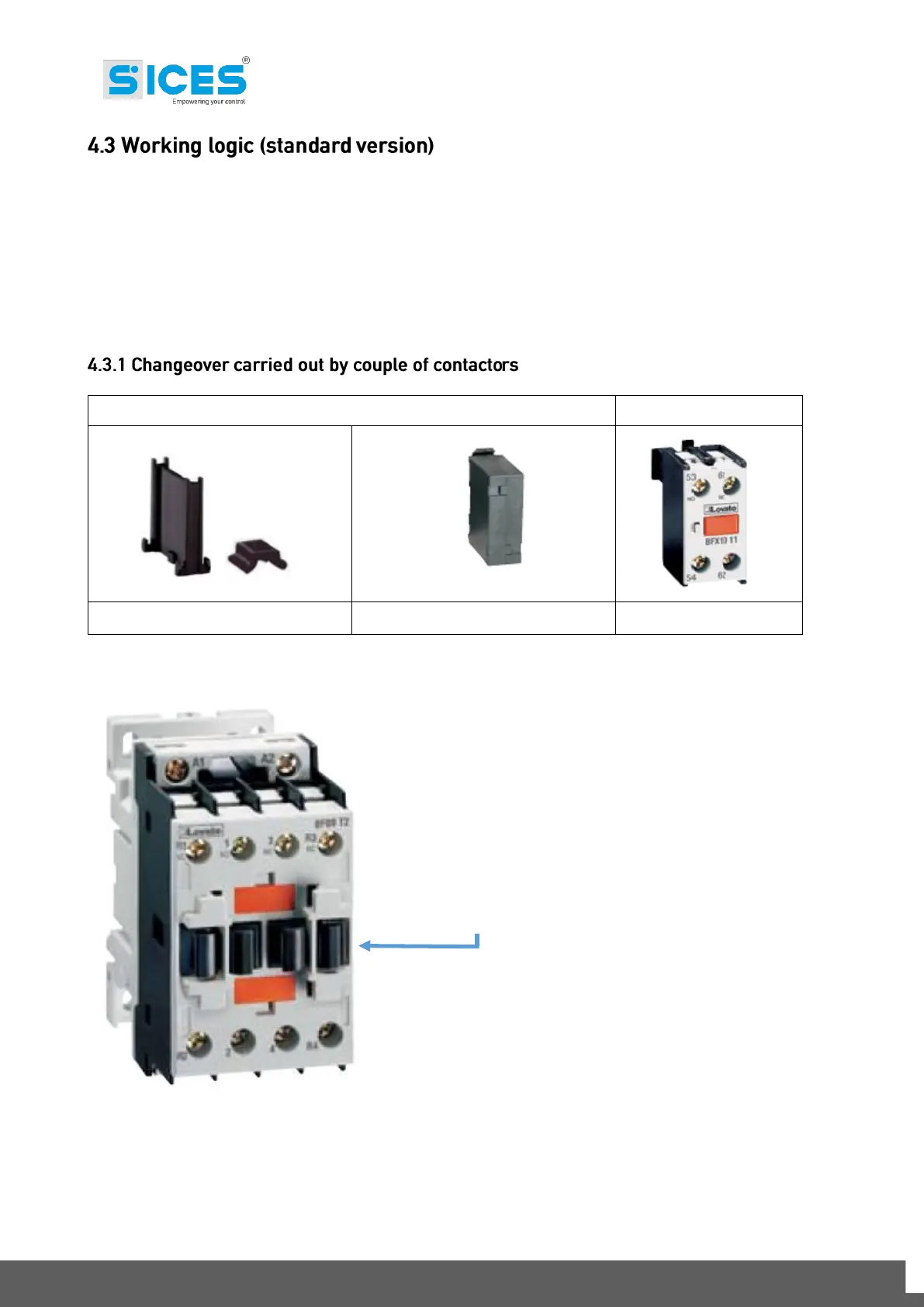

MECHANIC INTERLOCK
AUXILIARY CONTACTS
35-53kVA
70-80kVA
35-80kVA
The couple of contactors is mechanically interlocked by
means of the proper device. In order to guarantee a greater
security of the plant, the contactors position is electrically
interlocked by means of auxiliary contacts on the front of the
contactor (see table above).
This system ensures the insertion of one contactor at a time,
in order to avoid to supply the load by both sources
(mains/genset).
When the contactor is excited by the mechanic part, as
shown by the arrow, it comes back.
