Sices GC310 Use And Maintenance Manual

11
Use and maintenance Manual AUTOMATIC GENSET CONTROL PANEL with GC310/GC350

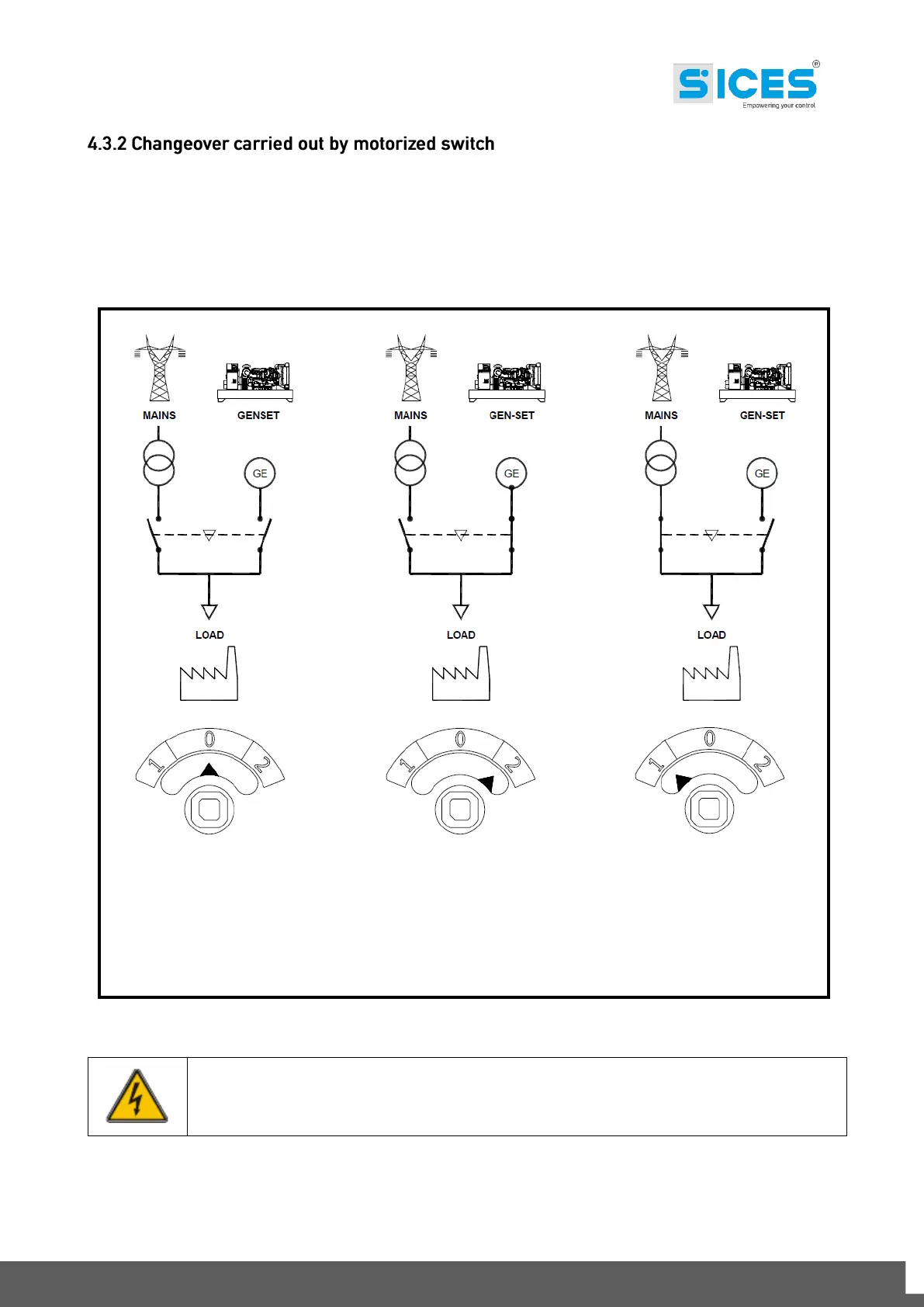

In the front of the motorized switch (100÷1580kVA) there is a mechanic position indicator that shows
the status of contacts, so the load status in respect to MAINS and GENSET. In the figure below, the
possible status are shown:
TECHNOELECTRIC
WARNING: check the cyclic direction of the phases MAINS and GROUP before
supplying the LOAD.
The reverse cyclic direction can cause serious damages to the machinery.
WITH INDICATOR
IN POSITION “0”
THE LOAD IS NOT
SUPPLIED BY ANY OF THE
TWO SOURCES
WITH INDICATOR
IN POSITION “2”
THE LOAD IS SUPPLIED
BY THE GENSET
WITH INDICATOR
IN POSITION “1”
THE LOAD IS SUPPLIED
BY THE MAINS
