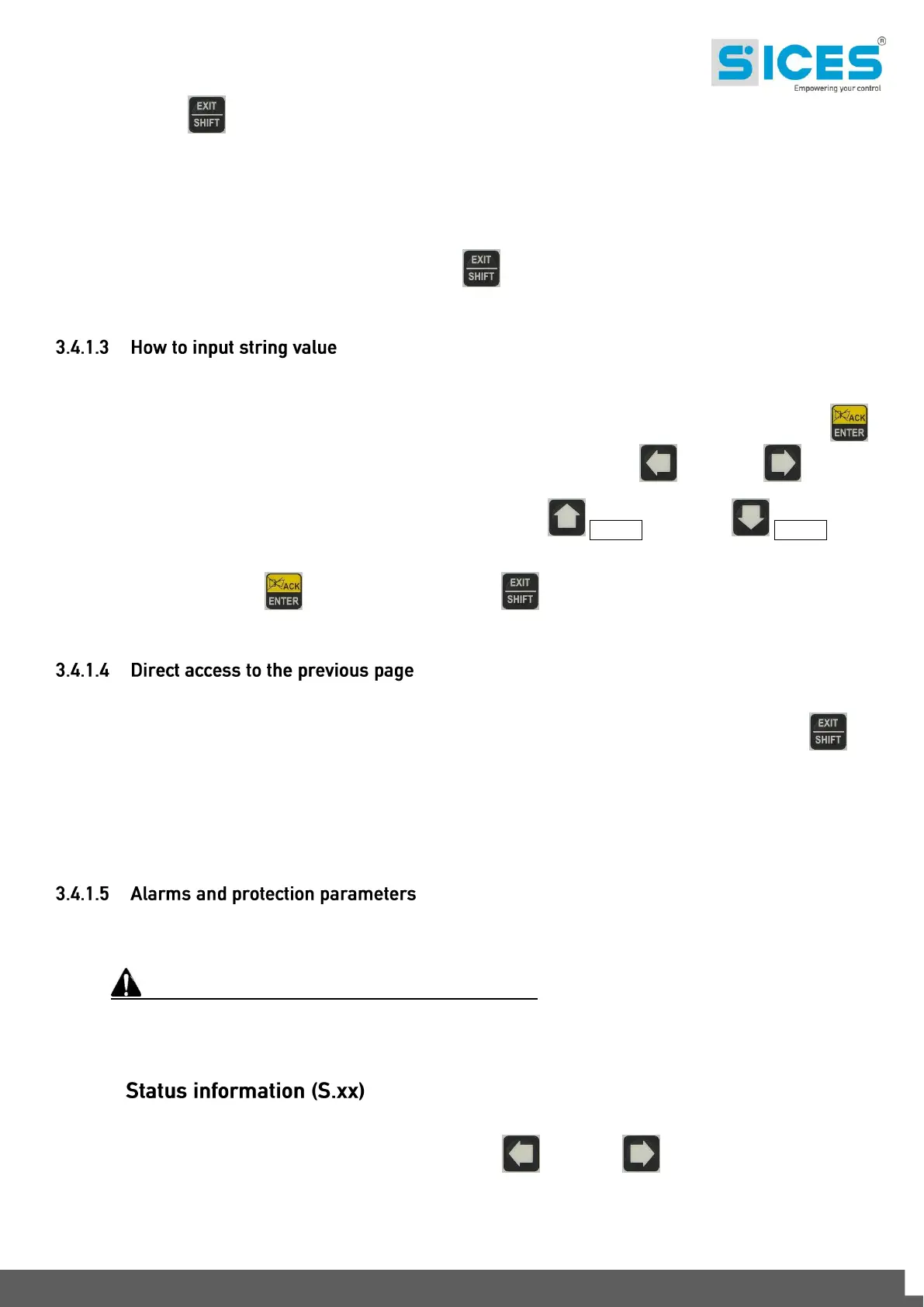

GC310, GC350, GC500, GC500Plus and GC500Mains User’s Manual 15
EXIT/SHIFT to cancel.
Operation mode needs to be set to "OFF/RESET" to modify the variables. Some variables can be modified also
using different modes other than “OFF/RESET".
If you cannot change a variable in any condition, this is shown as follows: <400> showing that the parameter
cannot be changed in this status.
To exit the programming menu, use the EXIT/SHIFT button.
For some parameters you will have to set a value for the string data.
In this case, the square brackets [ ] opening and closing the variable will blink after pressing ACK/ENTER
and a cursor will display under the first character of the string. Using the LEFT and RIGHT buttons,
you can select the character to be changed. Use the vertical UP Ref. 1a and DOWN Ref. 1a scroll
buttons to modify the selected character. Repeat the procedure for each character that needs changing.
Press the ACK/ENTER (confirm) button or the EXIT (abort) button to end the procedure.
You can directly open the last programming page displayed . This is possible if, when exiting programming
mode, instead of going back though the menus until you exit programming, you hold down EXIT/SHIFT
per circa 2 secondi.
It is also possible to obtain the same result entering programming mode after Gen-set automatically exited
programming. Gen-Set automatically exits programming mode either if no operation is performed in 60 seconds
or the lockable selector is switched to MAN or AUTO.
Protections and alarms can generally be configured using dedicated variables. Generally, the trip time can
also be configured.
Setting the trip time to 0 disables the protection.
3.4.2
In this way, information on the system status is provided.
You can scroll through the various pages using the LEFT and RIGHT buttons.
Page S.01 displays information on the system status. Part of this information is displayed in the bottom status
bar.
