5.3 Disassembly
Prerequisites
•
E
lectrician screwdriver (slotted screwdriver)
Approach

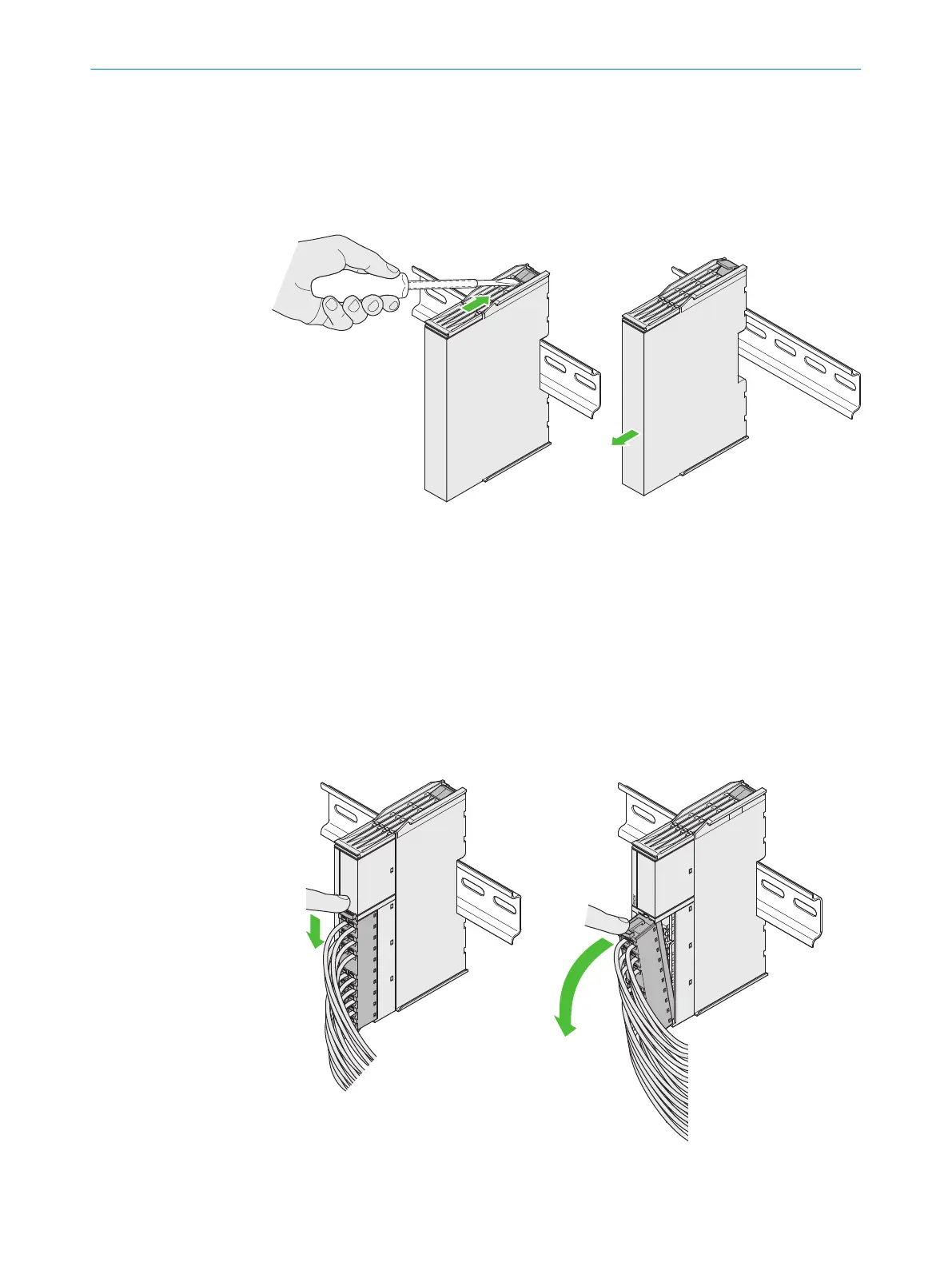

Figure 6: Disassembly
1.
Press the unlocking mechanism on the upper side of the module towards the back
using the electrician screwdriver.
2. Loosen module from the mounting rail.
5.4 Module exchange
Approach
1.
Disconnect module and the connected components from all voltage sources.
2. Take front connector with connected cables off the defective device: Press the
unlocking mechanism of the front connector downwards and pull out the front con‐
nector.
Figure 7: Dismantle front connector
