3. Dismantle the defective module.
4.
Mount new module.
5. Mount front connector with connected cables to the new module: First mount in
the module with bent hook and then engage in the housing.

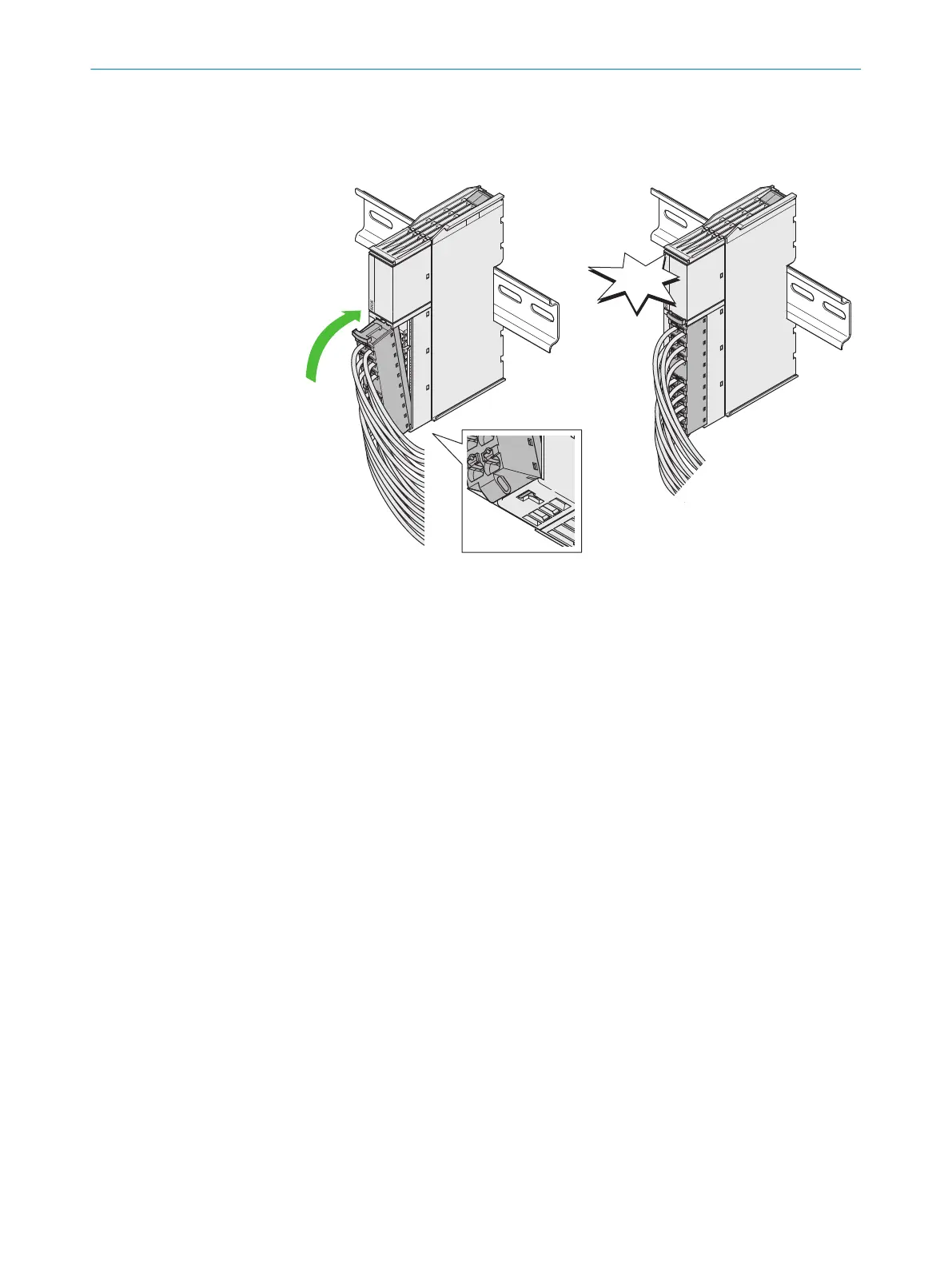

Figure 8: Mount the front connector
✓
T
he front connector engages with an audible click.
MOUNTING 5
