ETHERNET 1 - 4, FIELDBUS P1 - P2

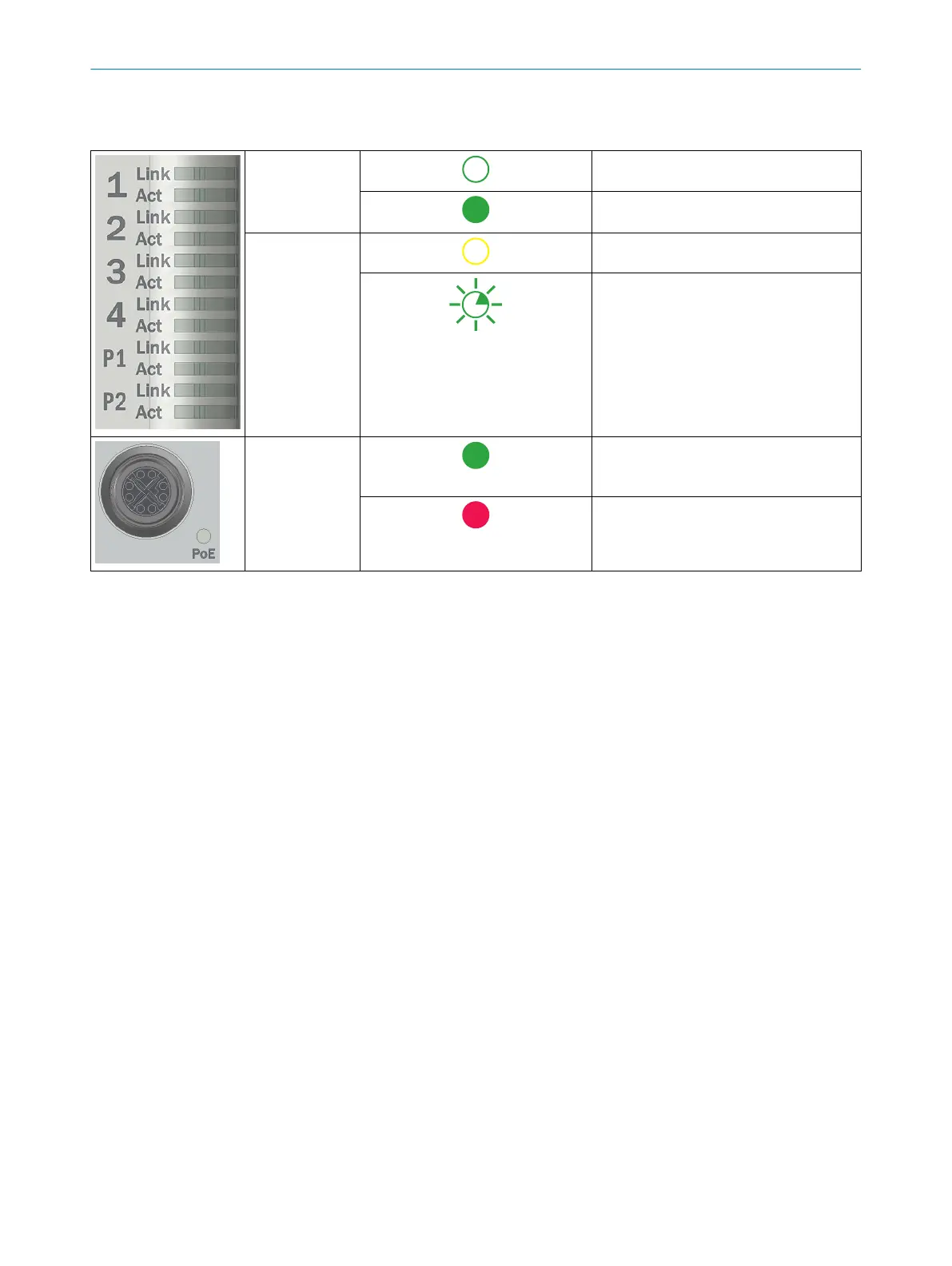

Table 19: ETHERNET and fieldbus status LEDs
Link Connection not established with Ethernet.
ETH1-ETH4 only. Connection established
with Ethernet.
Act No activity
Data transmission via Ethernet
PoE ETH1-ETH4:
Voltage supply via Ethernet.
ETH1-ETH4:
Fault in the supply line (overload, short-cir‐
cuit).
8 OPERATION
36
