2 Justierung des Tachoständers zum Rotorlagegeber (Rechtslauf)

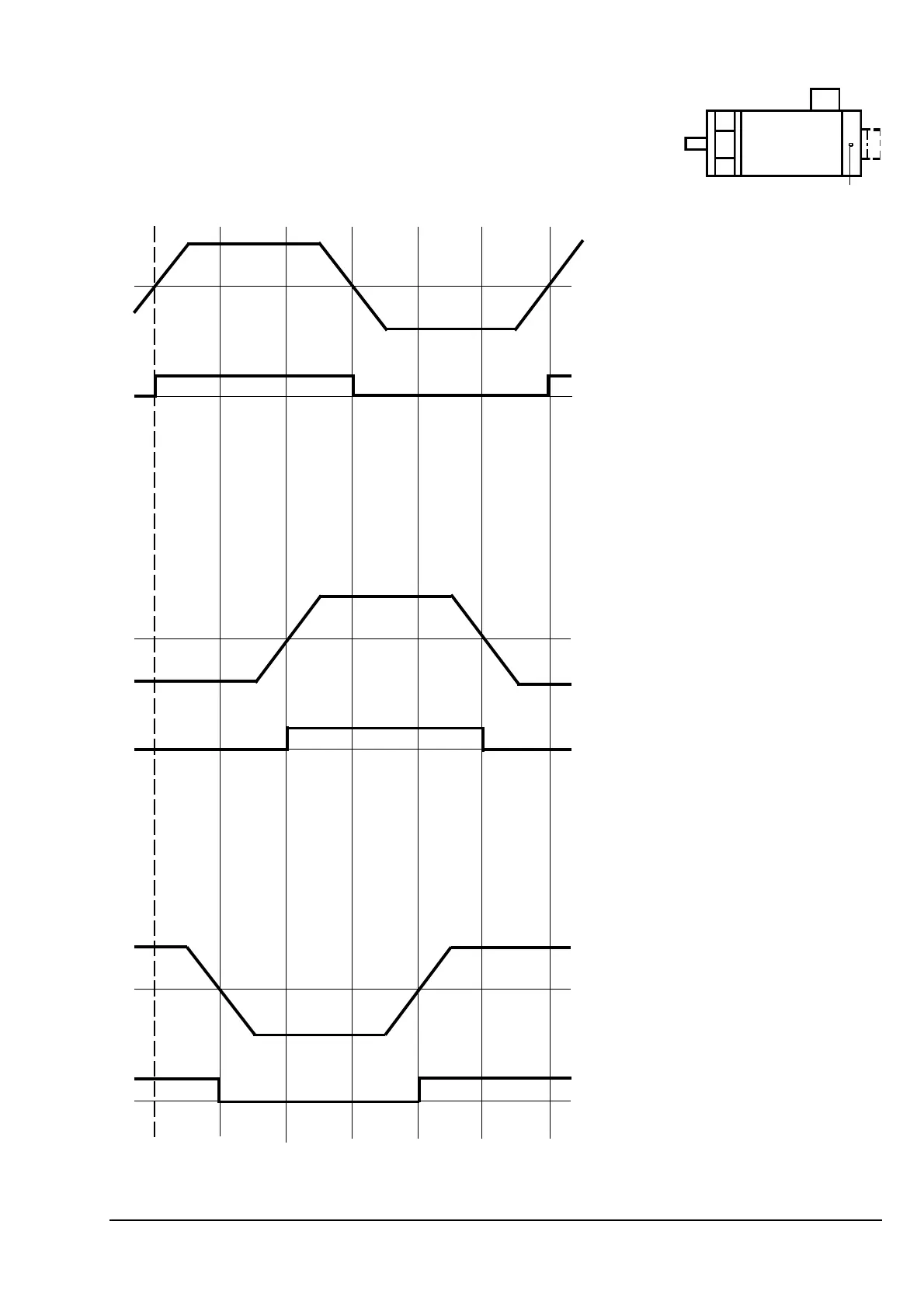

Adjusting the tachogenerator stator relative to the rotor position encoder
(clockwise rotation)
Alle Signale gegen M15 (Klemme 15 - Umrichter SIMODRIVE 6SC61.) gemessen
All signals measured at M15 (terminal 15 on SIMODRIVE 6SC61. converter)
Schranke T
Encoder T
Fig. 111.2
Tacho Phase T
Tachogenerator phase T
Schranke S
Encoder S
Tacho Phase R
Tachogenerator phase R
Schranke R
Encoder R
0
Low
High
Low
High
Low
High
Tacho Phase S
Tachogenerator phase S
X.311:2 (1. Achse / 1st axis)
X.321:2 (2. Achse / 2nd axis)
X.331:2 (3. Achse / 3rd axis)
X.311:9 (1. Achse / 1st axis)
X.321:9 (2. Achse / 2nd axis)
X.331:9 (3. Achse / 3rd axis)
X.311:1 (1. Achse / 1st axis)
X.321:1 (2. Achse / 2nd axis)
X.331:1 (3. Achse / 3rd axis)
X.311:8 (1. Achse / 1st axis)
X.321:8 (2. Achse / 2nd axis)
X.331:8 (3. Achse / 3rd axis)
X.311:3 (1. Achse / 1st axis)
X.321:3 (2. Achse / 2nd axis)
X.331:3 (3. Achse / 3rd axis)
