1 Justierung des Rotorlagegebers zur Motorständerwicklung (Rechtslauf)
Adjusting the rotor position encoder relative to the motor stator winding (clockwise rotation)
Schranke S
Masse der Meßleitung an M15
Position encoder S
Signal earth, measuring lead to M15
EMK V-W
Masse der Meßleitung an W
EMF V-W
Signal earth, measuring lead to W
EMK U-V
Masse der Meßleitung an V
EMF U-V
Signal earth, measuring lead to V
EMK W-U
Masse der Meßleitung an U
EMF W-U
Signal earth, measuring lead to U
M15 = Klemme15 am Umrichter SIMODRIVE 6SC61.
M15 = terminal 15 on SIMODRIVE 6SC61. converter

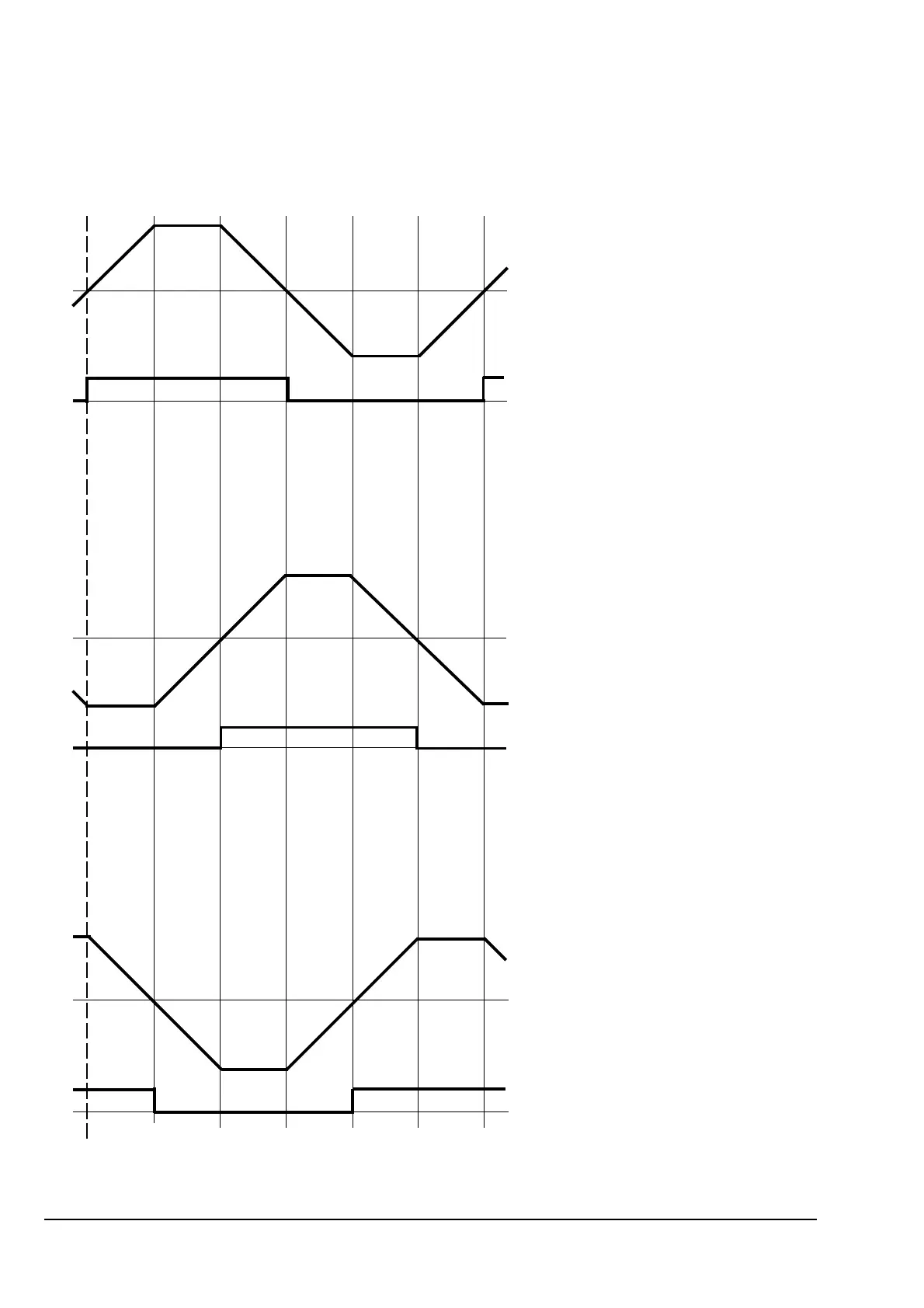

Fig. 111.1
0
Low
High
Low
High
Low
High
Schranke R
Masse der Meßleitung an M15
Position encoder R
Signal earth, measuring lead to M15
Schranke T
Masse der Meßleitung an M15
Position encoder T
Signal earth, measuring lead to M15
X.311:8 (1. Achse / 1st axis)
X.321:8 (2. Achse / 2nd axis)
X.331:8 (3. Achse / 3rd axis)
X.311:9 (1. Achse / 1st axis)
X.321:9 (2. Achse / 2nd axis)
X.331:9 (3. Achse / 3rd axis)
X.311:7 (1. Achse / 1st axis)
X.321:7 (2. Achse / 2nd axis)
X.331:7 (3. Achse / 3rd axis)
EMK=Elektromotorische Kraft /
EMF = electromotive force
