ENGLISH
20 610.40 075.21 Siemens AG

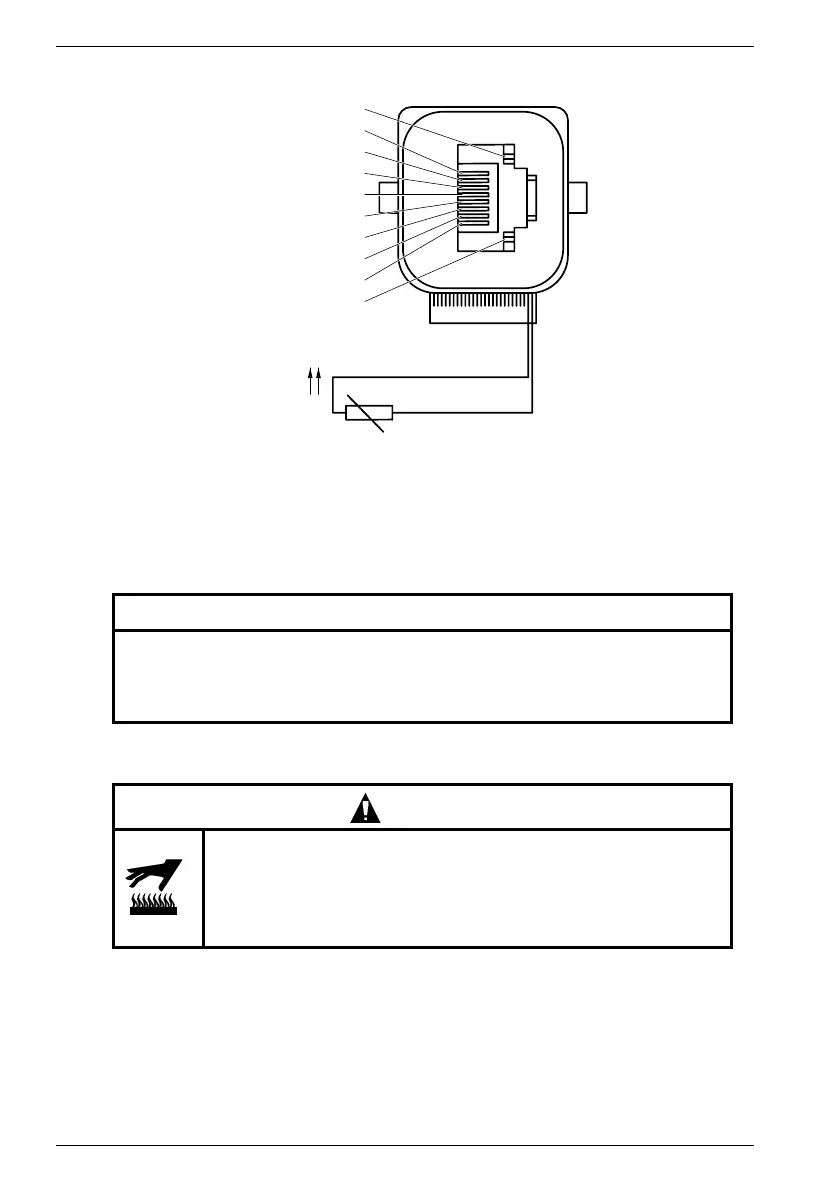

Fig. 8 Pin assignment of DRIVE-CLiQ
Cable outlet direction:
The sensor module is mounted on the motor instead of the signal connector. It can be turned
through about 270° or 180°. The turning range is shown in the following illustrations. The
typical twisting torque is 4...8 Nm. The sensor module may only be turned by hand. Pipe
wrenches, hammers and the like must not be used.
6 Commissioning
CAUTION
Improper change of the cable output direction leads to damage to the
connecting cables. The permissible twisting range must not be exceeded.
Only a maximum of ten changes to the rotational angle of the sensor module
are permitted within the rotational range.
CAUTION
Thermal hazard from hot surfaces!
The temperatures of motor surfaces can reach more than 100 °C
(212 °F). Do not touch hot surfaces!
Protection must be provided against accidental contact if necessary.
Temperature-sensitive components (electric lines, electronic
components) must not touch hot surfaces.
SLQ,QSXW
(QFRGHU
'5,9(&/L4,QWHUIDFH
5
5
:+
%1
-
.7<
5-B5;1
09
5-B;53
5-B7;1
5-B7;3
39
