Siemens AG 610.40 075.21 19
5.3 Motors with DRIVE-CLiQ interface
Motors for the SINAMICS S120 drive system are equipped with a sensor module (electronic
module) which contains the encoder and temperature evaluation and an electronic rating
plate. This sensor module is mounted instead of the signal connector, and has a 10-pole
RJ45plus socket that is known as the DRIVE-CLiQ interface. The pin assignment is
independent of the encoder inside the motor.

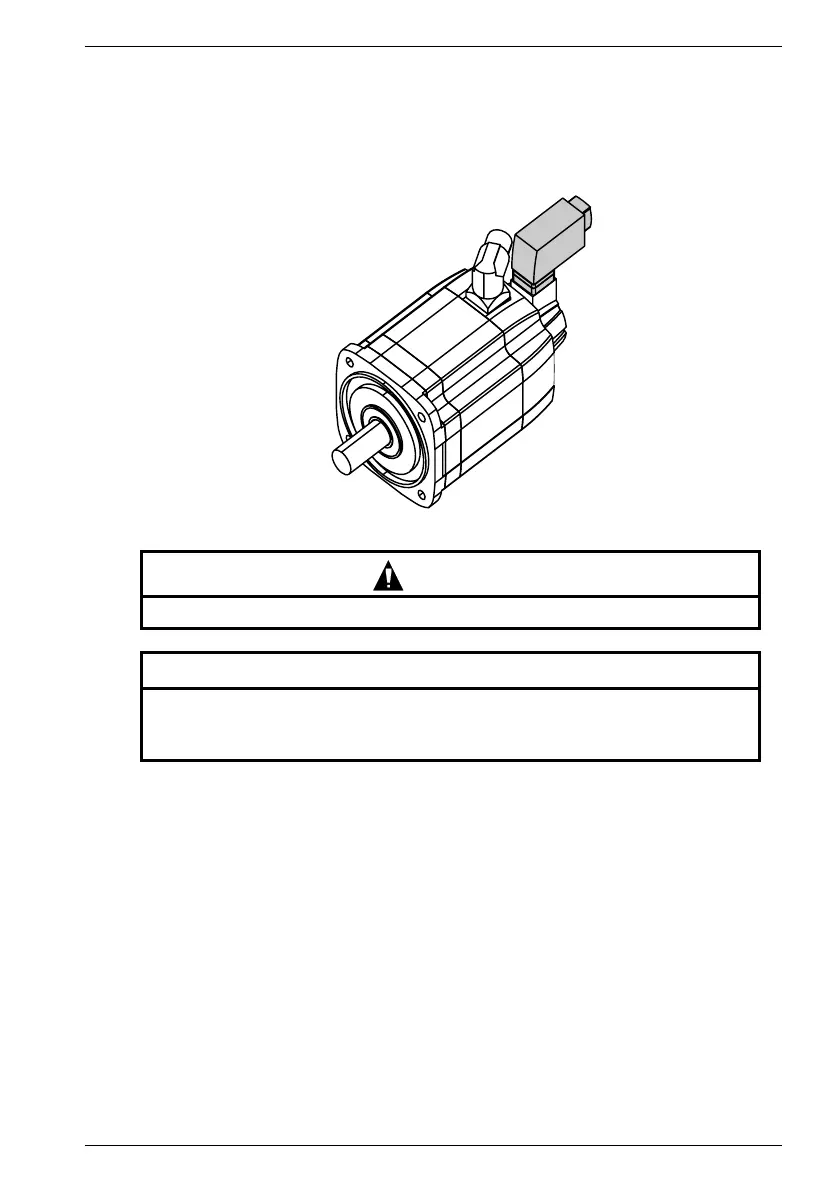

Fig. 7 Motor with sensor modul (example)
The signal link between motor and converter is made by a DRIVE-CLiQ cable MOTION-
CONNECT. Only SIEMENS pre-assembled cables may be used. These cables reduce the
assembly time and increase operational safety.
The plug of the DRIVE-CLiQ cable must be pushed on until the catch springs slot in, pay
attention to the plug coding.
WARNING
The motor must not be lifted or transported by the sensor module.
CAUTION
The sensor module has direct contact to electrostatically sensitive devices
(ESD). Do not touch the connections with your hands or tools which could be
electrostatically charged!
